Description

Price

1

HUB CMPL,FR WHE | Includes Item(s) 2 This part replaces 54110-38F00.

54110-38F20

$106.97

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, FRONT WHEEL (12X6.5AT) (SILVER)

55311-03G00-12Z

Unavailable

4

NUT

09140-10021

$2.03

5

WASHER

64723-09F00

$13.35

6

NUT, HUB | MODEL K2

09141-18008

$8.37

6

NUT, HUB | MODEL K3

09141-18010

$10.11

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

DISC,FRONT BRAKE This part replaces 59211-38F00.

59211-38F20

$46.75

10

BOLT, BRAKE DISC

09106-08155

$3.76

11

COVER, FRONT DISC This part replaces 59231-38F00.

59231-38F01

$14.07

12

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

13

TIRE COMP,FRONT This part replaces 55110-03G00.

55110-03G20

$541.40

14

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

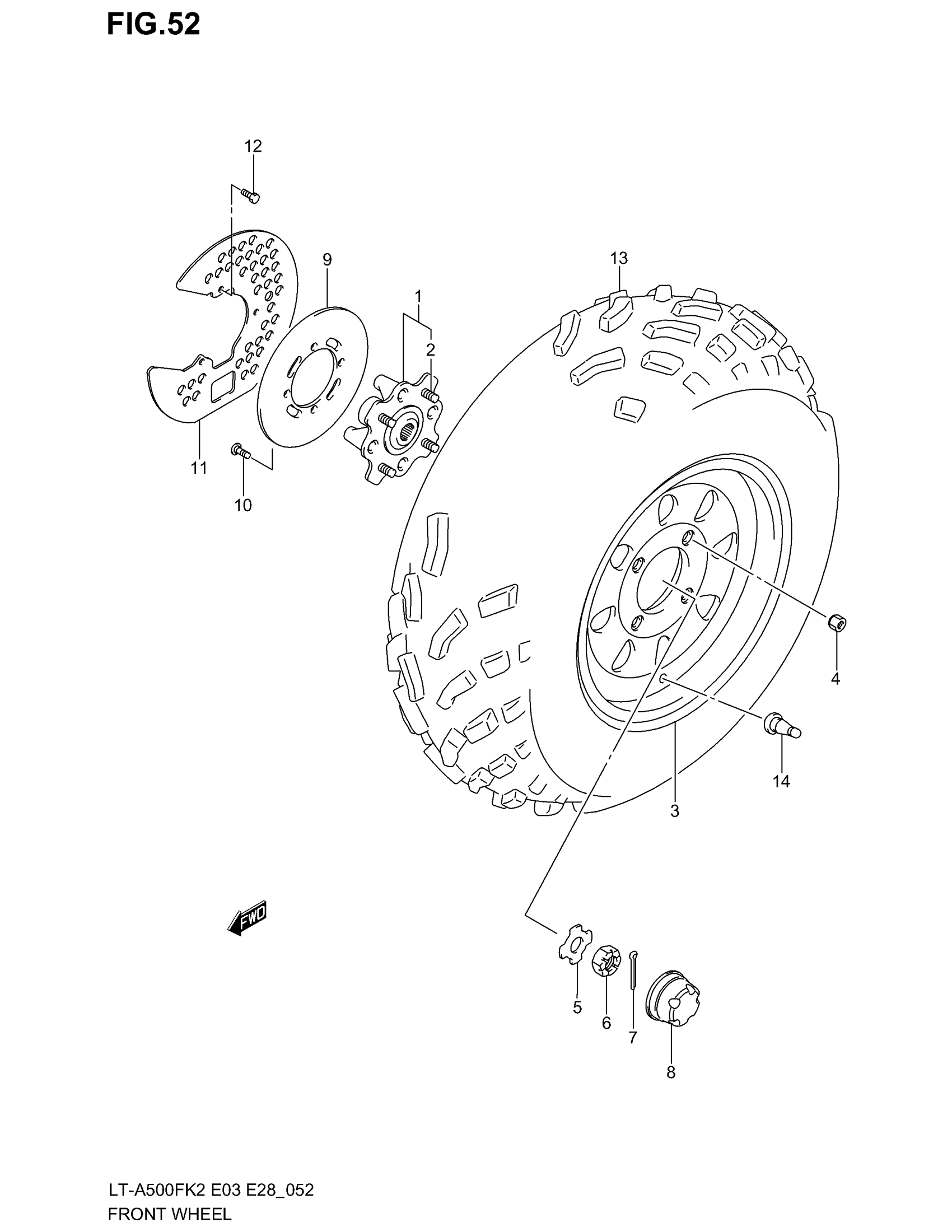

Suzuki LT-A500F (2003) FRONT WHEEL Diagram
