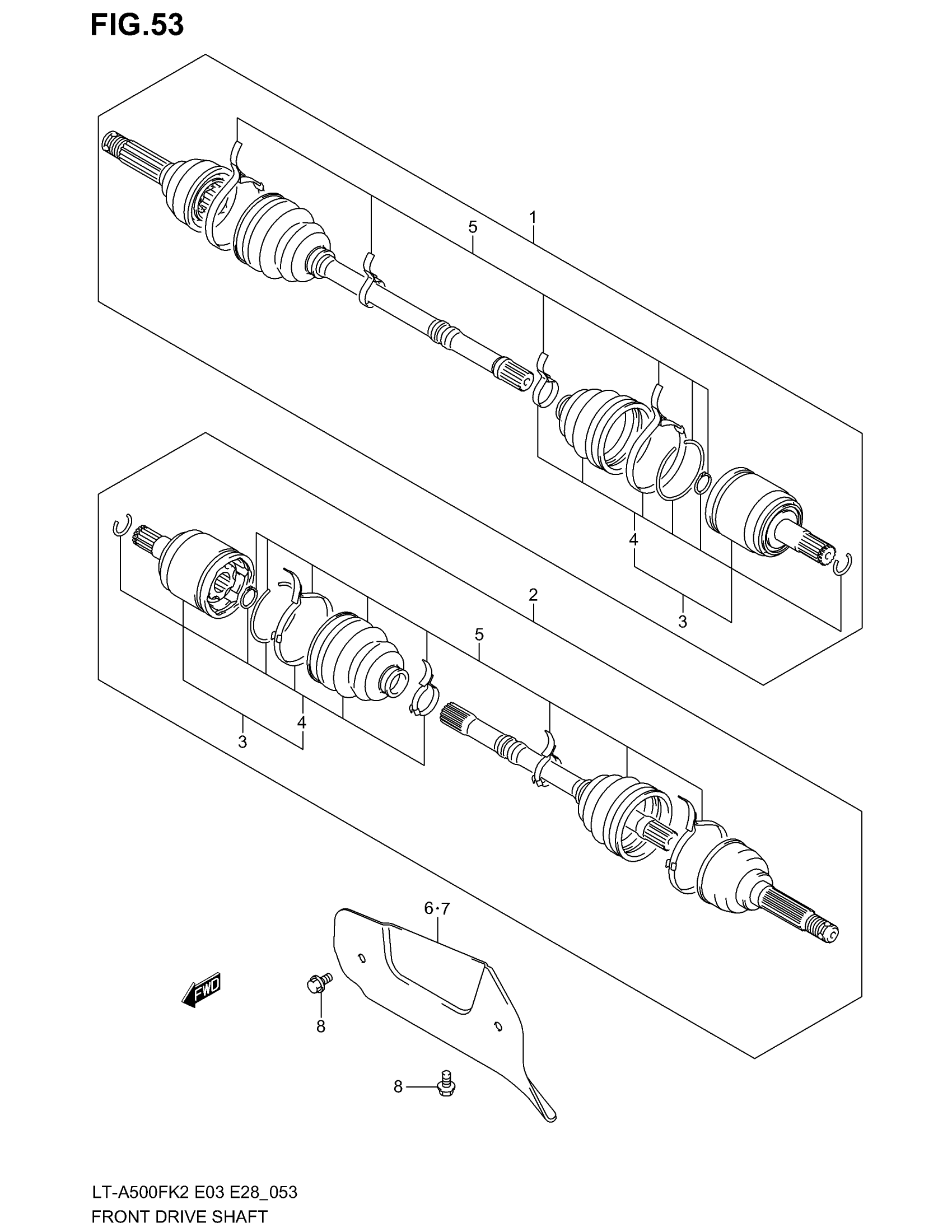

Suzuki LT-A500F (2003) FRONT DRIVE SHAFT Diagram

#

Description
Price

1

SHAFT ASSY,FRON | MODEL K2 This part replaces 54901-03G00.

54901-03G01

Unavailable

1

SHAFT ASSY,FRT | MODEL K3 This part replaces 54901-03G10.

54901-03G23

$343.08

2

NO DESCRIPTION AVAILABLE | MODEL K2 This part replaces 54902-03G00.

54902-03G01

Unavailable

2

SHAFT ASSY,FRT | MODEL K3; Includes Item(s) 3 - 5 This part replaces 54902-03G10.

54902-03G23

Unavailable

3

JOINT SET | MODEL K2 This part replaces 54933-38F00.

54933-38F01

$197.33

3

JOINT SET | MODEL K3 This part replaces 54933-38F10.

54933-38FV0

$343.95

4

BOOT SET,INNER | MODEL K2 This part replaces 54931-19B20.

54931-19B21

Unavailable

4

BOOT SET,INNER | MODEL K3 This part replaces 54931-38F10.

54931-38FV0

$68.90

5

BOOT SET,OUTER | MODEL K2 This part replaces 54930-19B20.

54930-19B21

Unavailable

5

BOOT SET, OUTER | MODEL K3

54930-38F10

$96.22

6

PROTECTOR,FRONT DRIVE SHAFT,R This part replaces 54903-38F00.

54903-27H01

$14.05

7

PROTECTOR,FR D/ This part replaces 54904-38F00.

54904-27H00-291

$16.05

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
