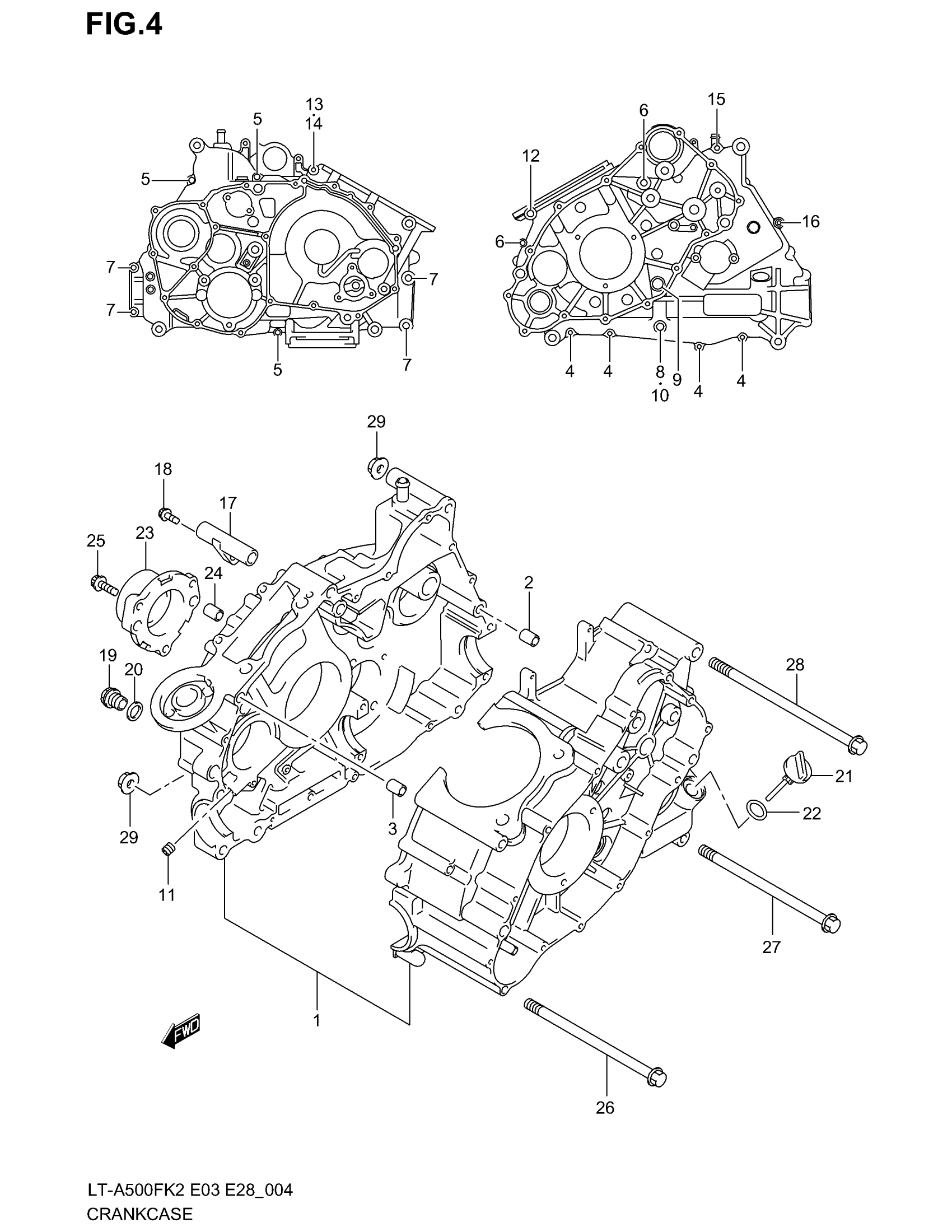

Suzuki LT-A500F (2003) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K2 This part replaces 11301-03810.

11301-03812

$2,232.13

1

CRANKCASE SET | MODEL K3; Includes Item(s) 2 - 16 This part replaces 11301-03811.

11301-03812

$2,232.13

2

PIN

04211-13189

$2.19

3

PIN

04211-11169

$1.78

4

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

5

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

6

BOLT This part replaces 01547-06753.

01547-0675B

$3.93

7

BOLT (8X50)

09103-08081

$3.72

8

BOLT (8X60) This part replaces 09103-08345.

09103-08217

$3.72

9

BOLT, LH (8X105)

09103-08179

Unavailable

10

GASKET (8.2X14X1)

09168-08016

$1.65

11

PLUG This part replaces 09246-05006.

09246-04009

$4.25

12

BOLT, LH (8X137)

09103-08297

$8.35

13

BOLT, RH (8X125)

09103-08182

$5.72

14

GASKET (8.2X14X1)

09168-08016

$1.65

15

BOLT (L:120)

09103-06255

Unavailable

16

.BOLT This part replaces 01547-06953.

01547-0695B

$3.37

17

PIPE, BREATHER

11317-09F50

Unavailable

18

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

19

PLUG, OIL PRESSURE

09247-14015

$4.45

20

GASKET, OIL PRESSURE PLUG

09168-14002

$2.26

21

GAUGE,OIL LEVEL

11971-09F50

$9.78

22

O RING, OIL LEVEL GAUGE

09280-17003

$1.65

23

HOUSING, SECONDARY SHAFT BEARING

11313-09F60

Unavailable

24

PIN

04211-13189

$2.19

25

BOLT | MODEL K2 This part replaces 07120-08303.

07120-0830A

$3.86

25

BOLT | MODEL K3

09106-08121

$3.16

26

BOLT (10X180)

09103-10053

$11.48

27

BOLT (10X180) REAR LOWER

09103-10053

$11.48

28

BOLT (10X205) REAR UPPER

09103-10145

$17.09

29

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
