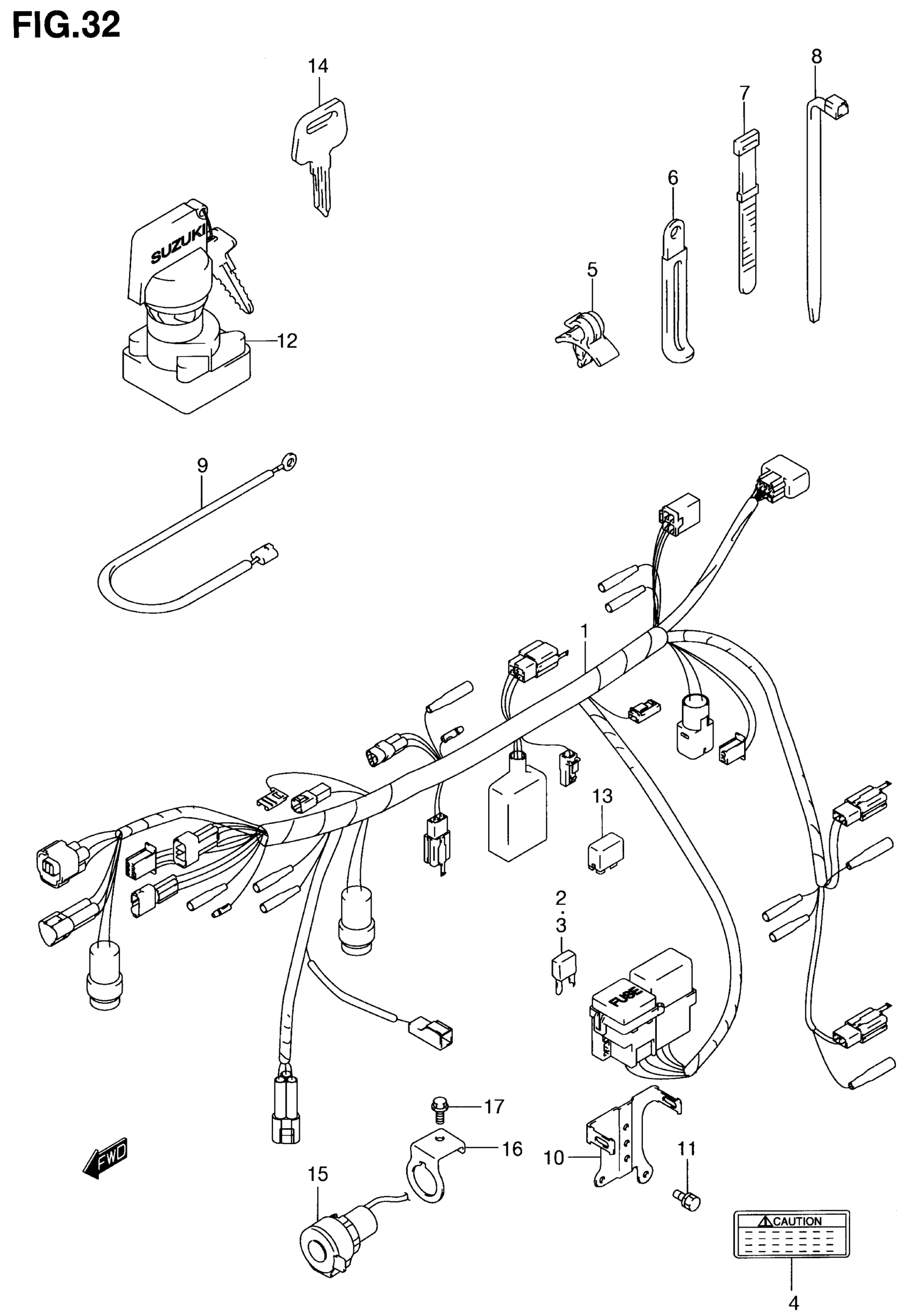

Suzuki LT-A500F (2001) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | MODEL Y

36610-09F30

Unavailable

1

WIRING HARNESS | MODEL K1; Includes Item(s) 2 - 3

36610-09FC0

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (20A)

09481-20501

Unavailable

4

LABEL, CAUTION MAX AMP

38852-09F00

Unavailable

4

LABEL, CAUTION MAX AMP | MODEL K1 This part replaces 38852-09F20.

38852-09F21

$7.53

4

LABEL, CAUTION MAX AMP | MODEL Y E28

38852-09FA0

Unavailable

4

LABEL, CAUTION MAX AMP | MODEL K1 E28 This part replaces 38852-09FB0.

38852-09F21

$7.53

5

CLAMP

09403-16307

$2.53

6

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

7

CLAMP

09407-12402

$3.04

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:165)

09407-18402

$2.19

9

WIRE, IGNITION COIL

36851-05D00

$5.82

10

BRACKET, FUSE BOX

36744-09F00

Unavailable

11

BOLT (5X10)

09117-05001

Unavailable

12

SWITCH ASSY,IGN This part replaces 37110-09F00.

37110-05G02

$111.90

13

RELAY,NEUTRAL START

38730-09F00

$46.55

14

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

14

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

14

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

14

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

15

TERMINAL, POWER SOURCE | MODEL Y

38850-09F00

Unavailable

16

BRACKET, POWER SOURCE | MODEL Y

38855-09F00

Unavailable

17

BOLT | MODEL Y This part replaces 01550-06103.

01550-0610A

$1.97
