2001 Suzuki LT-A500F Transmission Diagram

← All diagrams

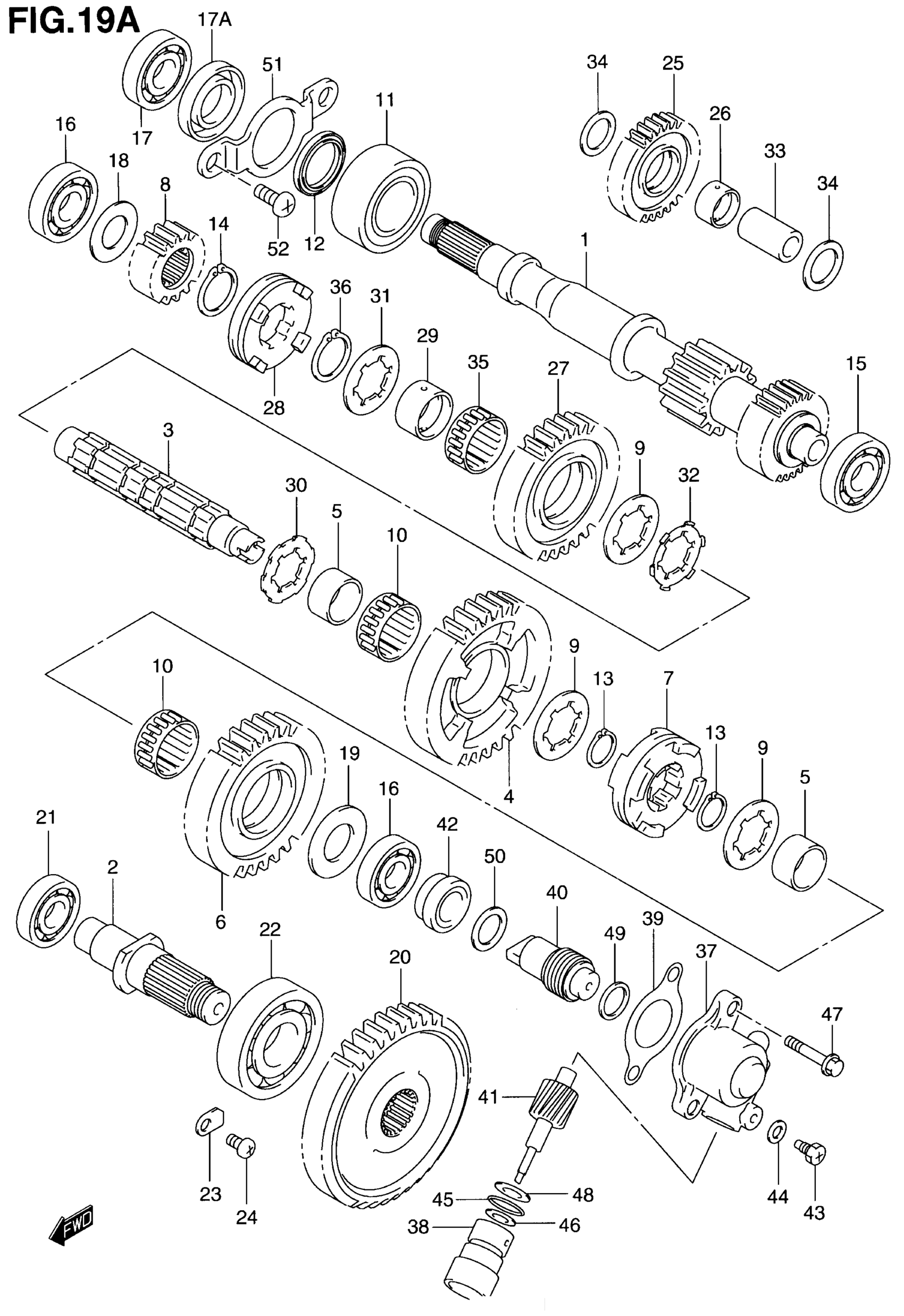

Find the part on the Transmission diagram for your 2001 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-A500F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, DRIVE | NT:16/24

29111-09F60

1
Out of stock

2

SHAFT, SUB T/M OUTPUT

29121-09F50

1
Out of stock

3

SHAFT, SUB T/M COUNTER

29131-09F50

1
Out of stock

4

GEAR, SUB T/M DRIVEN LOW | NT:40 This part replaces 29311-09F50.

29311-09F51

1
Out of stock

5

BUSH, SUB T/M DRIVEN

29315-09F51

2
Out of stock

6

GEAR, SUB T/M DRIVEN HI | NT:33

29321-09F51

1
Out of stock

7

DOG, SLIDING

29331-09F60

1
Out of stock

8

GEAR, SUB T/M DRIVE NO.2 | NT:16

29411-09F50

1
Out of stock

9

WASHER, DRIVEN GEAR

09167-25017

3
Out of stock

10

BEARING, SUB T/M GEAR | 30X35X12

09263-30018

2
Out of stock

11

1

$129.92

In stock

12

SEAL, DRIVE SHAFT | 30X44X7 This part replaces 29112-09F50.

12281-87J00

1
Out of stock

13

SNAP RING

09380-25003

2
Out of stock

14

SNAP RING

09380-25003

1
Out of stock

15

BEARING, DRIVE SHAFT LH | 20X47X14

09262-20069

1
Out of stock

16

BEARING, COUNTER SHAFT | 20X52X15

09262-20073

2
Out of stock

17

BEARING, DRIVE SHAFT

09262-17048

1

$60.00

In stock

17A

SEAL, DRIVE SHAFT RH

24754-09F50

1

$12.12

In stock

18

WASHER, DRIVE GEAR RH

08211-20361

1
Out of stock

19

WASHER, DRIVE GEAR

08211-20401

1
Out of stock

20

1

$170.02

In stock

21

BEARING, OUTPUT SHAFT | 20X52X15

09262-20073

1
Out of stock

22

BEARING, OUTPUT SHAFT

09262-25127

1

$110.43

In stock

23

RETAINER, BEARING

24741-21A00

2
Out of stock

24

SCREW This part replaces 02112-06123.

02112-0612A

2
Out of stock

25

GEAR, REVERSE IDLE

24561-09F50

1
Out of stock

26

BUSH, REVERSE IDLE GEAR This part replaces 24562-09F50.

29222-44D00

1
Out of stock

27

GEAR, REVERSE DRIVEN | NT:32

24571-09F60

1
Out of stock

28

DOG, REVERSE GEAR

24581-09F60

1
Out of stock

29

BUSH, REV DRIVEN GEAR

29315-09F51

1
Out of stock

30

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

31

WASHER, REV DRIVEN GEAR

09167-25017

1
Out of stock

32

WASHER, LOCK

09169-25001

1
Out of stock

33

1

$19.02

In stock

34

WASHER, REV IDLE GEAR | 20X30X1.0

09181-20195

2
Out of stock

35

BEARING, REV DRIVEN GEAR | 30X35X12.8

09263-30018

1
Out of stock

36

SNAP RING

09380-25003

1
Out of stock

37

1

$71.65

In stock

38

SLEEVE

26442-19B00

1

$45.52

In stock

39

GASKET

26451-19B12

1

$4.70

In stock

40

GEAR, DRIVE | NT:4

26461-09F50

1
Out of stock

41

GEAR, DRIVEN | NT:15

26471-09F50

1
Out of stock

42

SPACER, DRIVEN GEAR

26481-19B00

1
Out of stock

43

1

$2.96

In stock

44

WASHER, DRIVEN | 6.2X11X1.2

09168-06004

1
Out of stock

45

1

$3.98

In stock

46

1

$8.21

In stock

47

BOLT, GEAR SLEEVE

09103-06201

2
Out of stock

48

WASHER, DRIVEN GR

08211-08151

1

$1.42

In stock

49

WASHER, DRIVE GR

08211-15201

1

$2.58

In stock

50

WASHER, DRIVE GR RH

08211-17241

1

$2.92

In stock

51

1

$6.16

In stock

52

SCREW, RETAINER

09126-06011

2
Out of stock
