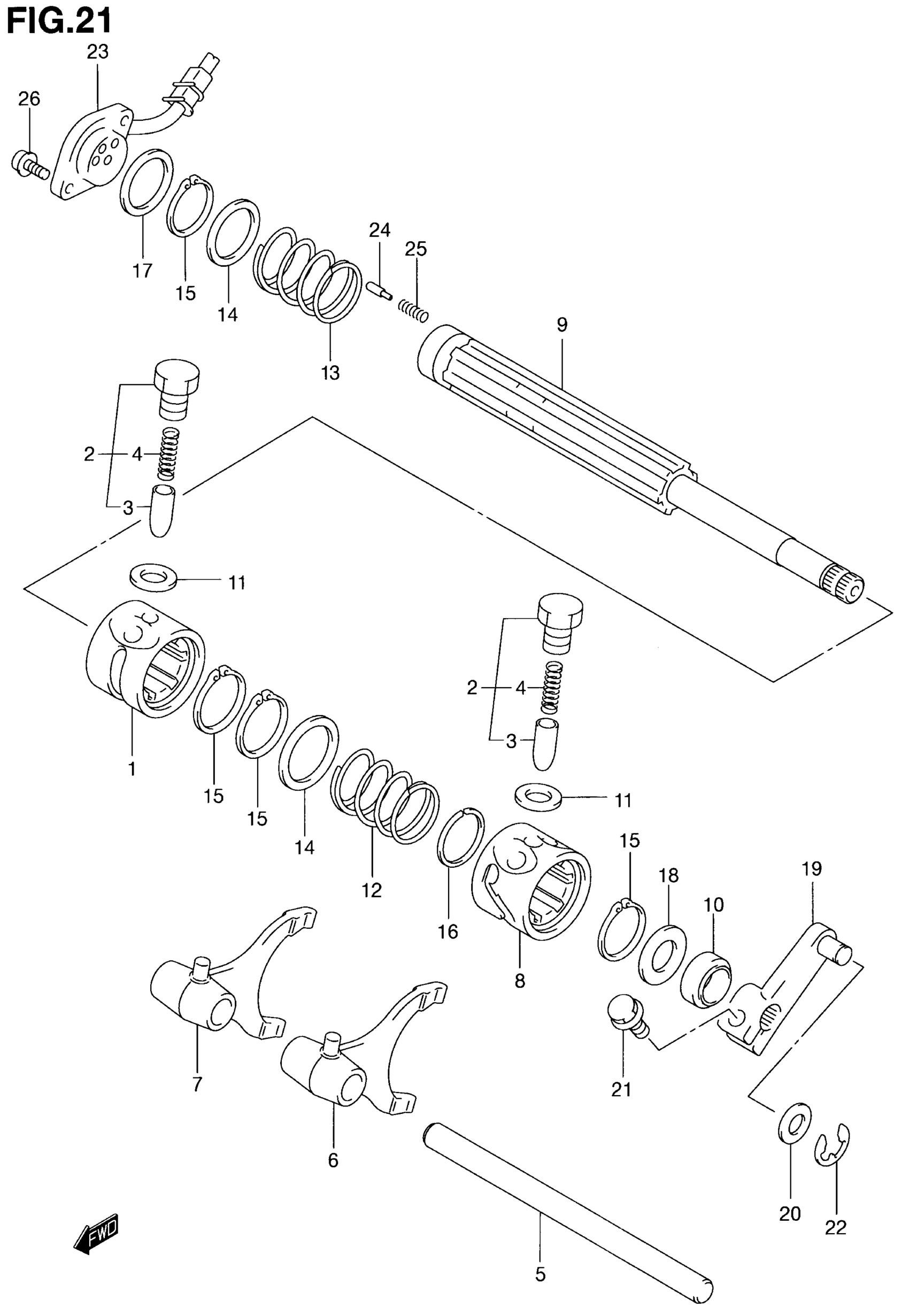

Find the part on the Gear Shifting diagram for your 2001 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-A500F Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, GEAR SHIFT REVERSE

25321-09F50

1
Out of stock

2

STOPPER, SHIFT CAM | Includes Item(s) 3 - 4

25350-09F50

2
Out of stock

3

STOPPER

25351-44D50

2
Out of stock

4

SPRING

29613-44D00

2
Out of stock

5

SHAFT, GEAR SHIFT FORK

25411-30B00

1
Out of stock

6

FORK, GEAR SHIFT

29511-44D00

1
Out of stock

7

FORK, SHIFT REVERSE

29511-44D00

1
Out of stock

8

CAM, GEAR SHIFT

29611-09F50

1
Out of stock

9

SHAFT, GEAR SHIFT

29620-09F50

1
Out of stock

10

OIL SEAL (12X22X9)

09285-12006

1
Out of stock

11

GASKET, SHIFT CAM STOPPER | 13.8X18.8X0.4

09168-14002

2
Out of stock

12

SPRING, SUB T/M SHIFT CAM

29612-44D10

1
Out of stock

13

SPRING, REVERSE SHIFT CAM

29612-44D10

1
Out of stock

14

WASHER, SHIFT CAM SPRING | 25X32X1.0

09181-25139

2
Out of stock

15

CIRCLIP, SHIFT CAM SPRING

08331-31256

4
Out of stock

16

C RING, SUB T/M CAM STOP

09380-25012

1
Out of stock

17

WASHER, SHIFT SHAFT | 25X34X1.0

09181-25167

1
Out of stock

18

WASHER, SHIFT SHAFT

08211-12261

1
Out of stock

19

ARM, SELECT

25360-09F50

1
Out of stock

20

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

21

BOLT This part replaces 01550-06203.

01550-0620A

1
Out of stock

22

E RING This part replaces 08332-11033.

08332-1103A

1
Out of stock

23

BASE ASSY, GEAR SHIFT TERM

37720-09F20

1
Out of stock

24

CONTACT

09209-05011

2
Out of stock

25

SPRING

09440-04010

2
Out of stock

26

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

2
Out of stock
