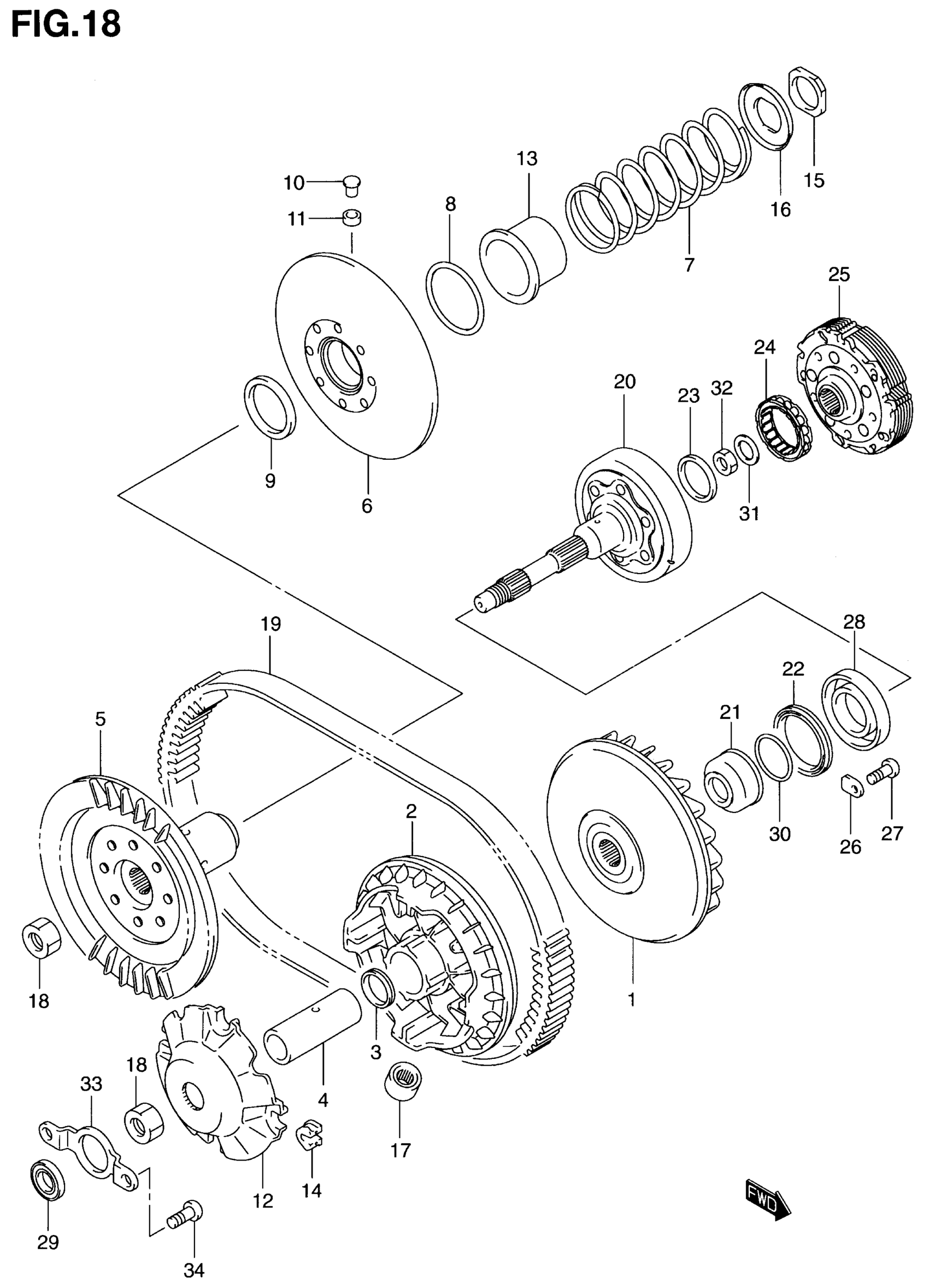

Suzuki LT-A500F (2001) TRANSMISSION (1)(MODEL Y) Diagram

#

Description
Price

1

FACE, FIXED DRIVE

21110-09F50

$189.55

2

FACE, MOVABLE DRIVE

21120-09F52

$181.83

3

SEAL, MOVABLE DRIVE

21124-09F50

$10.66

4

SPACER, MOVABLE DRIVE

21125-09F50

$66.02

5

FACE, FIXED DRIVEN

21210-09F52

Unavailable

6

FACE, MOVABLE DRIVEN

21240-09F52

Unavailable

7

SPRING, MOVABLE DRIVEN

21243-09F52

$49.02

8

O-RING

21245-15F00

$5.02

9

SEAL, MOVABLE DRIVEN

21247-15F00

$11.36

10

PIN,MOVABLE DRIVEN

21248-15F01

$4.76

11

SPACER,MOVABLE DRIVEN PIN

21249-15F00

$5.38

12

PLATE, MOVABLE DRIVE This part replaces 21431-09F50.

21431-09F60

$53.98

13

SHEET,MOVABLE DRIVEN This part replaces 21471-09F52.

21471-09F60

$19.87

14

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

$7.22

15

NUT, DRIVEN PULLY

21518-09F50

$31.45

16

HOLDER, MOVABLE DRIVEN

21519-09F52

$21.83

17

ROLLER, MOVABLE DRIVE

21650-09F51

$16.84

18

NUT, FACE

09140-20011

Unavailable

19

V BELT, DRIVE

27601-09F51

$217.40

20

HOUSING, CLUTCH This part replaces 21100-09F50.

21100-09F60

$326.55

21

SPACER, FIXED DRIVE LH

21102-09F51

$49.42

22

SEAL,CLUTCH HOUSING SPACER OI This part replaces 21104-09F52.

21104-09F60

$60.79

23

SEAL, CLUTCH HOUSING

21105-09F50

$26.07

24

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

$138.71

25

CLUTCH ASSY, SHOE This part replaces 21500-09F50.

21500-03G00

$409.02

26

RETAINER, BEARING

24741-21A00

$2.81

27

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

28

BEARING

09262-40009

$114.03

29

BEARING

09262-17047

$38.05

30

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

31

WASHER (18X30X2.5)

09160-18033

$3.50

32

NUT

09140-18004

$3.23

33

RETAINER, BEARING

24751-09F50

$7.63

34

SCREW

09126-06011

$2.03
