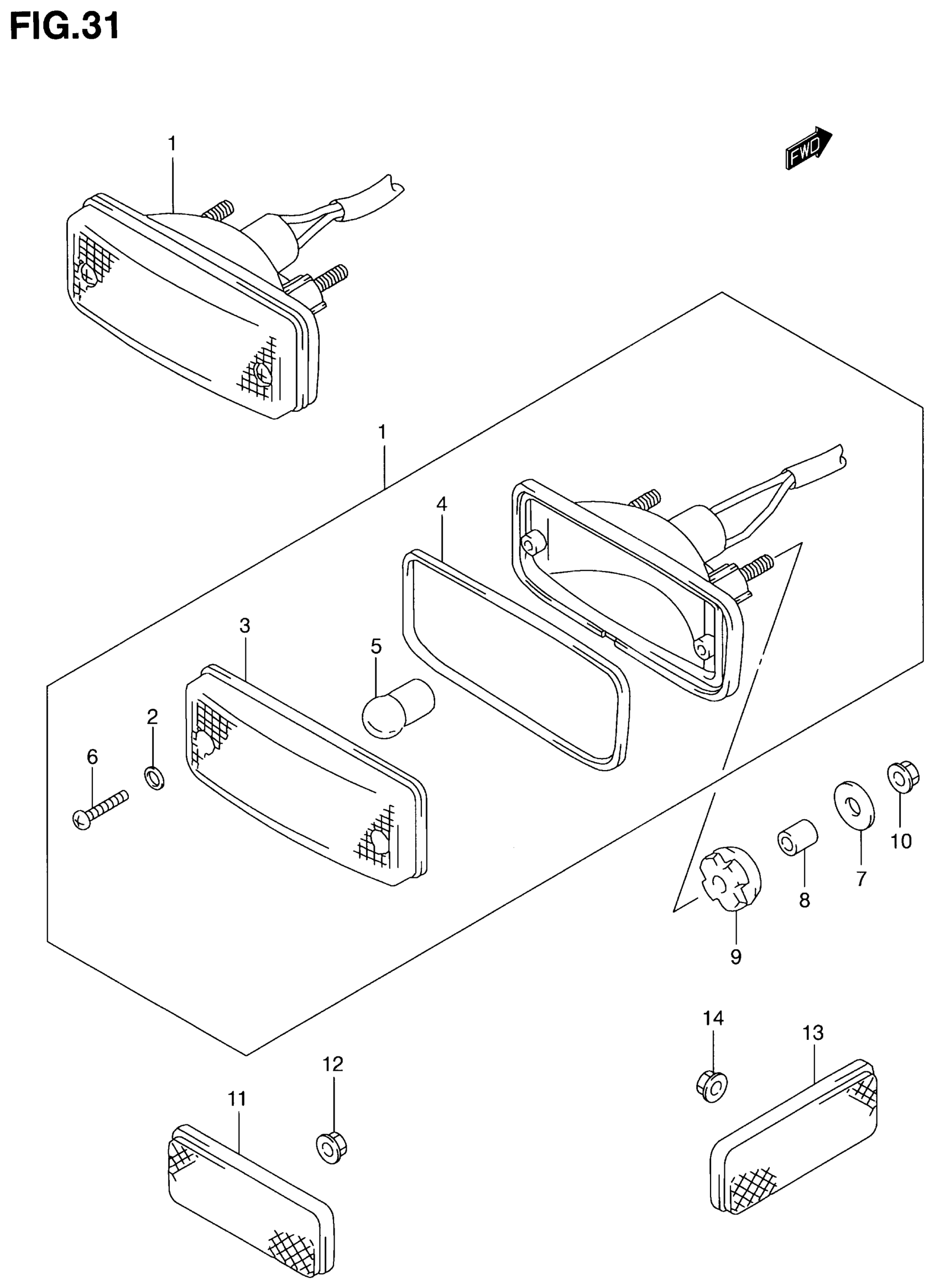

Suzuki LT-A500F (2001) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | MODEL Y

35710-41B02

Unavailable

1

LAMP ASSY, TAIL | MODEL K1; Includes Item(s) 2 - 6

35710-02C00

$110.84

2

SCREW

35627-43010

$2.28

3

LENS

35712-18A32

$45.31

4

GASKET

35713-18A30

$9.67

5

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

6

SCREW This part replaces 03211-04163.

03211-0416A

$1.49

7

.WASHER (6.5X20X1.6)

09160-06088

$1.65

8

SPACER (6.5X10X12)

09180-06290

$2.35

9

CUSHION

09320-09010

$2.84

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

$20.88

12

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19

13

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

$20.88

14

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19
