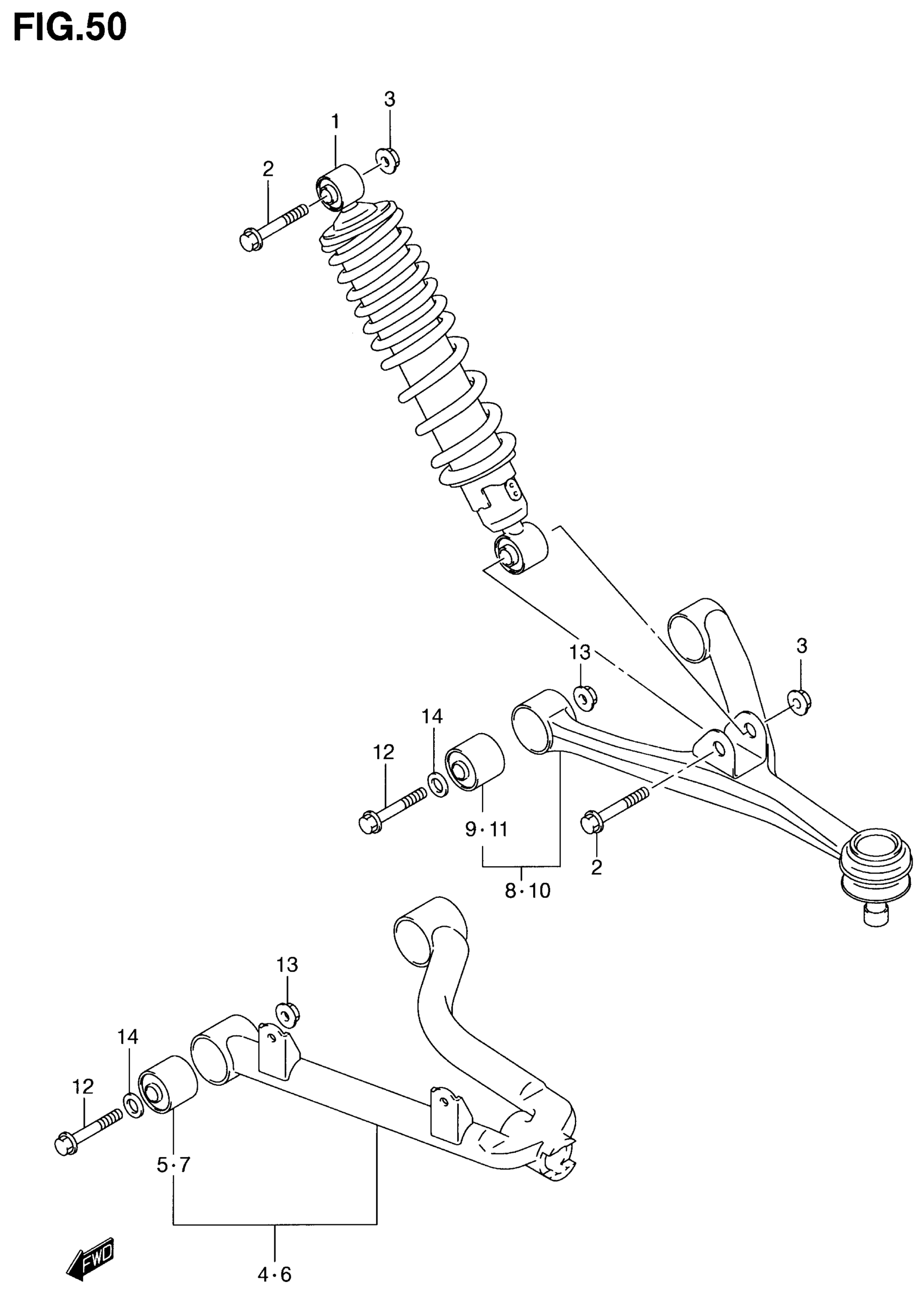

Suzuki LT-A500F (2001) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-09F10-019

Unavailable

2

BOLT (10X48)

09103-10126

$4.50

3

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

4

NO DESCRIPTION AVAILABLE | Includes Item(s) 5 This part replaces 52410-09840.

52410-09841

Unavailable

5

BUSH (10X35.1X38)

09319-10055

$21.02

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 This part replaces 52420-09840.

52420-09841

Unavailable

7

BUSH (10X35.1X38)

09319-10055

$21.02

8

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 9

52430-09840

Unavailable

9

BUSH (10X35.1X38)

09319-10055

$21.02

10

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 11

52440-09840

Unavailable

11

BUSH (10X35.1X38)

09319-10055

$21.02

12

BOLT (10X60)

09103-10301

$5.98

13

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

14

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10505.

09160-10093

$2.35
