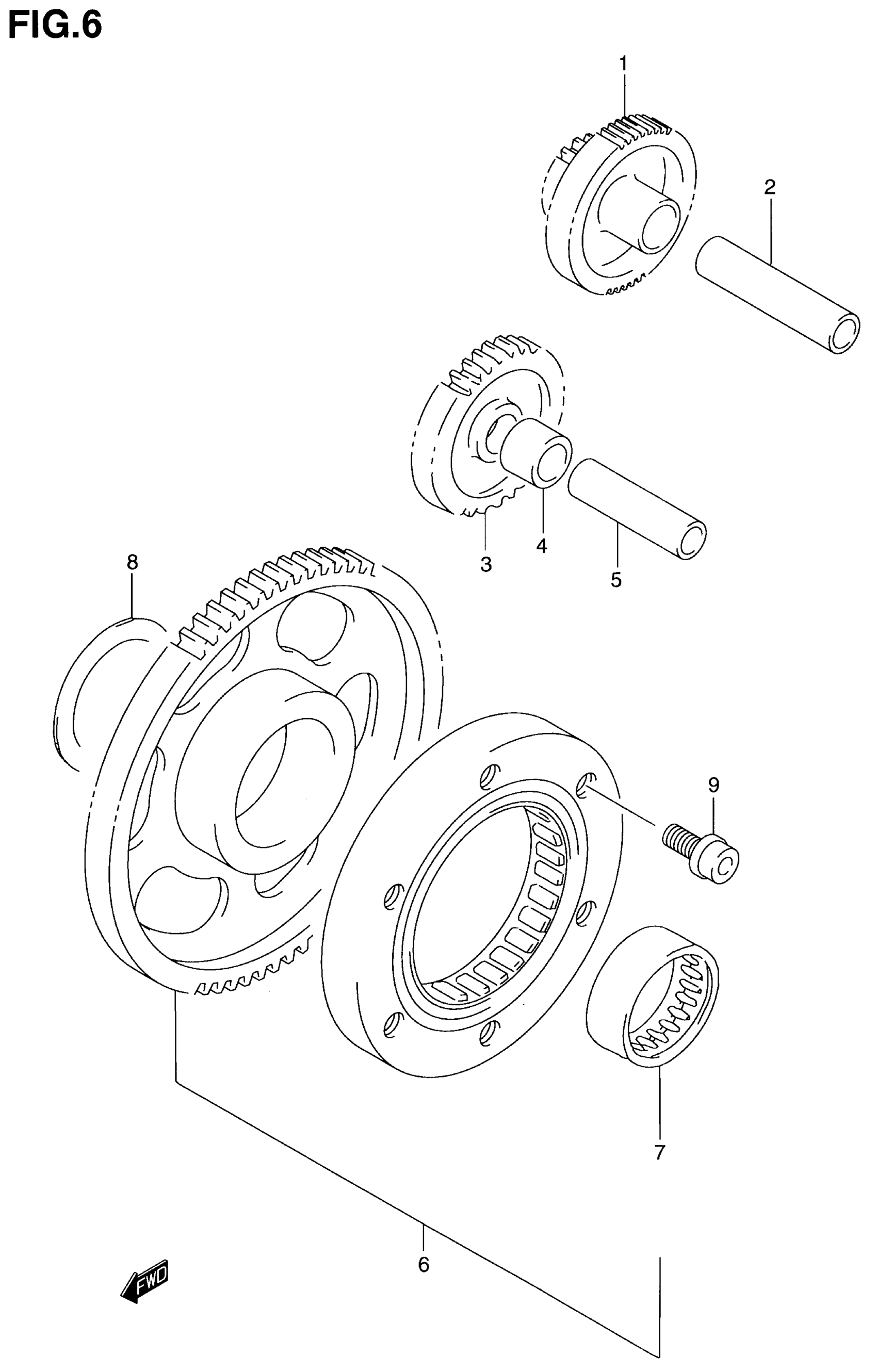

Suzuki LT-A500F (2001) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE NO.1 This part replaces 12611-44D01.

12611-44D10

$74.21

2

PIN

09206-12005

$15.12

3

GEAR, STARTER IDLE NO.2 (NT:27)

12612-09F00

$69.77

4

SPACER, STARTER IDLE GEAR NO.2

09180-12149

$6.23

5

PIN

09206-12006

$9.43

6

CLUTCH SET, STARTER | Includes Item(s) 7

12600-09870

$347.67

7

BEARING (31X39X17.8)

09263-31009

$47.00

8

WASHER

08211-35505

$9.10

9

BOLT This part replaces 07130-08203.

07130-0820B

$3.49
