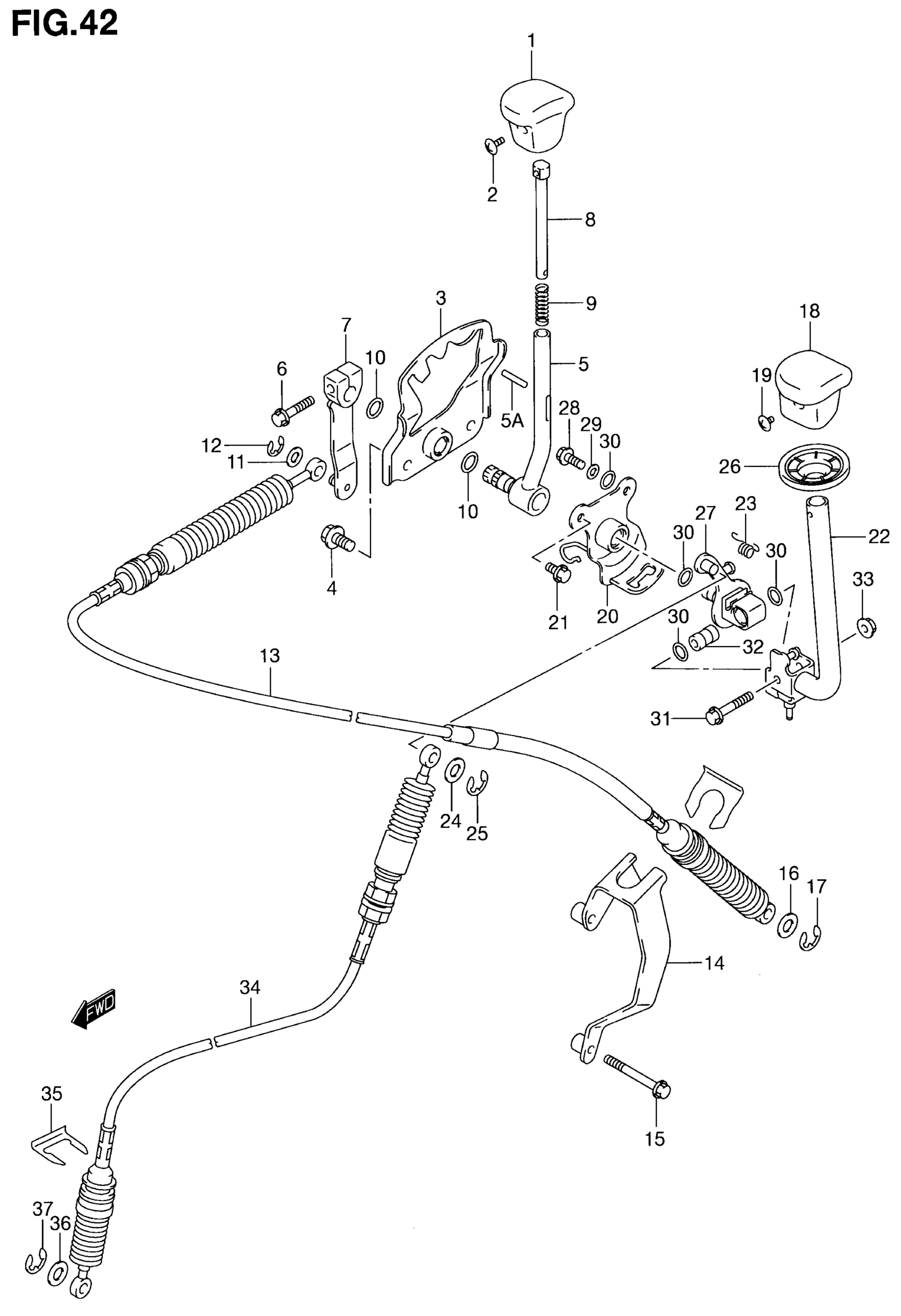

Suzuki LT-A500F (2001) SHIFT LEVER Diagram

#

Description
Price

1

KNOB, SHIFT LEVER

57830-09FA0

Unavailable

2

SCREW This part replaces 02142-04123.

02142-0412A

$1.50

3

NO DESCRIPTION AVAILABLE This part replaces 57840-09FA0.

57840-09FA1

Unavailable

4

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

5

LEVER, GEAR SHIFT | MODEL Y This part replaces 57850-09FA0.

57850-09FB0

Unavailable

5

LEVER, GEAR SHIFT | MODEL K1

57850-09FB0

Unavailable

5A

PIN,SHIFT LEVER This part replaces 57929-19B00.

57929-19B10

$10.17

6

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

7

LEVER, SHIFT CABLE | MODEL Y

57870-09FA0

Unavailable

7

LEVER, SHIFT CABLE | MODEL K1 This part replaces 57870-09FB0.

57870-09FA0

Unavailable

8

ROD,SHIFT LEVER This part replaces 57928-09FA0.

57928-09FAV

Unavailable

9

SPRING,SHIFT LE This part replaces 57856-09FA0.

57856-09FAV

Unavailable

10

O RING, PIVOT

09280-12001

$2.90

11

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

12

E RING This part replaces 08332-11033.

08332-1103A

$2.15

13

CABLE, GEAR SHIFT

58680-09F00

Unavailable

14

BRACKET, CABLE

58870-09F00

Unavailable

15

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

16

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

17

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

18

KNOB, TRANSFER LEVER

57930-09FA0

Unavailable

19

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

20

PLATE, TRANSFER LEVER | MODEL Y

57910-09FA0

Unavailable

20

PLATE, TRANSFER LEVER | MODEL K1

57910-09FB0

Unavailable

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

22

LEVER, TRANSFER | MODEL Y This part replaces 57920-09FA0.

57920-09FB0

Unavailable

22

LEVER, TRANSFER | MODEL K1

57920-09FB0

Unavailable

23

SPRING,TRANSFER This part replaces 57962-09FA0.

57962-09FAV

Unavailable

24

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

25

E RING This part replaces 08332-11033.

08332-1103A

$2.15

26

COVER, LEVER

57971-09FA0

$10.43

27

BODY, TRANSFER

57940-09FA0

Unavailable

28

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

29

WASHER

09160-06084

$1.78

30

O RING

09280-12001

$2.90

31

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

32

SPACER, PIVOT

57961-09FA0

Unavailable

33

NUT This part replaces 08316-10063.

08316-1006B

$2.50

34

CABLE, TRANSFER SHIFT

58690-09F00

Unavailable

35

CLIP

09383-19001

$7.70

36

WASHER This part replaces 08322-01123.

08322-0112B

$2.62

37

E RING This part replaces 08332-11106.

08332-1110A

$1.80
