2001 Suzuki LT-A500F Right Rear Wheel Diagram

← All diagrams

Find the part on the Right Rear Wheel diagram for your 2001 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

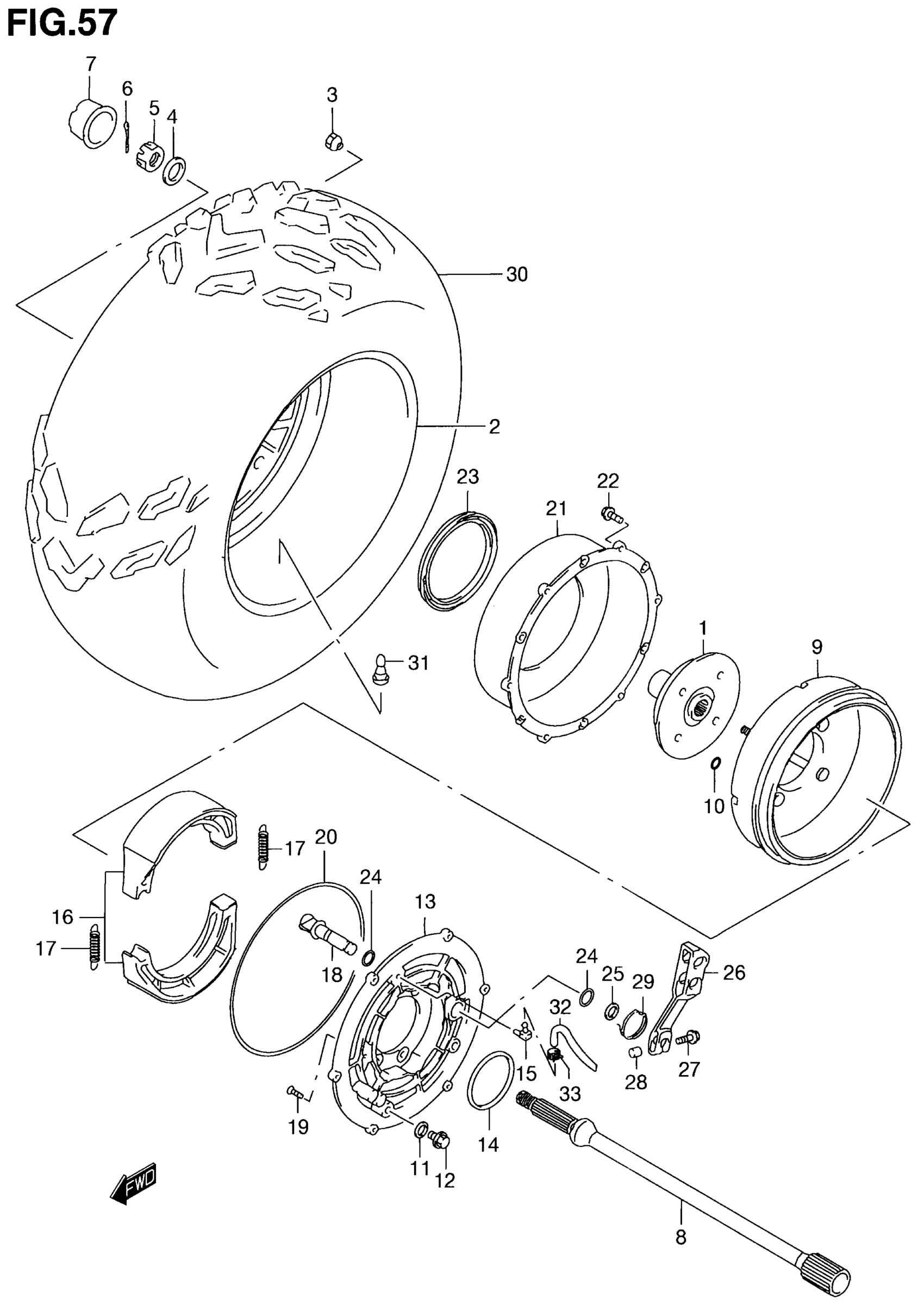

2001 Suzuki LT-A500F Right Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL RH

64111-09F00

1
Out of stock

2

RIM, REAR WHEEL (12X8.0AT) (SILVER) This part replaces 65310-09F10-12Z.

65310-09F11-12Z

1
Out of stock

3

NUT | MODEL K1 This part replaces 09140-10029.

09140-10021

4
Out of stock

4

WASHER

09164-18004

1
Out of stock

5

NUT, HUB

09141-18008

1

$8.27

In stock

6

1

$1.47

In stock

7

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

8

AXLE, REAR RH | MODEL Y

64711-09F00

1
Out of stock

8

AXLE, REAR LH | MODEL K1

64711-09F00

1
Out of stock

9

DRUM, BRAKE

64120-39D10

1
Out of stock

10

O RING (ID:9.8,D:1.90)

09280-10016

4
Out of stock

11

WASHER, DRAIN PLUG

09161-10007

1
Out of stock

12

PLUG, DRAIN

09247-10008

1
Out of stock

13

PANEL, BRAKE ANCHOR

64210-09F00

1
Out of stock

14

1

$4.75

In stock

15

UNION, PANEL

16910-09401

1

$18.15

In stock

16

SHOE SET, BRAKE

64400-41810

1

$79.72

In stock

17

SPRING, SHOE

55420-30000

2
Out of stock

18

CAM,REAR BRAKE

64440-09F00

1
Out of stock

19

BOLT, PANEL (8X18)

09120-08015

4

$4.03

In stock

20

1

$56.47

In stock

21

COVER, REAR BRAKE

64123-39D00

1
Out of stock

22

BOLT This part replaces 01550-06163.

01550-0616A

6
Out of stock

23

1

$184.27

In stock

24

O RING, CAM (15.9X19.7X2)

64443-18A00

2
Out of stock

25

WASHER

09160-16033

1
Out of stock

26

LEVER, BRAKE CAM

64451-09F00

1
Out of stock

27

BOLT This part replaces 01550-06353.

01550-0635A

1
Out of stock

28

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

29

SPRING, CAM LEVER

64484-09F00

1

$12.83

In stock

30

TIRE, REAR (AT25X10-12) (DUNLOP)

65110-09F00

1
Out of stock

31

VALVE ASSY, WHEEL RIM,TR412

43130-24A00

1
Out of stock

32

1

$13.49

In stock

33

1

$2.30

In stock
