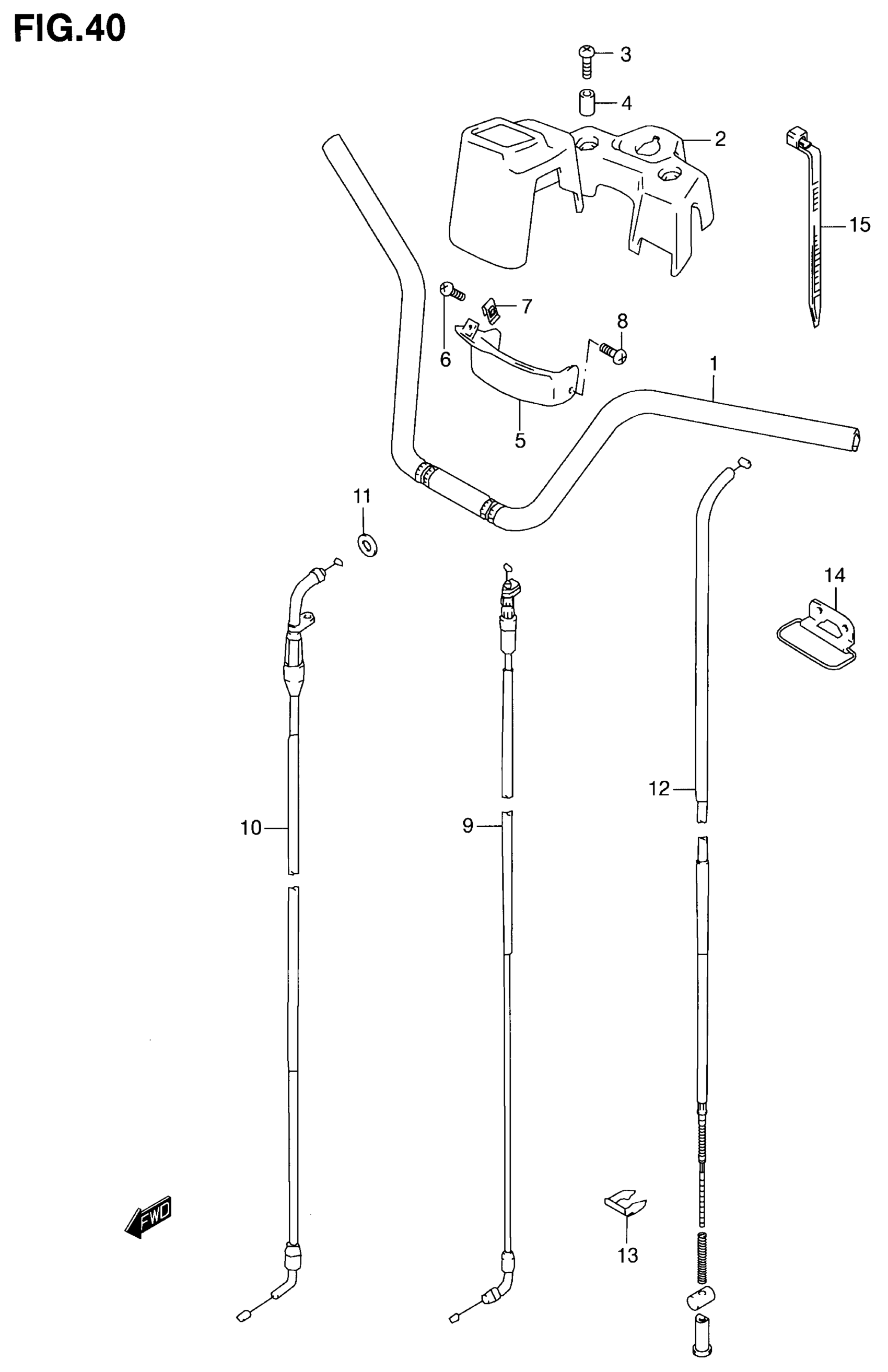

Suzuki LT-A500F (2001) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL Y This part replaces 56110-09FA0.

56110-09FA0-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL K1

56110-09FA0-291

Unavailable

2

COVER, HEAD

56171-09F00

Unavailable

3

SCREW This part replaces 02142-06203.

02142-0620A

$1.38

4

SPACER

09180-06248

$2.13

5

COVER, METER LOWER

56181-09F00

Unavailable

6

SCREW This part replaces 03541-05163.

03541-0516A

$1.37

7

NUT

09148-05020

$2.04

8

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

9

CABLE ASSY,THRO This part replaces 58300-09F10.

58300-09FB0

Unavailable

10

CABLE ASSY, STARTER

58410-09F10

$49.30

11

WASHER

09320-06503

$2.87

12

CABLE, PARKING BRAKE

58810-09F10

Unavailable

13

CLIP

09383-19003

$5.10

14

GUIDE, CABLE

58620-09F00

Unavailable

15

CLAMP (L:125)

09407-14403

$2.24
