Description

Price

1

PEDAL, BRAKE

43110-09FA0

Unavailable

2

BOLT This part replaces 07120-06753.

07120-0675B

$4.15

3

WASHER

09160-06138

$1.91

4

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

5

O RING

09280-14011

$4.77

6

SPRING

09443-11030

$3.70

7

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

8

NUT This part replaces 08310-00063.

08310-0006A

$1.84

9

CABLE ASSY, REAR BRAKE

58510-09F10

Unavailable

10

PIN, FRONT

09200-05001

$1.65

11

COTTER PIN

09385-06012

$1.89

12

SPRING This part replaces 09440-08040.

09440-08040-XC0

$2.63

13

PIN, REAR

09209-13006

$5.24

14

NUT

09150-06012

$3.37

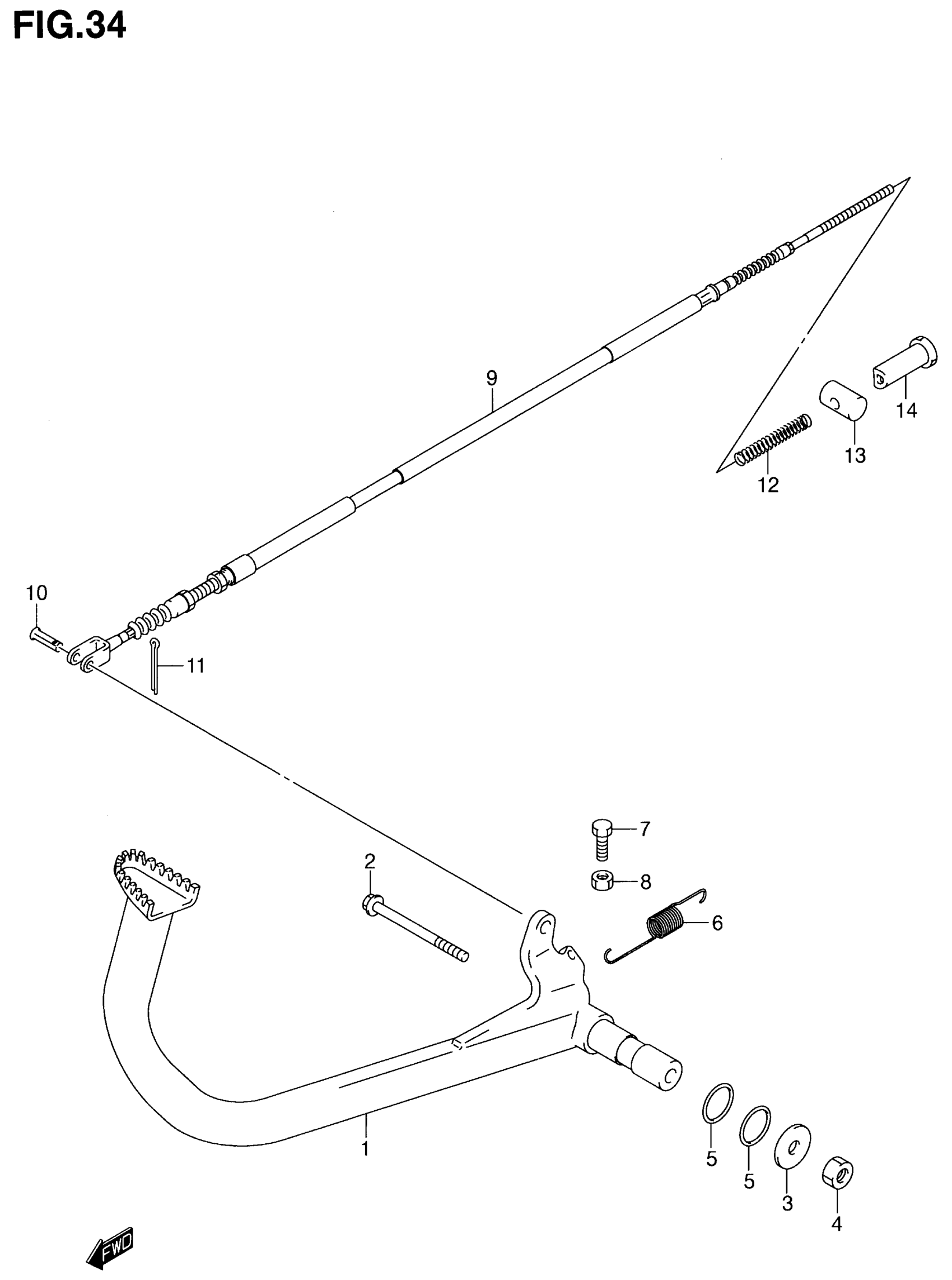

Suzuki LT-A500F (2001) REAR BRAKE Diagram
