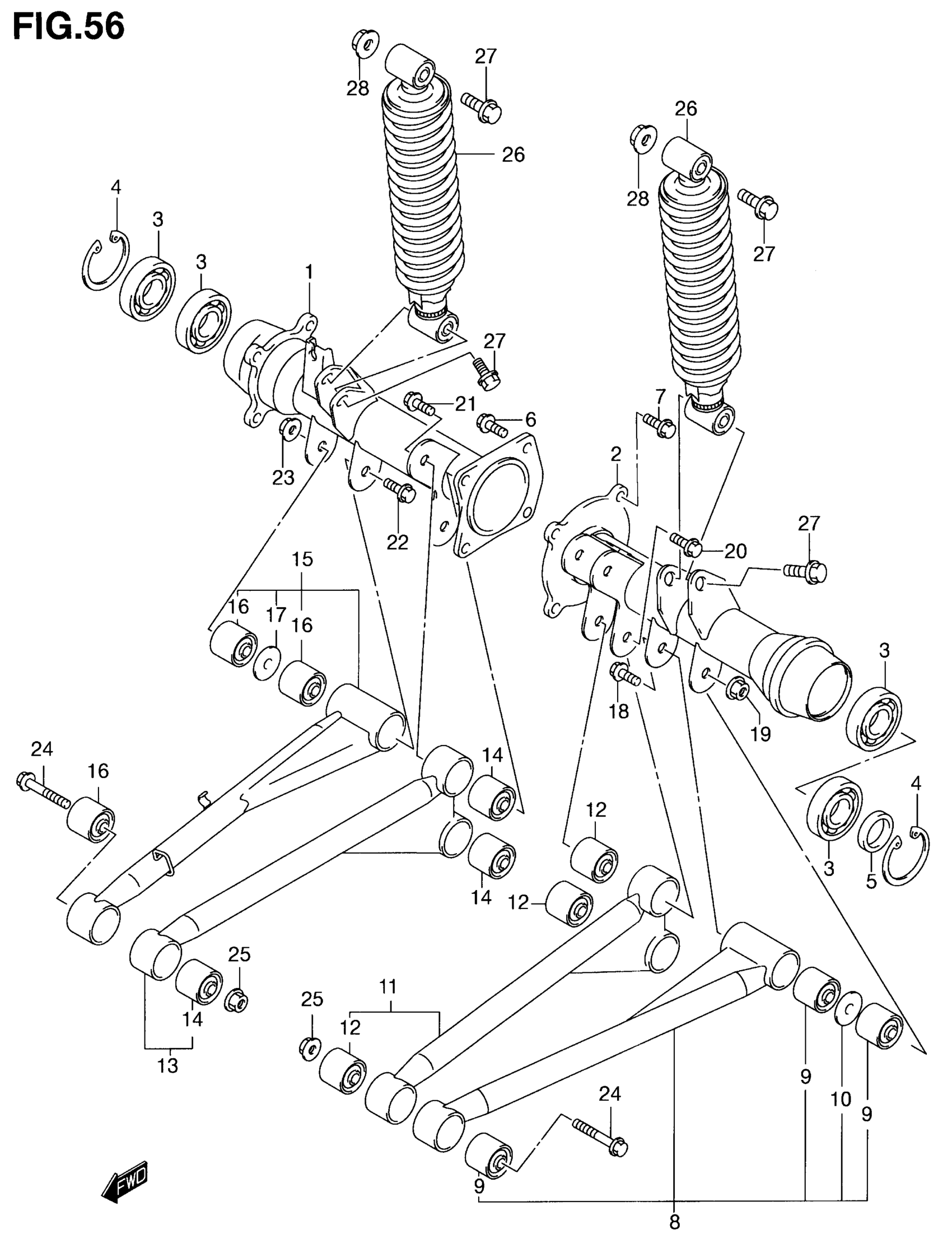

Suzuki LT-A500F (2001) REAR AXLE HOUSING (MODEL Y) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 61100-09F10.

61100-09F30

Unavailable

2

HOUSING,RR AXLE This part replaces 61200-09F10.

61200-09F30

Unavailable

3

BEARING

08123-60067

$29.13

4

CLIP This part replaces 08331-41556.

08331-41559

$3.70

5

SEAL, OIL LH (38X55X6.4)

09283-38013

$11.86

6

BOLT This part replaces 01550-10303.

01550-1030A

$3.55

7

BOLT This part replaces 01550-10403.

01550-1040A

$3.55

8

ARM SET,RR SPNS | Includes Item(s) 9 - 10 This part replaces 62640-09831.

62640-09871

Unavailable

9

BUSH, SUSPENSION ARM

61240-09F00

Unavailable

10

SPACER, BUSH (10.5X34.6X5)

62649-09F00

Unavailable

11

NO DESCRIPTION AVAILABLE | Includes Item(s) 12 This part replaces 62640-09841.

62640-09881

Unavailable

12

BUSH, SUSPENSION ARM

61240-09F00

Unavailable

13

ARM SET,RR SPNS | Includes Item(s) 14 This part replaces 62640-09851.

62640-09891

Unavailable

14

BUSH, SUSPENSION ARM

61240-09F00

Unavailable

15

NO DESCRIPTION AVAILABLE | Includes Item(s) 16 - 17 This part replaces 62640-09861.

62641-09811

Unavailable

16

BUSH, SUSPENSION ARM

61240-09F00

Unavailable

17

SPACER, BUSH (10.5X34.6X5)

62649-09F00

Unavailable

18

BOLT, LH OUTER (10X100)

09103-10110

$8.43

19

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

20

BOLT, LH INNER (10X54)

09103-10040

$5.00

21

BOLT, RH INNER (10X65)

09103-10316

Unavailable

22

BOLT, RH OUTER (10X100)

09103-10110

$8.43

23

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

24

BOLT, PIVOT (10X101.5)

09103-10317

Unavailable

25

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

26

ABSORBER ASSY, REAR SHOCK (BLACK)

62100-09F10-019

Unavailable

27

BOLT (10X48)

09103-10126

$4.50

28

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
