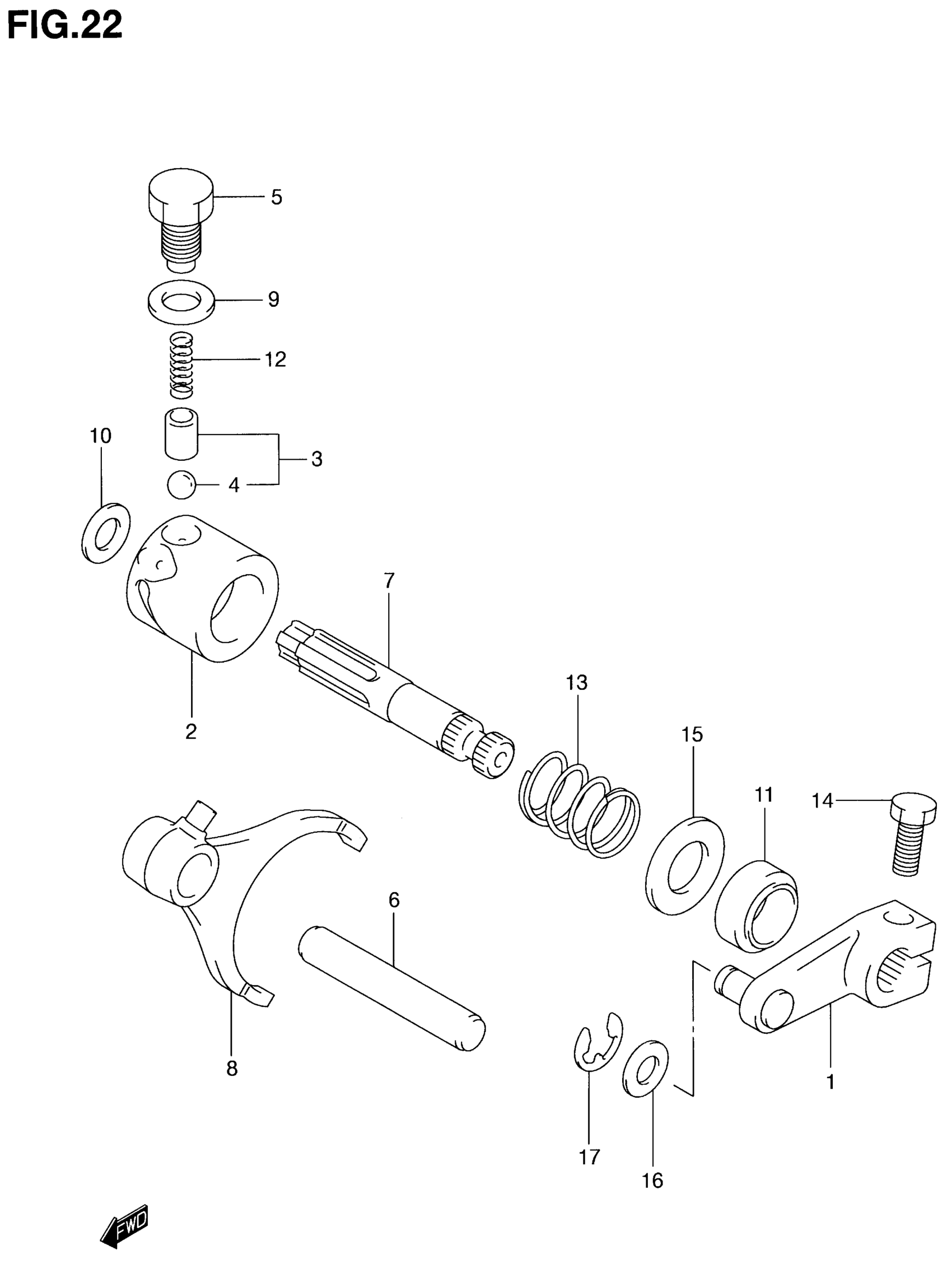

Suzuki LT-A500F (2001) GEAR SHIFTING (2) Diagram

#

Description
Price

1

ARM, SELECT

25360-09F50

Unavailable

2

CAM, SELECT

27911-19B01

Unavailable

3

STOPPER, SELECT CAM | Includes Item(s) 4

25351-39300

$10.23

4

BALL, STEAL

06111-09004

$1.55

5

HOUSING, CAM STOPPER

25352-11010

$7.22

6

SHAFT, SELECT SHIFT FORK

25421-14301

$23.07

7

SHAFT, SELECT CAM

27921-19B01

Unavailable

8

FORK, SELECT SHIFT

27941-19B00

$79.25

9

GASKET, CAM STOPPER | 13.8X18.8X0.4

09168-14002

$2.26

10

WASHER, SELECT CAM RH | 10X18X1.0

09181-10167

$1.97

11

OIL SEAL (12X22X9) | 12X22X9.0

09285-12006

$6.32

12

SPRING, CAM STOPPER

09440-05035

$3.27

13

SPRING, SELECT CAM

09440-17008

$2.64

14

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

15

WASHER, SELECT CAM LH

08211-12241

$2.06

16

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

17

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49
