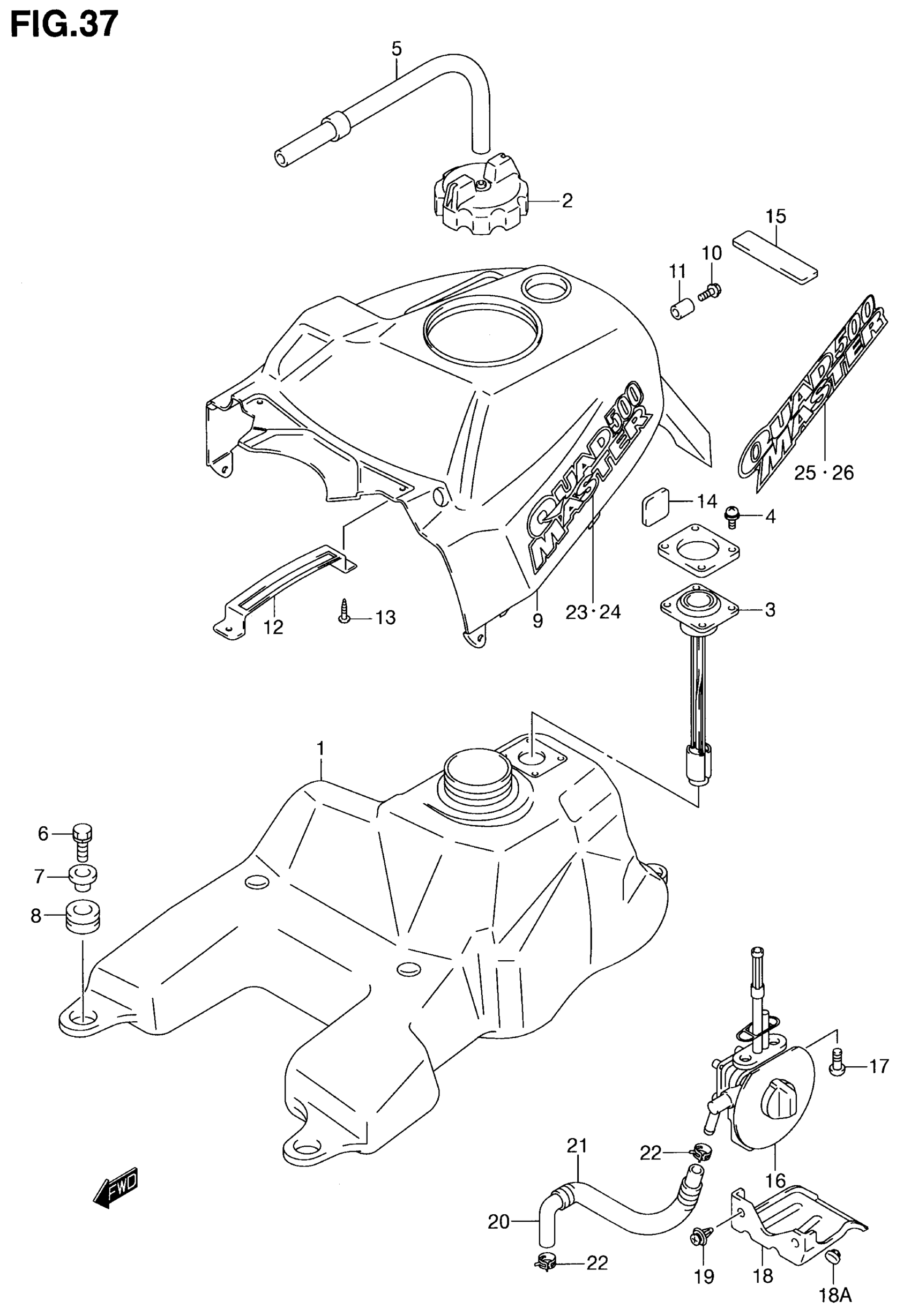

Suzuki LT-A500F (2001) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL | MODEL Y This part replaces 44100-09FA0.

44100-09FA1

Unavailable

1

TANK ASSY, FUEL | MODEL K1

44100-09FA1

Unavailable

2

CAP, FUEL TANK

44200-20B00

$70.65

3

GAUGE ASSY,FUEL This part replaces 44580-09FA0.

44580-09FA1

Unavailable

4

SCREW This part replaces 02112-76163.

02112-7616A

$2.12

5

HOSE,FUEL TANK This part replaces 44433-09FA0.

44433-09FA1

$9.93

6

BOLT This part replaces 01570-08353.

01570-0835A

$3.16

7

SPACER

09180-08174

$6.14

8

CUSHION

09320-12016

$2.11

9

COVER, FUEL TANK (GREEN)

44271-09FA0-Y9N

Unavailable

9

COVER, FUEL TANK (RED)

44271-09FA0-Y9P

Unavailable

10

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

11

SPACER

09180-06267

$4.10

12

PLATE, LEVER

57950-09FA0

Unavailable

13

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

14

CUSHION This part replaces 44281-29C00.

63191-25C00

$3.05

15

CUSHION

47451-38A01

$4.43

16

COCK ASSY,FUEL This part replaces 44300-09FA0.

44300-09FA1

$107.78

17

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

18

COVER, FUEL COCK | MODEL Y This part replaces 44461-09FA0.

44461-09FA1

Unavailable

18

COVER, FUEL COCK | MODEL K1

44461-09FA1

Unavailable

18A

CUSHION | MODEL K1

44462-09FA0

Unavailable

19

CLIP (BLACK)

09409-06322-5PK

$3.10

20

HOSE, FUEL

44421-09FA0

Unavailable

21

HOSE This part replaces 44423-09FA0.

13684-38B10

$21.27

22

CLIP This part replaces 09401-11407.

09401-11415

$2.23

23

EMBLEM, TANK COVER RH | MODEL Y FOR Y9N

68111-09FA0-BH9

Unavailable

23

EMBLEM, TANK COVER RH | MODEL Y FOR Y9P

68111-09FA0-BJ1

Unavailable

24

EMBLEM, TANK COVER LH | MODEL Y FOR Y9N

68121-09FA0-BH9

Unavailable

24

EMBLEM, TANK COVER LH | MODEL Y FOR Y9P

68121-09FA0-BJ1

Unavailable

25

NO DESCRIPTION AVAILABLE | MODEL K1 FOR Y9N This part replaces 68111-09FC0-YR5.

68111-09FC1-YR5

Unavailable

25

NO DESCRIPTION AVAILABLE | MODEL K1 FOR Y9P This part replaces 68111-09FC0-YR6.

68111-09FC1-YR6

Unavailable

26

NO DESCRIPTION AVAILABLE | MODEL K1 FOR Y9N This part replaces 68121-09FC0-YR5.

68121-09FC1-YR5

Unavailable

26

EMBLEM,FUEL TAN | MODEL K1 FOR Y9P This part replaces 68121-09FC0-YR6.

68121-09FC1-YR6

Unavailable
