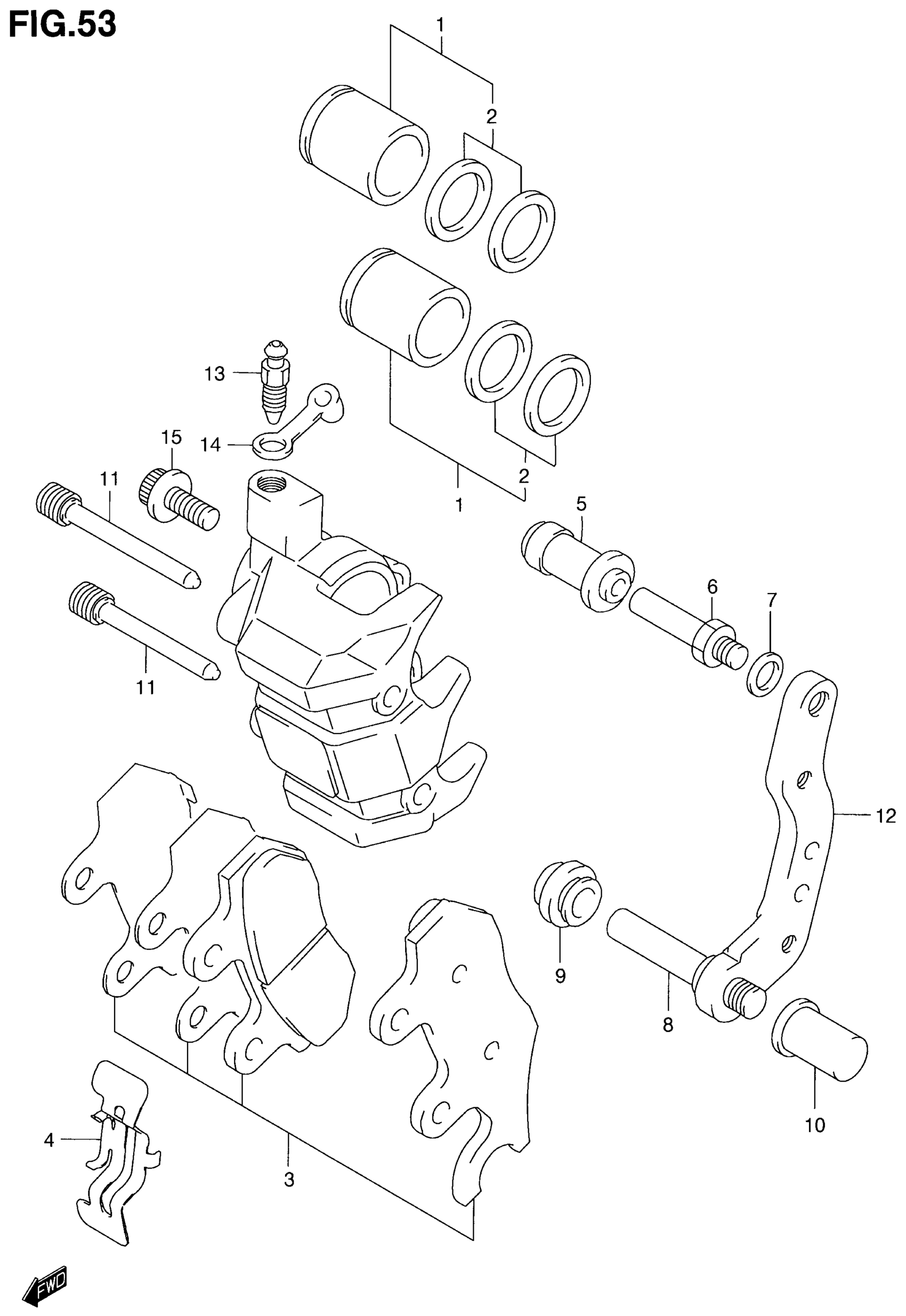

Suzuki LT-A500F (2001) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, FRONT RH

59100-09F10

Unavailable

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 14

59300-09F10

Unavailable

1

PISTON SET

59100-09810

$71.70

2

SEAL SET, PISTON

59300-21860

$20.15

3

PAD SET, RH

59100-09850

Unavailable

3

PAD SET, LH

59300-09850

Unavailable

4

SPRING, PAD

59315-00B20

$12.30

5

BOOT

59386-13A00

$7.95

6

PIN

59382-13A00

$7.69

7

WASHER

59314-13A00

$2.02

8

PIN

59387-00B20

$18.55

9

BOOT

59303-14500

$5.52

10

NUT

59388-00B20

$15.16

11

PIN

59345-00B20

$14.20

12

BRACKET, RH

59351-00B20

$80.50

12

BRACKET, LH

59151-47E00

$75.62

13

BLEEDER

59121-01A00

$8.73

14

CAP

59122-01A00

$4.34

15

BOLT This part replaces 07120-08163.

07120-0816A

$3.05
