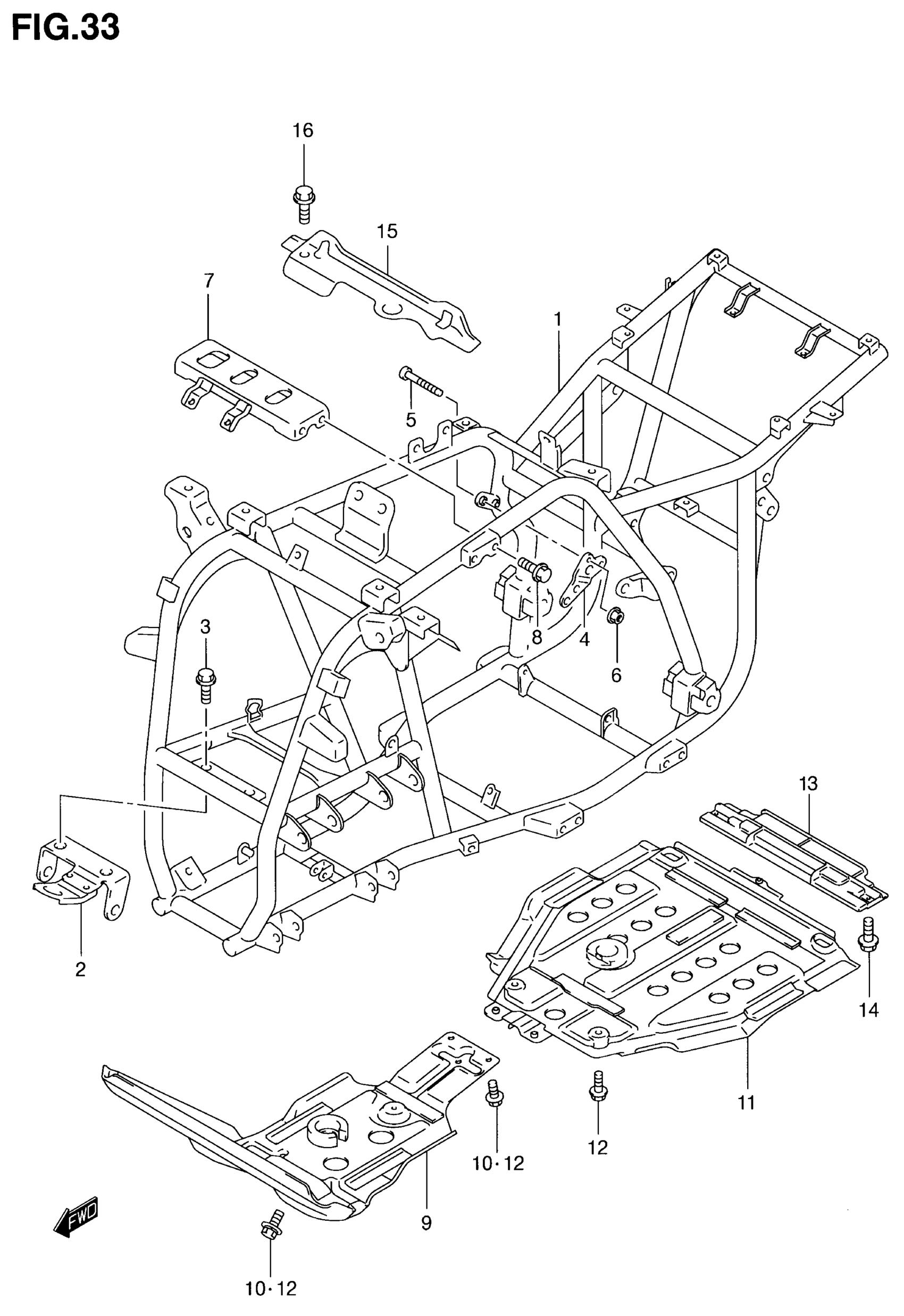

Suzuki LT-A500F (2001) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 41100-09FA0-019.

41100-09FB0-019

Unavailable

1

FRAME COMP | MODEL K1 This part replaces 41100-09FC0-019.

41100-09FD0-019

Unavailable

2

PLATE, DIFFERENTIAL CASE

41950-09FA0

Unavailable

3

PLUG, OIL GALLERY This part replaces 01550-10163.

01550-1016A

$3.10

4

PLATE, ENGINE MOUNT RH

41981-09FB0

Unavailable

5

BOLT This part replaces 07130-08503.

07130-0850A

$4.17

6

NUT This part replaces 08316-10063.

08316-1006B

$2.50

7

BRACKET, ENGINE MOUNT UPPER

41990-09FA0

Unavailable

8

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

9

PROTECTOR, FRONT | MODEL Y

42520-09FA0

Unavailable

9

PROTECTOR, FRONT | MODEL K1

42521-09F40

Unavailable

10

BOLT (6X12) | MODEL K1 This part replaces 09111-06063.

09111-06085

$4.54

11

PROTECTOR, ENGINE

42510-09FB0

Unavailable

12

BOLT | MODEL Y

09118-06110

$4.17

12

BOLT | MODEL K1

09118-06110

$4.17

13

COVER, ENGINE REAR

42531-09F00

Unavailable

14

BOLT | MODEL Y

09118-06110

$4.17

14

BOLT | MODEL K1

09116-06151

Unavailable

15

PLATE, BATTERY

41560-09F00

$95.28

16

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32
