Partiron

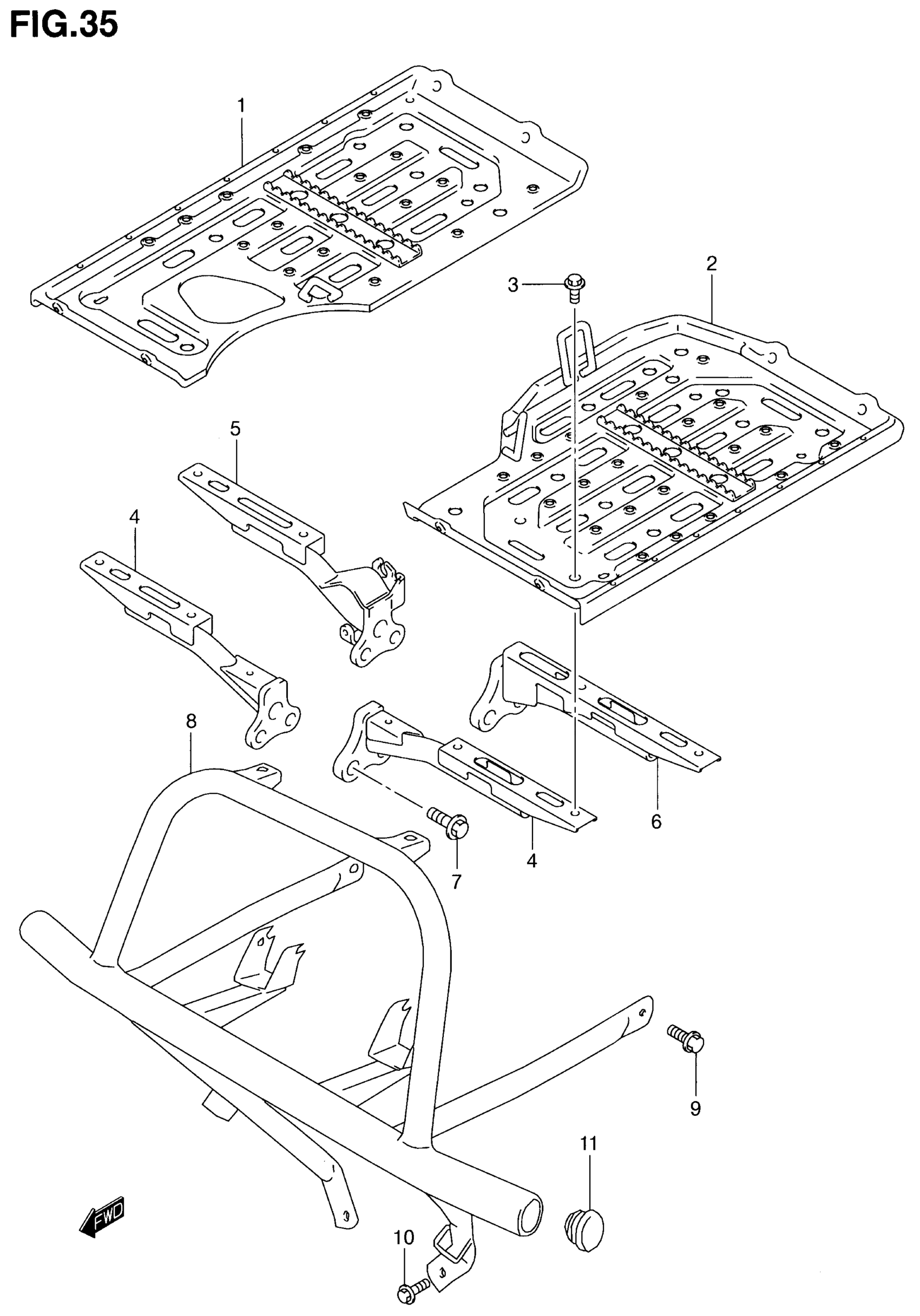

Suzuki LT-A500F (2001) FOOTREST Diagram

#

Description
Price

1

FOOTREST, FRONT RH

43510-09FA0

Unavailable

2

FOOTREST, FRONT LH

43520-09FA0

Unavailable

3

BOLT, PLATE

09118-06110

$4.17

4

BRACKET, FRONT

43530-09FA0

Unavailable

5

BRACKET, REAR RH

43550-09FA0

Unavailable

6

BRACKET, REAR LH

43560-09FA0

Unavailable

7

BOLT, LOWER | MODEL Y This part replaces 09103-10293.

09103-10310

$3.10

7

BOLT, BRACKET | MODEL K1

09103-10310

$3.10

8

GRIP, FRONT (BLACK) | MODEL Y This part replaces 43990-09F20-019.

43990-09F30-019

Unavailable

8

GRIP, FRONT (BLACK) | MODEL K1

43990-09F30-019

Unavailable

9

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

10

BOLT, LOWER

09103-08266

$2.71

11

CAP

43978-09F00

$11.20
