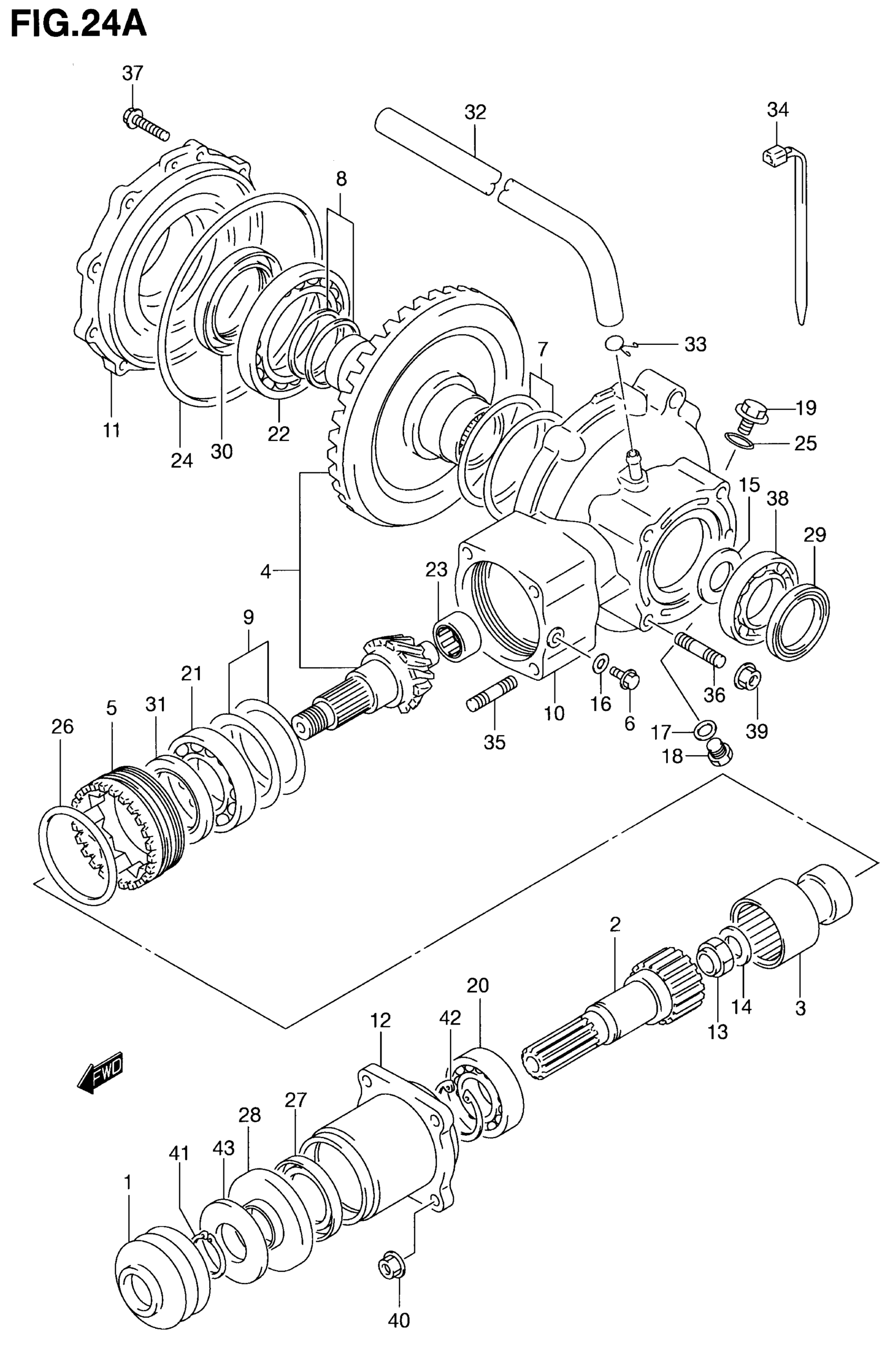

Suzuki LT-A500F (2001) FINAL BEVEL GEAR (REAR)(MODEL K1) Diagram

#

Description
Price

1

BOOT,RR FINAL D This part replaces 27153-44D70.

27153-44D71

Unavailable

2

SHAFT, REAR FINAL

27155-44D62

Unavailable

3

COUPLING, REAR FINAL DRIVE

27172-18B70

Unavailable

4

GEAR SET, FINAL BEVEL | NT:10/36

27300-09810

Unavailable

5

STOPPER, REAR FINAL

27312-09F70

Unavailable

6

PIN, BEARING STOPPER

27313-18A00

$4.00

7

SHIM SET, FINAL DRIVE GR,LH | T:0.30/0.35/0.40/0.50/0.60

27326-09810

$15.27

8

SHIM SET, FINAL DRIVE GR,RH | T:0.30/0.35/0.40/0.50/0.60

27326-18810

$15.00

9

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$28.18

10

CASE, REAR FINAL GR

27450-09F50

Unavailable

11

CASE, REAR FINAL DRIVEN,RH

27461-09F50

Unavailable

12

HOUSING, RR FINAL DRIVE

27471-09F50

Unavailable

13

NUT, REAR DRIVE PINION

09159-16003

$4.00

14

WASHER, SEC DRIVE NUT | 16X29X4

09160-16029

$6.35

15

WASHER, FINAL DRIVEN,LH

08211-40505

Unavailable

16

GASKET, BRG STOPPER PIN | 5.8X13X12

09168-06023

$2.35

17

GASKET, OIL DRAIN PLUG | 13.8X18.8X0.4

09168-14002

$2.26

18

PLUG This part replaces 09247-14012.

09247-14026

$3.76

19

PLUG, GEAR OIL FILLER

09247-18001

$8.83

20

BEARING, REAR SFT

09262-30101

Unavailable

21

BEARING, FINAL DRIVE GR | 28X68X18

09262-28023

$127.87

22

BEARING, FINAL DRIVEN,RH | 70X110X13

09262-45012

$95.42

23

BEARING (20X34X18) | 20X34X18

09263-20062

$46.98

24

O RING, BEARING CASE,RH | ID:161.0,DD:2.4

09280-00029

$36.80

25

O RING, GEAR OIL FILLER | ID:17.8,DD:2.4

09280-18004

$5.18

26

O RING, FINAL BRG STOPPER | ID:68.5,DD:3.1

09280-69001

$3.68

27

SEAL, FINAL DRIVEN BRG OIL

27156-09F50

$17.52

28

COLLAR, OUTPUT OIL SEAL

27590-09F50

Unavailable

29

OIL SEAL, FINAL DRIVEN,LH | 38X54X6.0

09283-38009

$17.33

30

OIL SEAL, FINAL DRIVEN,RH | 42X62X7.0

09283-42011

$12.61

31

OIL SEAL, FINAL DRIVE,FR | 40X54X10

09283-40021

$22.58

32

HOSE(7X10.2X200 | L:2000?1140 This part replaces 09352-70103-00B.

09352-70104-00B

$15.32

33

CLIP

09401-10403

$1.65

34

CLAMP (L:165)

09407-18402

$2.19

35

BOLT,STUD This part replaces 01421-08253.

01421-0825A

$2.03

36

STUD BOLT, BRG CASE,LH

09108-10135

Unavailable

37

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

38

BEARING, DRIVEN GR,LH

08113-60087

$43.55

39

NUT, RR LH CASE

09159-10105

Unavailable

40

NUT, RR FINAL HOUSING

08319-31087

$2.32

41

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.57

42

CLIP This part replaces 08331-41626.

08331-4162A

$3.89

43

WASHER, REAR FINAL DRIVE | 30X38X1.0

09181-30139

$4.25
