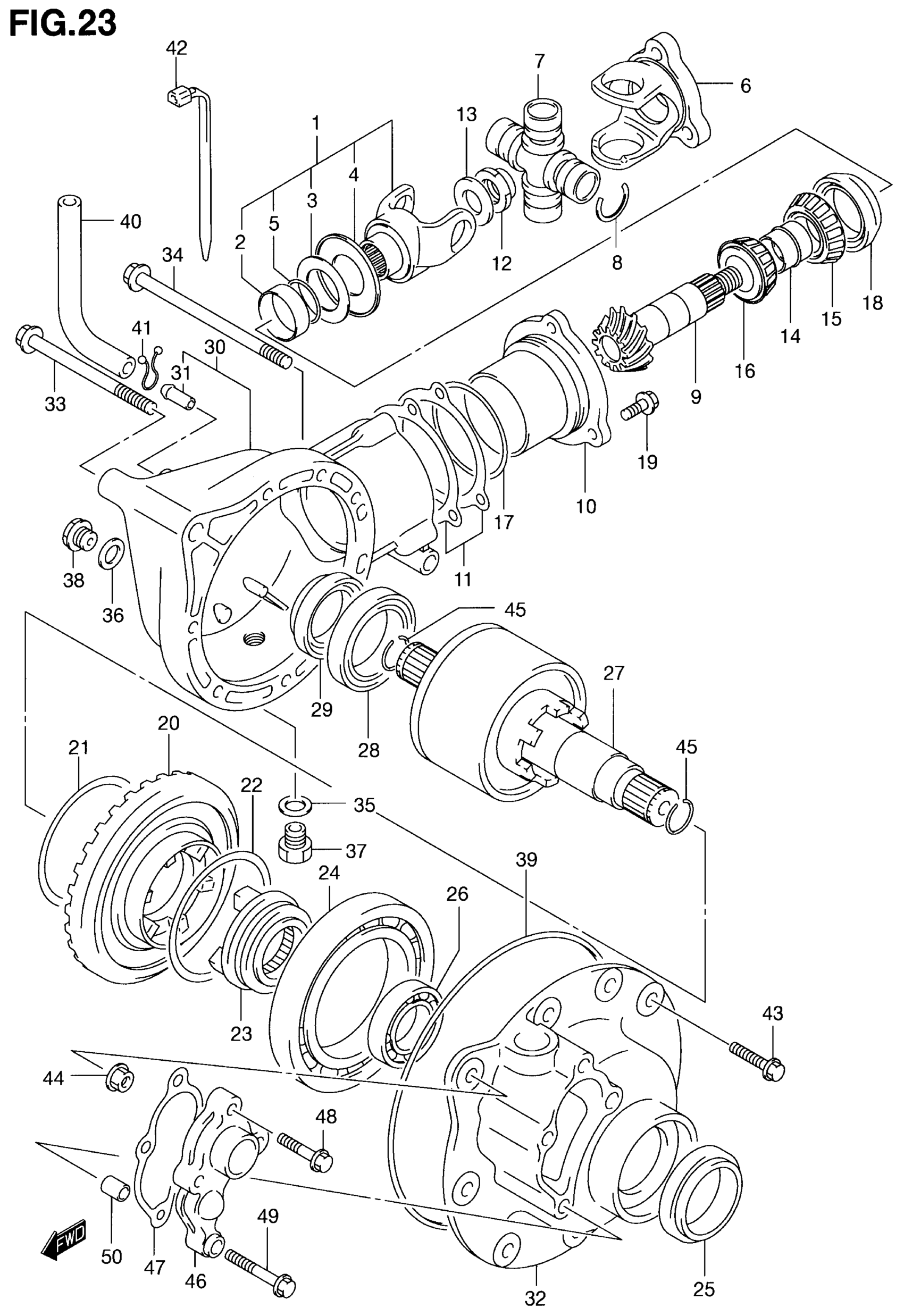

Suzuki LT-A500F (2001) FINAL BEVEL GEAR (FRONT)(MODEL Y) Diagram

#

Description
Price

1

YOKE, FR DRIVE BEVEL GR | Includes Item(s) 2 - 5

27130-19B10

$185.53

2

COLLAR, YOKE

27591-19B01

$22.22

3

PLATE, YOKE

27592-19B00

$7.95

4

PLATE, YOKE COLLAR

09165-30003

$6.38

5

O RING, YOKE COLLAR | ID:28,DD:1.0

09280-28007

$2.11

6

YOKE, PROP SHAFT JOINT

27160-09F50

Unavailable

7

JOINT SET, UNIVERSAL RR This part replaces 27200-73813.

27200-73814

$50.65

8

CIRCLIP, UNIVERSAL JOINT

09380-25005

$1.67

9

GEAR, FR DRIVE BVL This part replaces 27311-44D60.

27311-44D50

Unavailable

10

HOUSING, FR DRIVE BVL GR

27441-19B00

$111.52

11

SHIM SET, FR DRIVE BVL HSG | T:0.15/0.30/0.35/0.40

27445-19810

$25.75

12

NUT, FR DRIVE BVL GR

09159-16004

$3.87

13

WASHER, FR DRIVE BVL GR | 16X30X3

09160-16026

$5.00

14

SPACER, FR DRIVE BVL GR | 25.3X28X28

09180-25085

$31.68

15

BRG,FR DRIVE BVL GR,FR | 25X52X16.25

09265-25024

$60.80

16

BRG,FR DRIVE BVL GR,FR | 25X52X19.25

09265-25013

$63.43

17

O RING, DRIVE BVL GR HSG | ID:62.6,DD:2.4

09280-63004

$4.75

18

SEAL, FR DRIVE BVL GR JOINT | 34X52X9

09283-34008

$20.72

19

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

20

GEAR, FR DRIVEN BEVEL

27321-09F50

Unavailable

21

SHIM SET, JFR DRIVEN BVL GR | T:0.35/0.40/0.50/0.60

27326-19810

$32.10

22

SHIM SET, DRIVEN GEAR BRG | T:0.35/0.40/0.50/0.60

27327-34810

$38.45

23

DOG, FR DIF LOCK SLIDING

27371-19B01

$97.95

24

BRG, FR DRIVEN BEVEL GR | 70X110X13

09262-70001

$140.93

25

SEAL, FR DRIVEN OUTPUT,LH | 34X52X9

09283-34008

$20.72

26

BRG, FR DRIVEN OUTPUT SFT,LH

08113-60050

$23.65

27

DIFFERENTIAL ASSY, FR

27300-09F50

Unavailable

28

BRG, DIFFERENTIAL CASE RH | 40X62X12

09262-40006

$66.33

29

SEAL, FR DIF SIDE OUTPUT OIL | 34X52X9

09283-34008

$20.72

30

HOUSING, FR DIF GEAR | MODEL W/X; Includes Item(s) 31

27450-19B13

Unavailable

31

UNION, BREATHER

09364-08003

$3.15

32

CASE, FR DRIVEN GR BRG | MODEL W/X

27461-19B10

Unavailable

33

BOLT, FR DIFF HOUSING MTG | 10X110

09103-10148

$6.94

34

BOLT, FR DIFF HOUSING MTG | 10X120

09103-10052

Unavailable

35

GASKET, GR OIL DRAIN PLUG | 13.8X18.8X0.4

09168-14002

$2.26

36

GASKET, OIL FILLER PLUG | 16X22X2.0

09168-16002

$1.91

37

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

38

PLUG, GR OIL FILLER

09248-16012

$4.64

39

O RING, FR DRIVEN GR BRG CASE | ID:131.4,DD:2.4

09280-00022

$12.88

40

HOSE(7X10.2X200 | L:2000?700 This part replaces 09352-70103-00B.

09352-70104-00B

$15.32

41

CLIP

09401-10403

$1.65

42

CLAMP (L:165)

09407-18402

$2.19

43

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

44

NUT This part replaces 08319-31103.

08319-3110A

$2.73

45

RING, FR DRIVE SHAFT

09381-22007

$2.33

46

COVER, FR DRIVEN GR CASE

27471-19B01

$60.97

47

GASKET, CASE COVER

27473-19B11

$3.92

48

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

49

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

50

PIN, CASE COVER

04211-09109

$1.65
