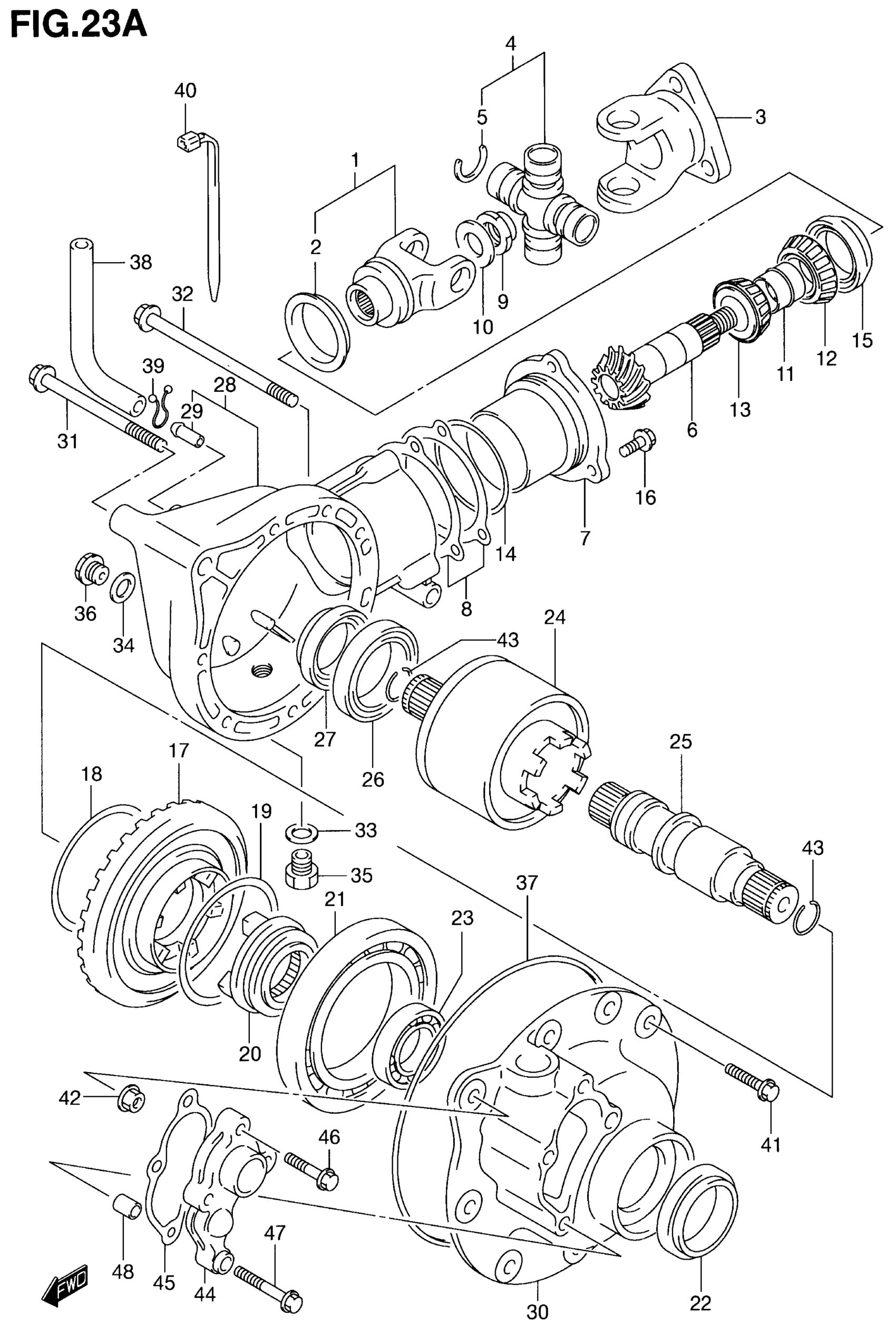

Suzuki LT-A500F (2001) FINAL BEVEL GEAR (FRONT)(MODEL K1) Diagram

#

Description
Price

1

YOKE, REAR DRIVE OUTPUT | Includes Item(s) 2 This part replaces 27130-38F00.

27130-03G00

$156.94

2

PLATE, OUTPUT FLANGE

27592-38F00

$11.33

3

YOKE, PROP SHAFT JOINT RR This part replaces 27161-38F10.

27161-38F11

$167.68

4

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

$59.54

5

CIRCLIP, UNIVERSAL JOINT

09380-20016

$2.32

6

GEAR, FR DRIVE BVL This part replaces 27311-44D60.

27311-44D50

Unavailable

7

HOUSING, FR DRIVE BVL GR

27441-19B00

$111.52

8

SHIM SET, FR DRIVE BVL HSG | T:0.15/0.30/0.35/0.40

27445-19810

$25.75

9

NUT, FR DRIVE BVL GR

09159-16004

$3.87

10

WASHER, FR DRIVE BVL GR | 16X30X3

09160-16026

$5.00

11

SPACER, FR DRIVE BVL GR | 25.3X28X28

09180-25085

$31.68

12

BRG,FR DRIVE BVL GR,FR | 25X52X16.25

09265-25024

$60.80

13

BRG,FR DRIVE BVL GR,FR | 25X52X19.25

09265-25013

$63.43

14

O RING, DRIVE BVL GR HSG | ID:62.6,DD:2.4

09280-63004

$4.75

15

SEAL, FR DRIVE BVL GR JOINT | 34X52X9

09283-34008

$20.72

16

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

17

GEAR, FR DRIVEN BEVEL

27321-09F50

Unavailable

18

SHIM SET, JFR DRIVEN BVL GR | T:0.35/0.40/0.50/0.60

27326-19810

$32.10

19

SHIM SET, DRIVEN GEAR BRG | T:0.35/0.40/0.50/0.60

27327-34810

$38.45

20

DOG, FR DIF LOCK SLIDING

27371-19B01

$97.95

21

BRG, FR DRIVEN BEVEL GR | 70X110X13

09262-70001

$140.93

22

SEAL, FR DRIVEN OUTPUT,LH | 34X52X9

09283-34008

$20.72

23

BRG, FR DRIVEN OUTPUT SFT,LH

08113-60050

$23.65

24

DIFFERENTIAL AS This part replaces 27300-09F70.

27300-09F90

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 27361-09F70.

27361-09F71

Unavailable

26

BRG, DIFFERENTIAL CASE RH | 40X62X12

09262-40006

$66.33

27

SEAL, FR DIF SIDE OUTPUT OIL | 34X52X9

09283-34008

$20.72

28

HOUSING, FR DIF GEAR | Includes Item(s) 29

27450-19B13

Unavailable

29

UNION, BREATHER

09364-08003

$3.15

30

CASE, FR DRIVEN GR BRG

27461-19B10

Unavailable

31

BOLT, FR DIFF HOUSING MTG | 10X110

09103-10148

$6.94

32

BOLT, FR DIFF HOUSING MTG | 10X120

09103-10052

Unavailable

33

GASKET, GR OIL DRAIN PLUG | 13.8X18.8X0.4

09168-14002

$2.26

34

GASKET, OIL FILLER PLUG | 16X22X2.0

09168-16002

$1.91

35

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

36

PLUG, GR OIL FILLER

09248-16012

$4.64

37

O RING, FR DRIVEN GR BRG CASE | ID:131.4,DD:2.4

09280-00022

$12.88

38

HOSE(7X10.2X200 | L:2000?700 This part replaces 09352-70103-00B.

09352-70104-00B

$15.32

39

CLIP

09401-10403

$1.65

40

CLAMP (L:165)

09407-18402

$2.19

41

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

42

NUT This part replaces 08319-31103.

08319-3110A

$2.73

43

RING, FR DRIVE SHAFT

09381-22007

$2.33

44

COVER, FR DRIVEN GR CASE

27471-19B01

$60.97

45

GASKET, CASE COVER

27473-19B11

$3.92

46

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

47

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

48

PIN, CASE COVER

04211-09109

$1.65
