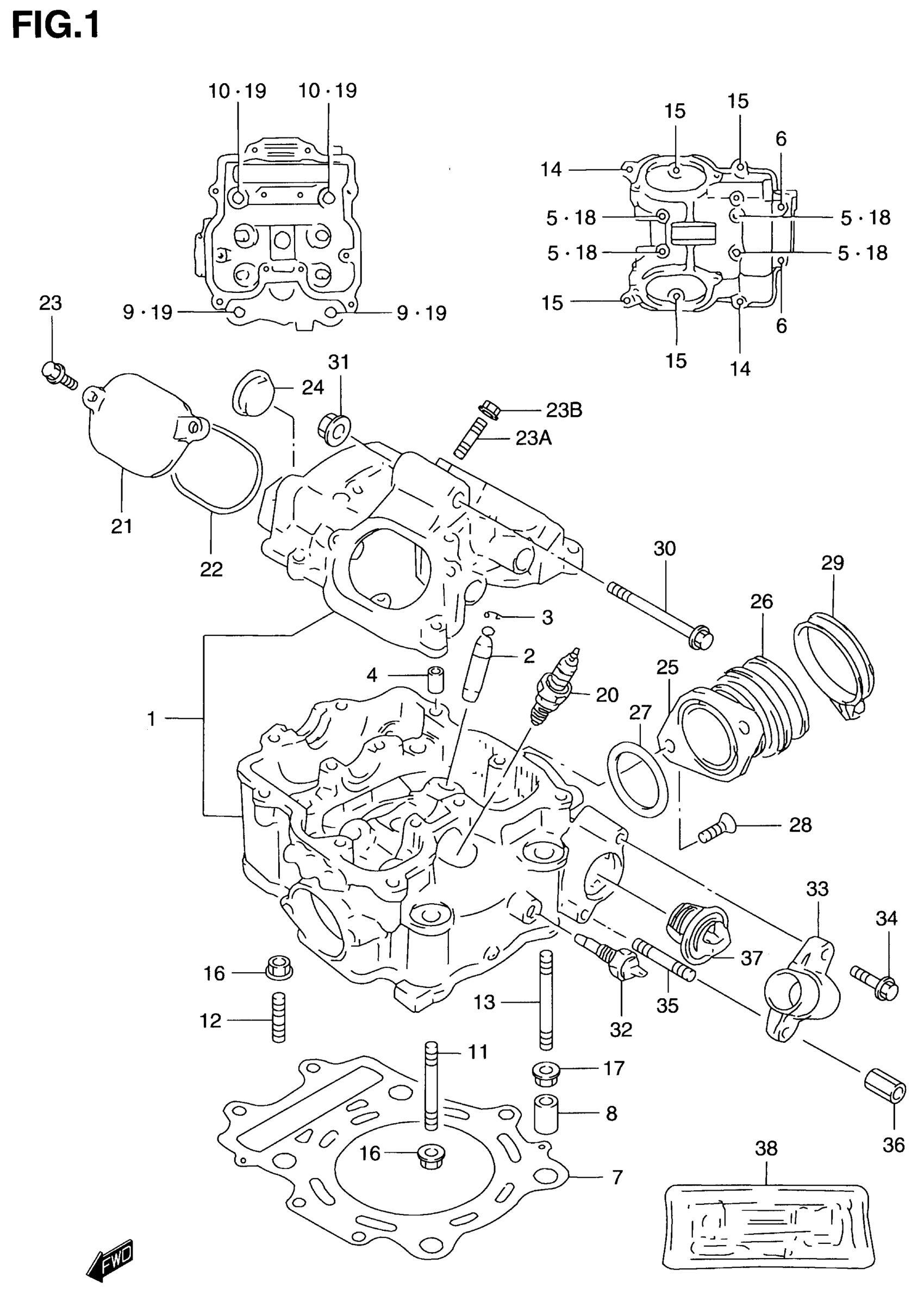

Suzuki LT-A500F (2001) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL Y

11100-09F00

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K1; Includes Item(s) 2 - 6

11100-44D00

Unavailable

2

GUIDE,VALVE (OS:0.3)

11115-14D71

$39.23

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT (6X55)

09103-06102

$2.10

6

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

7

GASKET, CYLINDER HEAD

11141-09F00

$36.41

8

PIN

04211-13189

$2.19

9

BOLT (10X190)

09103-10179

$15.32

10

BOLT (L:200)

09103-10180

$15.32

11

STUD BOLT This part replaces 01421-06253.

01421-0625A

$1.99

12

BOLT,STUD This part replaces 01421-06503.

01421-0650B

$2.98

13

STUD BOLT This part replaces 01421-08503.

01421-0850A

$3.07

14

BOLT (6X35)

09103-06108

$2.23

15

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

16

NUT This part replaces 08316-10063.

08316-1006B

$2.50

17

NUT This part replaces 08316-10083.

08316-1008B

$2.66

18

GASKET

09168-06023

$2.35

19

GASKET

09168-10017

$3.04

20

SPARK PLUG (NGK,CR6E)

09482-00528

$6.47

20

SPARK PLUG (DENSO,U20ESR-N)

09482-00529

$7.27

20

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

$6.47

20

SPARK PLUG (DENSO,U22ESR-N) | OPT

09482-00515

$5.97

20

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

20

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$6.09

21

CAP,INSPECTION

11175-47D00

$24.10

22

.O RING,INSPECTION CAP

11177-14D01

$4.60

23

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

23A

BOLT, STUD

09108-06102

$4.08

23B

NUT This part replaces 08316-10063.

08316-1006B

$2.50

24

PLUG, HEAD

09241-25007

$6.17

25

PIPE, INTAKE NO.1

13111-09F50

Unavailable

26

PIPE, INTAKE NO.2

13121-09F00

$18.84

27

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

28

SCREW

09119-06092

$2.38

29

CLAMP | MODEL Y

09402-50208

$4.77

29

CLAMP | MODEL K1

09402-52208

$5.36

30

BOLT (8X60)

09103-08217

$3.72

31

NUT

08319-31087

$2.32

32

SWITCH ASSY,WAT This part replaces 34850-44D20.

34850-44D40

$91.08

33

COVER, THERMOSTAT

17661-44D00

$44.48

34

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

35

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

36

NUT, LOWER

09159-06030

Unavailable

37

THERMOSTAT,WATE This part replaces 17670-08D10.

17670-08D11

$48.20

38

GASKET SET

11401-09820

Unavailable
