Description

Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 12000-09850.

12000-09851

Unavailable

2

ROD, CONNECTING

12161-32E00

$157.58

3

PIN, CRANK

12210-24B01-0A0

$68.60

4

BEARING (37X47X24.8) This part replaces 09263-37006.

09263-37007

$99.39

5

WASHER (37X55X1)

09160-37006

$10.58

6

CRANKSHAFT SET, RH This part replaces 12220-09850.

12220-03850

Unavailable

7

CRANKSHAFT, LH

12261-09F50

Unavailable

8

BEARING, RH (40X80X18)

09262-40008

$68.27

9

BEARING, LH (35X80X21)

09262-35009

$87.52

10

RETAINER, OIL SEAL LH

12541-46510

$8.77

11

SCREW (6X12)

09126-06011

$2.03

12

PISTON

12111-09F00-0F0

$113.18

13

RING SET, PISTON

12140-09F10

$55.70

14

PIN

12151-09F00

$24.60

15

CIRCLIP

09381-23003

$1.49

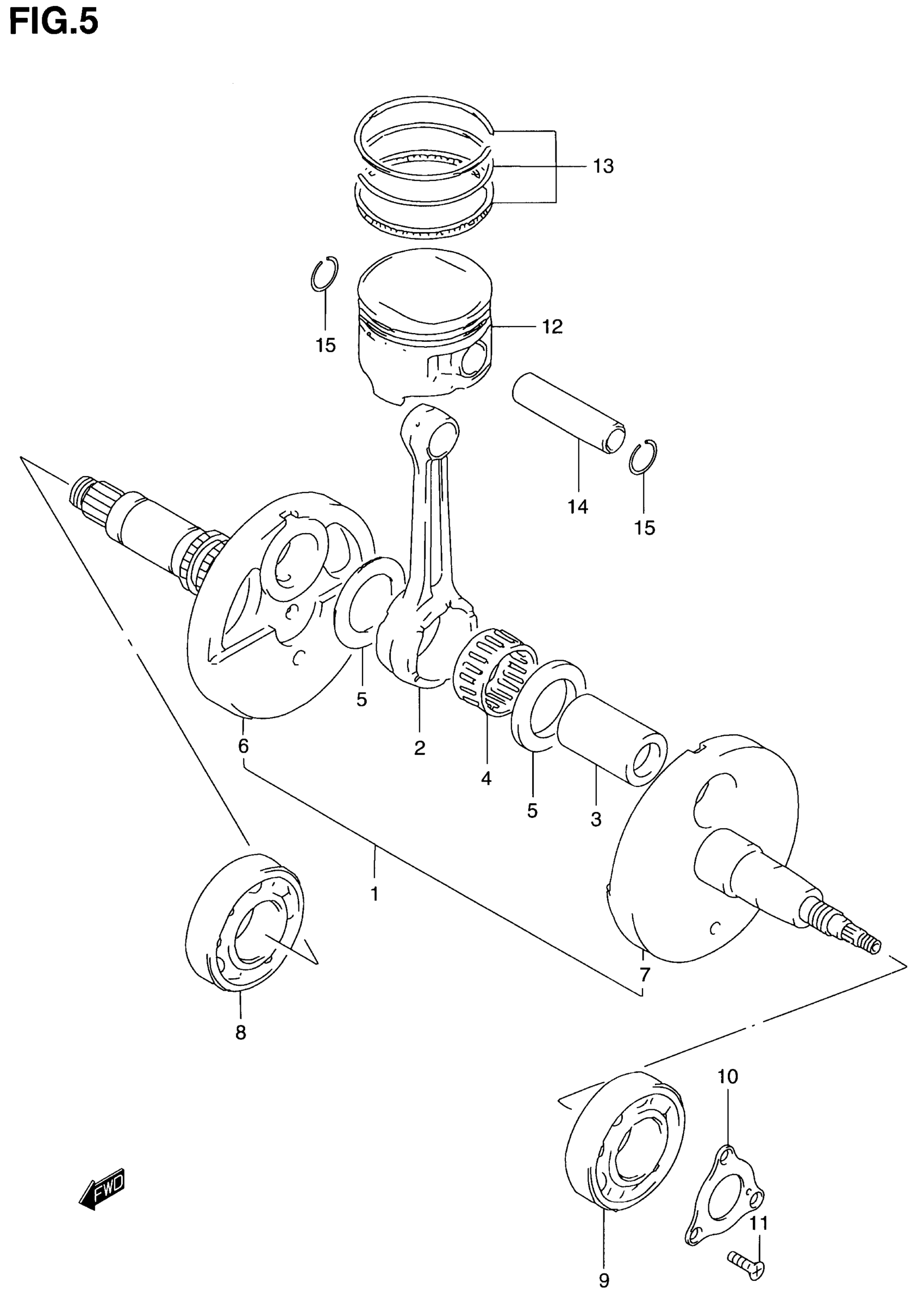

Suzuki LT-A500F (2001) CRANKSHAFT Diagram

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 12000-09850.

ROD, CONNECTING

PIN, CRANK

BEARING (37X47X24.8) This part replaces 09263-37006.

WASHER (37X55X1)

CRANKSHAFT SET, RH This part replaces 12220-09850.

CRANKSHAFT, LH

BEARING, RH (40X80X18)

BEARING, LH (35X80X21)

RETAINER, OIL SEAL LH

SCREW (6X12)

PISTON

RING SET, PISTON

PIN

CIRCLIP
