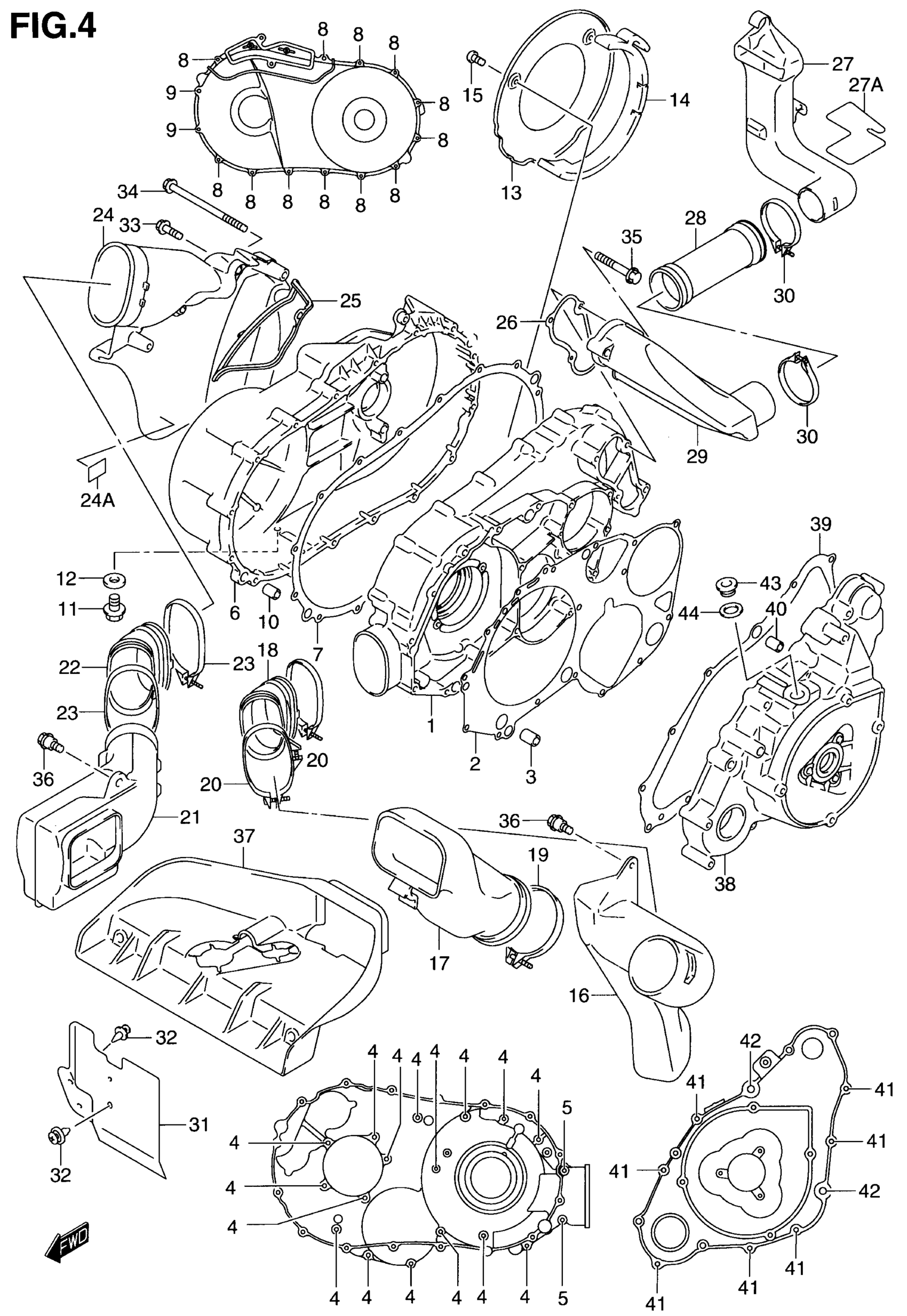

Suzuki LT-A500F (2001) CRANKCASE COVER (MODEL Y) Diagram

#

Description
Price

1

COVER, CLUTCH

11341-09F50

Unavailable

2

GASKET

11482-09F50

$23.07

3

PIN

04211-13189

$2.19

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

5

BOLT This part replaces 01547-06753.

01547-0675B

$3.93

6

COVER, V BELT

11371-09F50

Unavailable

7

GASKET

11484-09F50

$49.89

8

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

9

BOLT This part replaces 01547-06803.

01547-0680B

$3.18

10

PIN

04211-13189

$2.19

11

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

12

GASKET

09168-08029

$2.32

13

PLATE, AIR INTAKE

11343-09F50

$17.43

14

CUSHION, AIR INTAKE PLATE This part replaces 11344-09F50.

11344-09F51

Unavailable

15

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

16

DUCT, BELT COOLING FRONT NO.1

11387-09F50

Unavailable

17

DUCT, BELT COOLING FRONT NO.2

11388-09F50

Unavailable

18

CONNECTOR, COOLING DUCT FRONT NO.1

11386-09F50

Unavailable

19

CLAMP, DUCT FRONT NO.2

09402-76208

$6.62

20

CLAMP,BELT CLG DUCT FR

11389-09F50

$8.22

21

DUCT, BELT COOLING CTR

11395-09F50

Unavailable

22

CONNECTOR, DUCT CTR NO.2

11394-09F50

Unavailable

23

CLAMP,BELT CLG DUCT FR

11389-09F50

$8.22

24

CONNECTOR, DUCT CTR NO.1

11393-09F50

Unavailable

24A

CUSHION This part replaces 44281-29C00.

63191-25C00

$3.05

25

GASKET, DUCT CTR CONNECTOR

11485-09F50

Unavailable

26

GASKET, DUCT RR CONNECTOR

11486-09F50

Unavailable

27

DUCT, BELT COOLING REAR

11398-09F50

Unavailable

27A

SHIELD, BELT COOLING DUCT REAR

11487-09F50

Unavailable

28

CONNECTOR, DUCT REAR NO.2

11397-09F50

Unavailable

29

CONNECTOR, DUCT REAR NO.1

11396-09F50

Unavailable

30

..CLAMP

09402-60208

$5.11

31

GUARD, DUCT CTR

11392-09F50

Unavailable

32

CLIP

09409-06322-5PK

$3.10

33

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

34

BOLT This part replaces 01550-06953.

01550-0695B

$3.91

35

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

36

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

$2.03

37

SEPARATOR, BELT COOLING DUCT FRONT

11399-09F50

Unavailable

38

COVER, MAGNETO

11351-09F50

Unavailable

39

GASKET

11483-09F50

$18.50

40

PIN

04211-13189

$2.19

41

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

42

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

43

PLUG, TDC CHECK

09248-16012

$4.64

44

GASKET

09168-16002

$1.91
