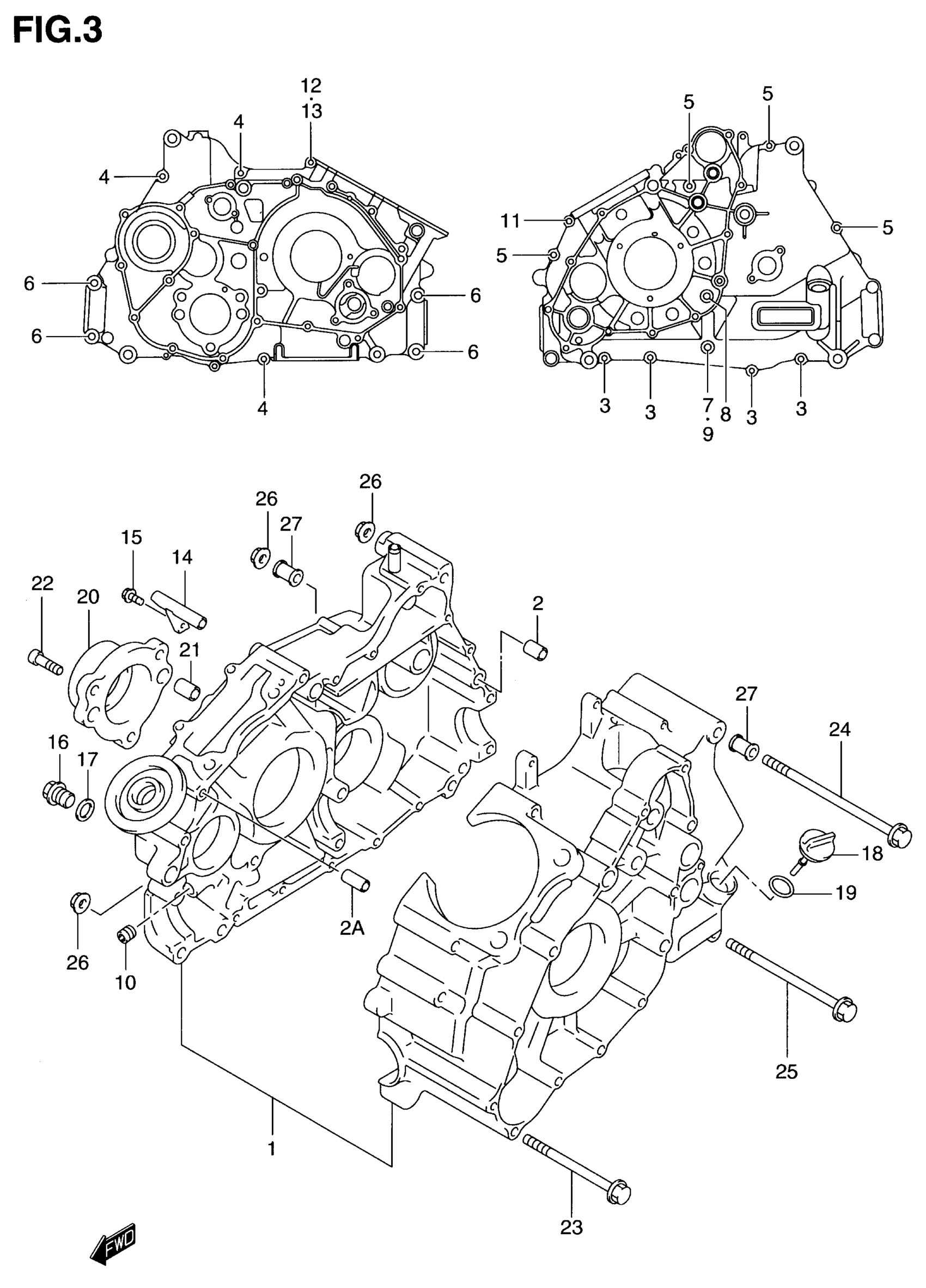

Suzuki LT-A500F (2001) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 11301-09840.

11301-09843

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K1; Includes Item(s) 2 - 13 This part replaces 11301-09860.

11301-09863

Unavailable

2

PIN

04211-13189

$2.19

2A

PIN

04211-11169

$1.78

3

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

4

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

5

BOLT This part replaces 01547-06753.

01547-0675B

$3.93

6

BOLT (8X50)

09103-08081

$3.72

7

BOLT (8X60) This part replaces 09103-08345.

09103-08217

$3.72

8

BOLT, LH (8X105)

09103-08179

Unavailable

9

GASKET (8.2X14X1)

09168-08016

$1.65

10

PLUG This part replaces 09246-05006.

09246-04009

$4.25

11

BOLT, LH (8X137)

09103-08297

$8.35

12

BOLT, RH (8X125)

09103-08182

$5.72

13

GASKET (8.2X14X1)

09168-08016

$1.65

14

PIPE, BREATHER

11317-09F50

Unavailable

15

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

16

PLUG, OIL PRESSURE

09247-14015

$4.45

17

GASKET, OIL PRESSURE PLUG

09168-14002

$2.26

18

GAUGE,OIL LEVEL

11971-09F50

$9.78

19

O RING, OIL LEVEL GAUGE

09280-17003

$1.65

20

HOUSING, SECONDARY SHAFT BEARING

11313-09F60

Unavailable

21

PIN

04211-13189

$2.19

22

BOLT This part replaces 07120-08303.

07120-0830A

$3.86

23

BOLT (10X180)

09103-10053

$11.48

24

BOLT (10X235)

09103-10239

$20.90

25

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

$10.40

26

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

27

SPACER, ENGINE MOUNTING (L:30) This part replaces 11611-09F50.

11611-09F51

$17.67
