Description

Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 22

13700-09F50

Unavailable

2

FILTER

13780-09F00

$31.38

3

HOLDER

13791-04F00

$12.61

4

WASHER

13792-13A01

$4.34

5

BOLT This part replaces 09119-06062.

09119-06134

$2.62

6

TUBE, OUTLET

13881-09F50

Unavailable

7

CLAMP

09402-88208

$6.90

8

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

9

TUBE, BREATHER

13850-09F50

Unavailable

10

CLIP

09401-14301

$2.35

11

TUBE, DRAIN

13870-09F50

Unavailable

12

CLIP

09401-14301

$2.35

13

.PLUG

13859-41B10

$7.38

14

CLIP

09401-14301

$2.35

15

SCREW This part replaces 02142-05163.

02142-0516A

$1.49

16

INLET,AIR CLEAN This part replaces 13890-09F00.

13890-09F01

Unavailable

17

GASKET

13746-09F00

Unavailable

18

DUCT, INLET

13896-09F00

Unavailable

19

JOINT, INLET

13891-09F00

Unavailable

20

..CLAMP

09402-60208

$5.11

21

HEAT GUARD

13841-09F00

Unavailable

22

SCREW, TAPPING

13831-06F00

Unavailable

23

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

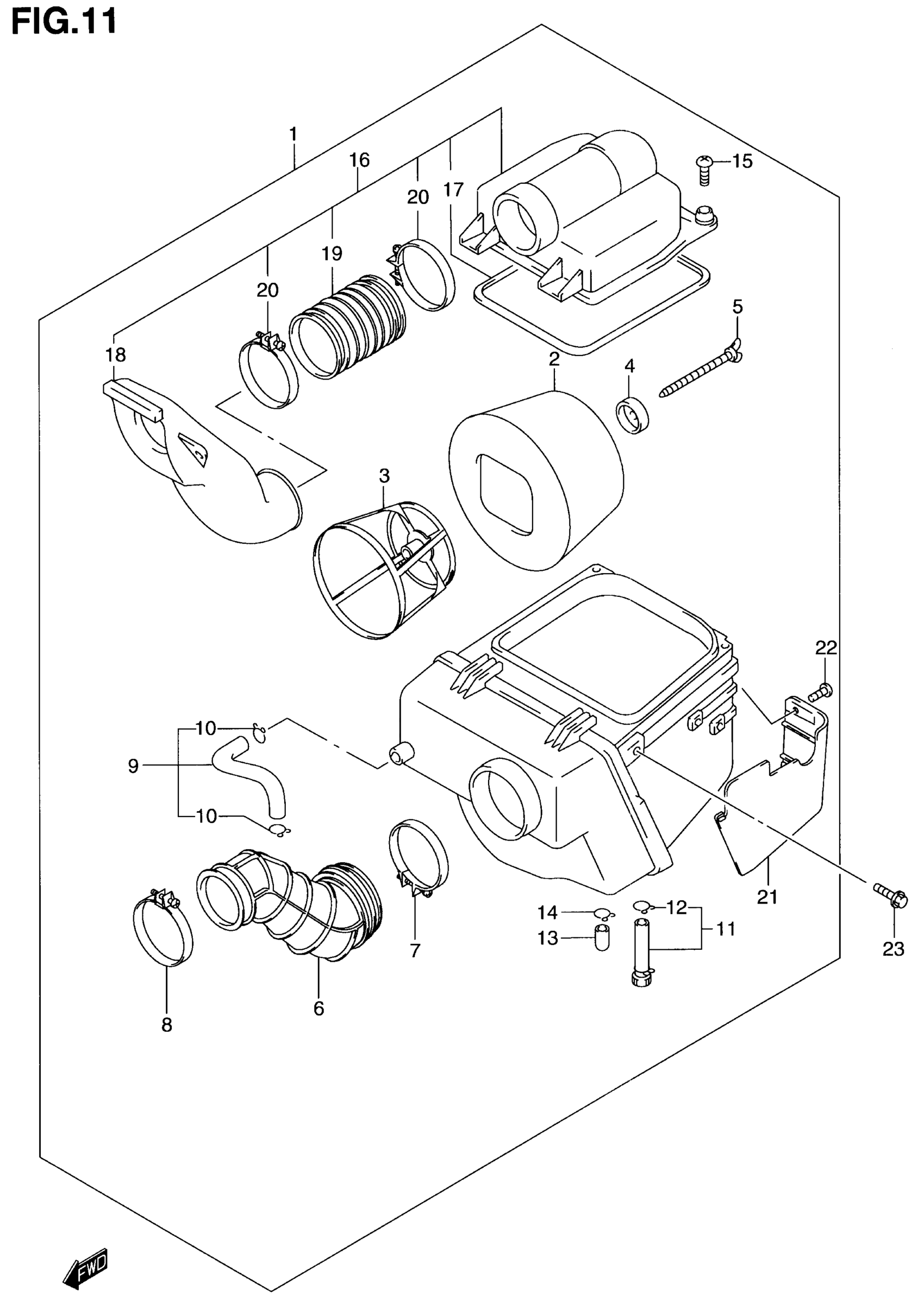

Suzuki LT-A500F (2001) AIR CLEANER Diagram

CLEANER ASSY, AIR | Includes Item(s) 2 - 22

FILTER

HOLDER

WASHER

BOLT This part replaces 09119-06062.

TUBE, OUTLET

CLAMP

CLAMP This part replaces 09402-56208.

TUBE, BREATHER

CLIP

TUBE, DRAIN

CLIP

.PLUG

CLIP

SCREW This part replaces 02142-05163.

INLET,AIR CLEAN This part replaces 13890-09F00.

GASKET

DUCT, INLET

JOINT, INLET

..CLAMP

HEAT GUARD

SCREW, TAPPING

BOLT (6X12) This part replaces 09103-06083.
