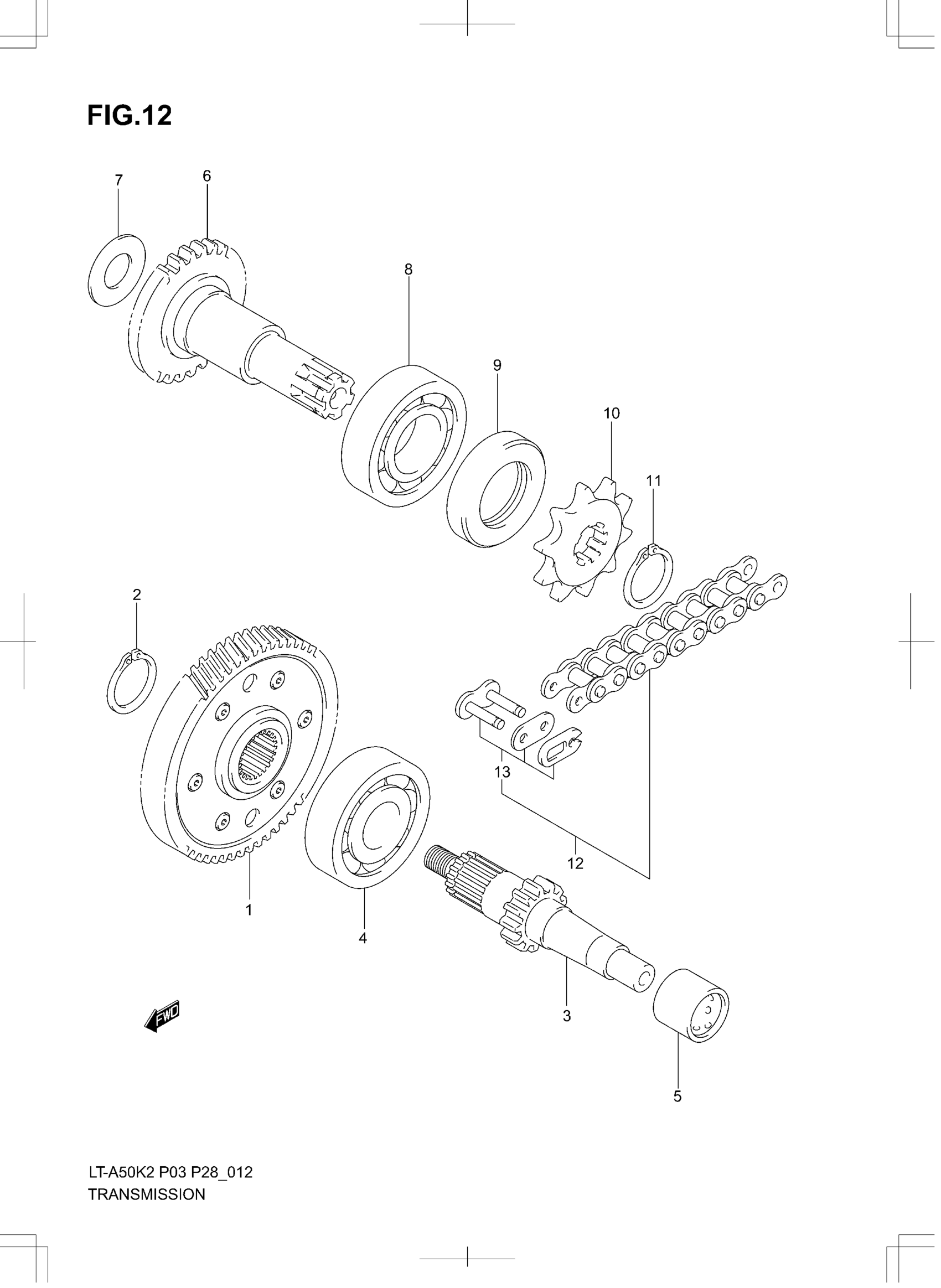

Suzuki LT-A50 (2005) TRANSMISSION Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-04501

Unavailable

2

CIRCLIP

09380-17003

$2.45

3

COUNTER SHAFT

24121-04400

Unavailable

4

BEARING (17X40X12)

09262-17023

$16.75

5

BUSHING, COUNTER SHAFT

09304-10005

$5.65

6

DRIVE SHAFT

24130-04400

Unavailable

7

WASHER (17X30X1.0)

09181-17223

$2.96

8

BEARING (17X40X12)

09262-17023

$16.75

9

OIL SEAL CRANKS This part replaces 09283-17010.

09283-17012

$7.31

10

SPROCKET, ENGINE (NT:10)

27511-22600

$18.63

11

CIRCLIP This part replaces 08331-31166.

08331-31169

$1.78

12

CHAIN ASSY,DRIV | L:78!64; Includes Item(s) 13 - 13 This part replaces 27600-01011-078.

27600-01012-078

$20.71

13

JOINT (RK)

27620-01023

Unavailable

13

JOINT (DID)

27620-01012

$6.87
