2005 Suzuki LT-A50 Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 2005 Suzuki LT-A50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

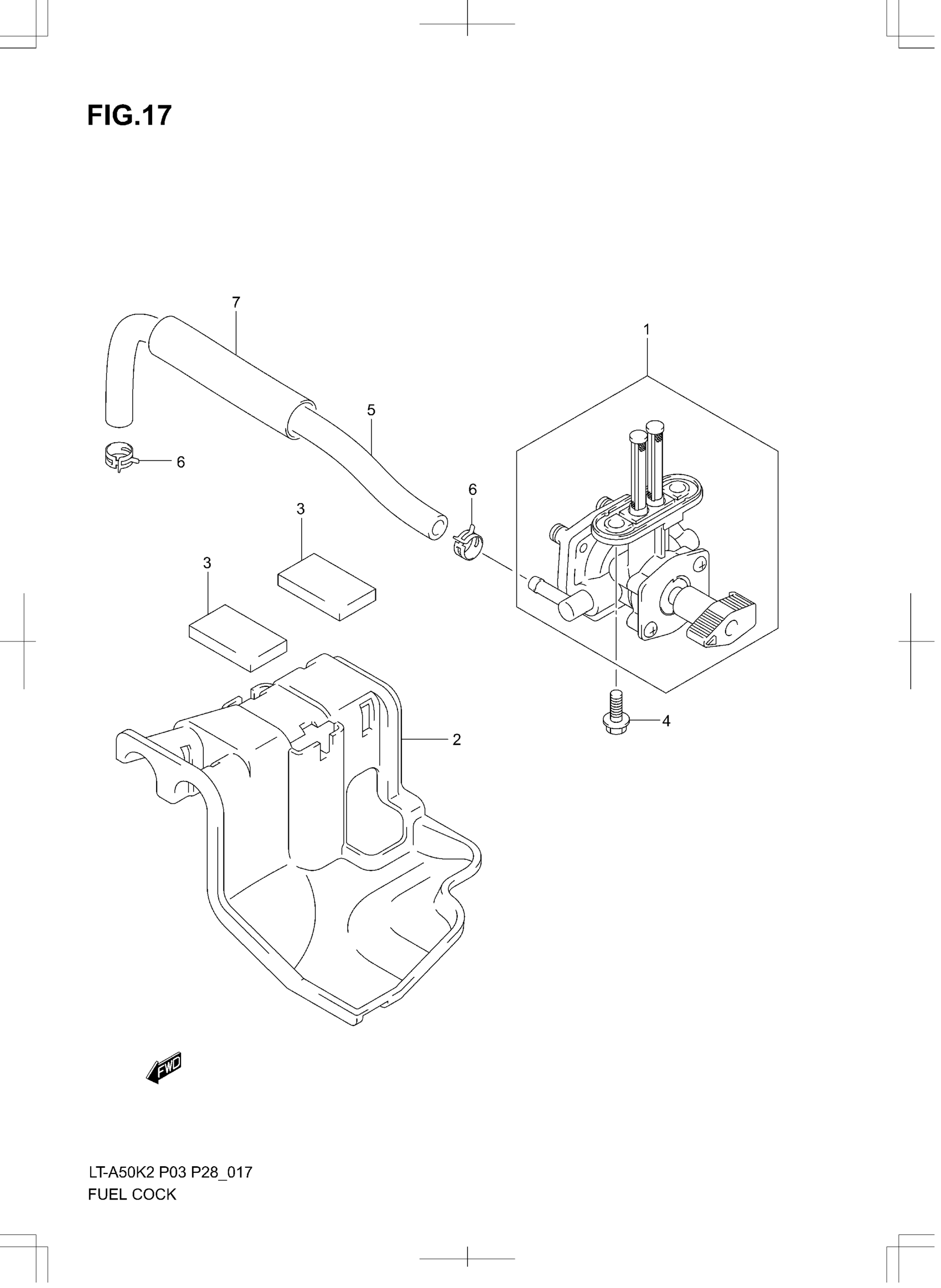

2005 Suzuki LT-A50 Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$90.88

In stock

2

COVER, FUEL COCK

44461-43F00

1
Out of stock

3

2

$7.57

In stock

4

BOLT This part replaces 01547-06163.

01547-0616B

2
Out of stock

5

1

$11.60

In stock

6

CLIP (ID:9.4,H:8)

09401-09403

2
Out of stock

7

PROTECTOR (L:600!70)

09351-14152-600

1

$10.49

In stock
← Carburetor Fuel Tank →

More Air & Fuel diagrams
