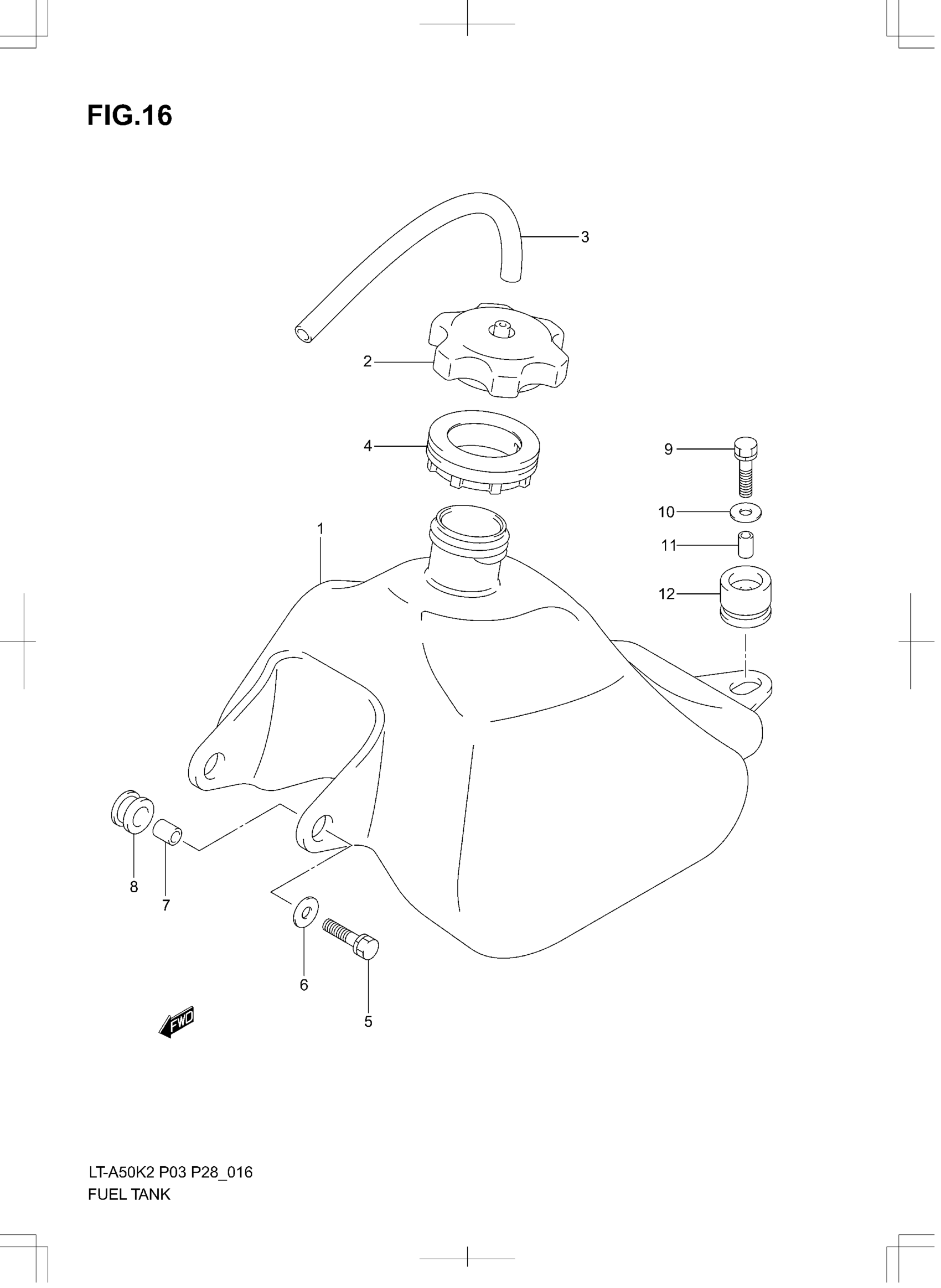

Suzuki LT-A50 (2005) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-43F00

Unavailable

2

CAP ASSY, FUEL TANK

44200-09AA0

$71.92

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.08

4

RUBBER, FUEL INLET

44261-43F00

$12.28

5

BOLT This part replaces 01570-06253.

01570-0625B

$3.30

6

WASHER (6.5X18X1.0)

09160-06028

$1.43

7

SPACER

09180-06289

$2.58

8

CUSHION This part replaces 09320-10008.

09320-10075

$1.95

9

BOLT This part replaces 01570-06253.

01570-0625B

$3.30

10

WASHER (6.5X18X1.0)

09160-06028

$1.43

11

SPACER

09180-06267

$4.45

12

CUSHION,FUEL TANK REAR

44541-43F00

$8.62
