Description

Price

1

PLATE,FRONT BRAKE,R

54511-43F00

Unavailable

2

PLATE,FRONT BRAKE,L

54811-43F00

Unavailable

3

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

4

SHOE SET,BRAKE

54400-40810

$17.69

5

SPRING, BRAKE SHOE

09443-06029

$2.44

6

CAM, FRONT BRAKE

54441-02301

$16.87

7

O RING, (ID:9.8,OD:1.90)

09280-10016

$3.37

8

SEAL,FRONT BRAKE DUST

54124-43F00

$32.67

9

LEVER,FRONT BRAKE CAM

54450-43F00

Unavailable

10

SPRING

09443-10044

$5.18

11

BOLT, CAM LEVER (5X27)

09103-05012

$2.38

12

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

13

NUT This part replaces 08316-10053.

08316-1005A

$2.19

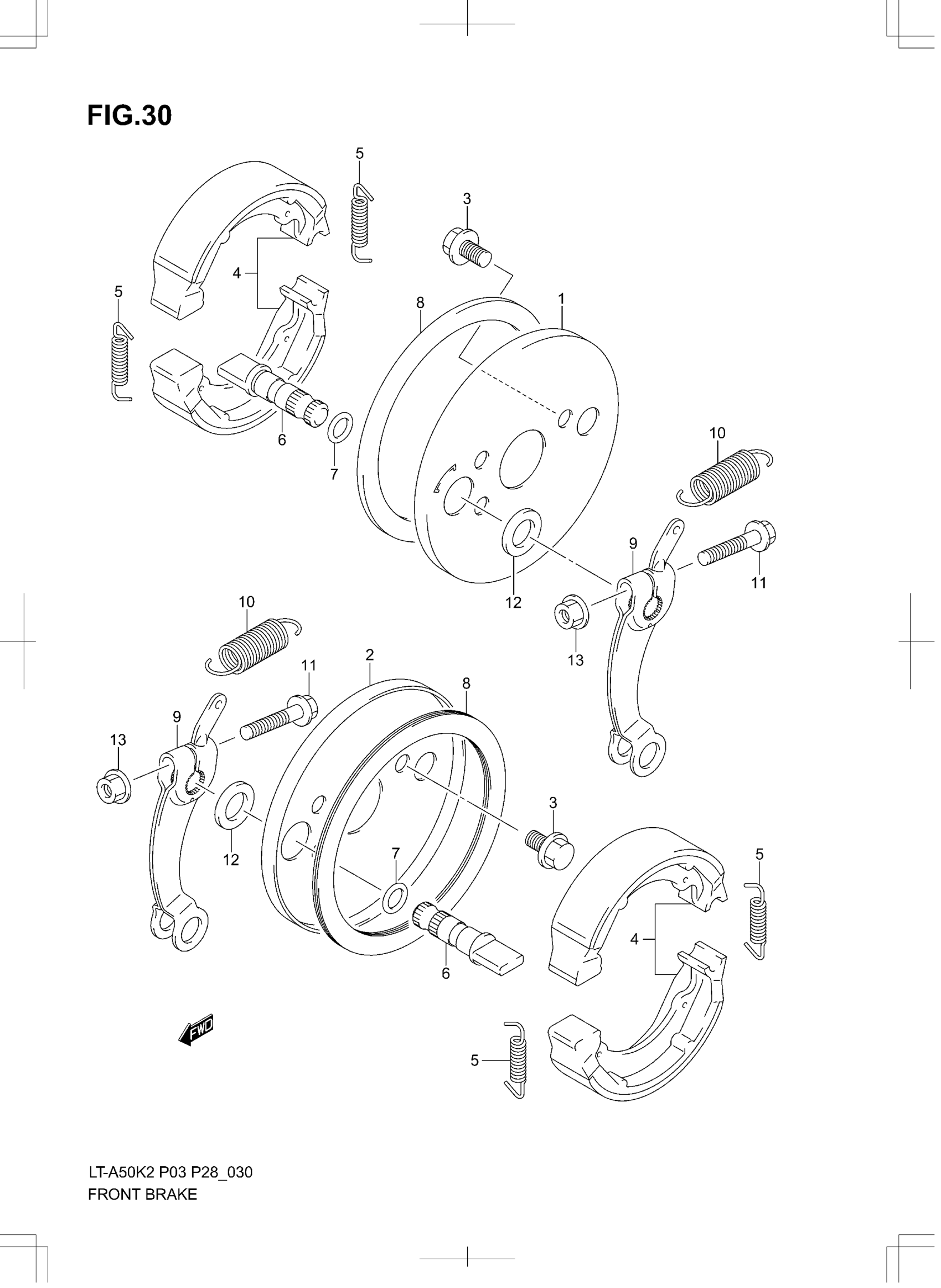

Suzuki LT-A50 (2005) FRONT BRAKE Diagram

PLATE,FRONT BRAKE,R

PLATE,FRONT BRAKE,L

BOLT This part replaces 01547-06103.

SHOE SET,BRAKE

SPRING, BRAKE SHOE

CAM, FRONT BRAKE

O RING, (ID:9.8,OD:1.90)

SEAL,FRONT BRAKE DUST

LEVER,FRONT BRAKE CAM

SPRING

BOLT, CAM LEVER (5X27)

WASHER, KNUCKLE END This part replaces 08322-01103.

NUT This part replaces 08316-10053.
