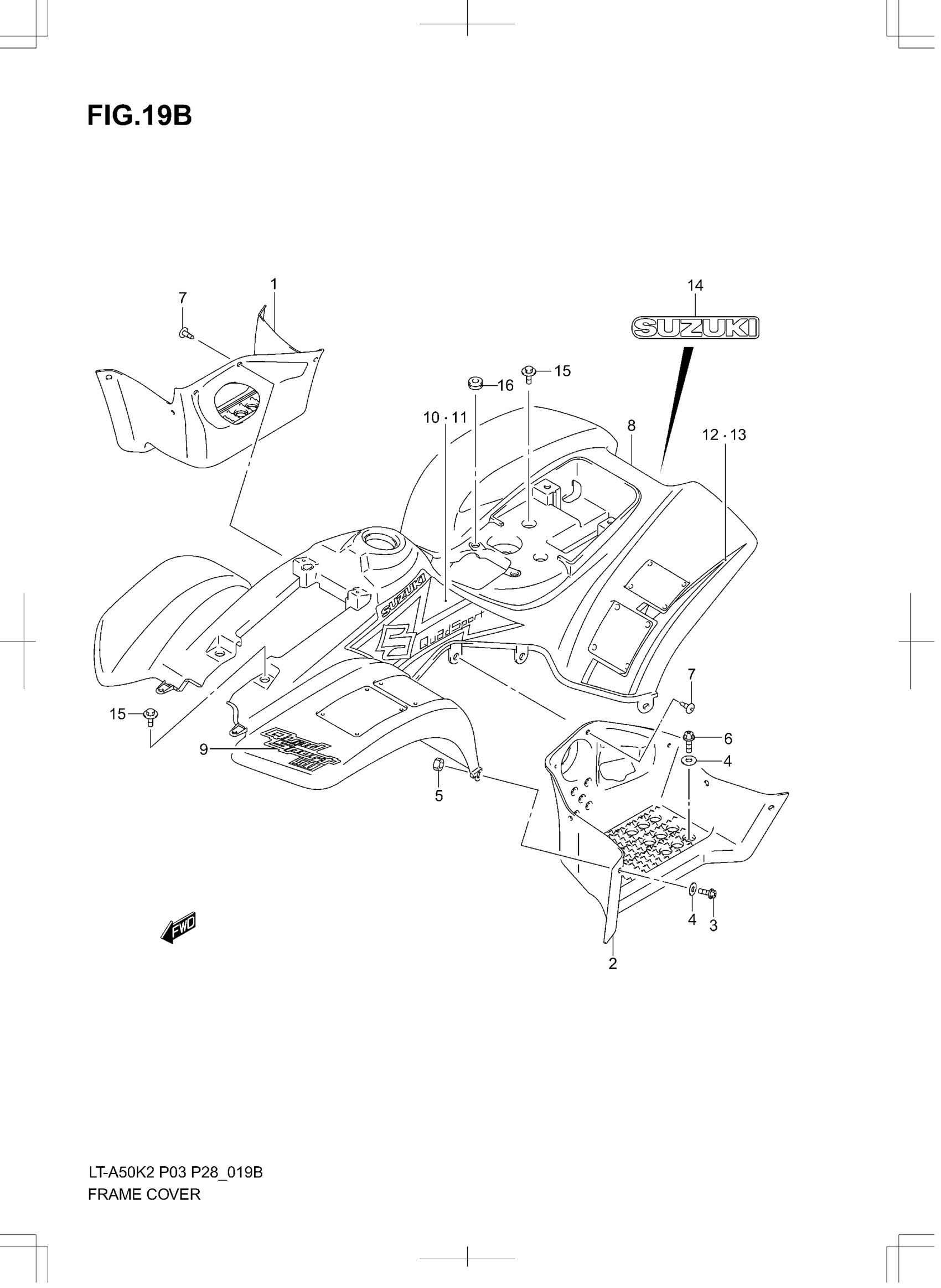

Suzuki LT-A50 (2005) FRAME COVER (MODEL K4) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47111-43F00-291

$78.66

2

COVER, FRAME LH (BLACK)

47211-43F00-291

$78.66

3

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

4

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49

5

NUT This part replaces 08319-31063.

08319-3106A

$2.03

6

BOLT This part replaces 02162-06203.

02162-0620C

$1.71

7

CLIP (BLACK)

09409-06314-5PK

$2.78

8

COVER,FRAME CEN | P3 This part replaces 47311-43F00-YT9.

47311-43F02-YT9

$454.97

8

COVER, FRAME CENTER (RED) | P28

47311-43F20-YT9

Unavailable

8

COVER,FRAME CEN | P3 This part replaces 47311-43F00-YU1.

47311-43F02-YU1

$454.97

8

COVER, FRAME CENTER (YELLOW) | P28

47311-43F20-YU1

Unavailable

9

EMBLEM, "QUAD SPORT" | FOR YT9

68131-43FD0-LZ2

$23.47

9

EMBLEM, "QUAD SPORT" | FOR YU1

68131-43FD0-LZ1

Unavailable

10

TAPE, CENTER RH | FOR YT9

68135-43F10-LY7

Unavailable

10

TAPE, CENTER RH | FOR YU1

68135-43F10-KD2

$125.38

11

TAPE, CENTER LH | FOR YT9

68145-43F10-LY7

Unavailable

11

TAPE, CENTER LH | FOR YU1

68145-43F10-KD2

$125.38

12

TAPE, REAR RH | FOR YT9

68135-43F20-LY9

Unavailable

12

TAPE, REAR RH | FOR YU1

68135-43F20-LY8

Unavailable

13

TAPE, REAR LH | FOR YT9

68145-43F20-LY9

Unavailable

13

TAPE, REAR LH | FOR YU1

68145-43F20-LY8

Unavailable

14

EMBLEM, "SUZUKI" | FOR YT9

68131-43FA0-LZ3

Unavailable

14

EMBLEM, "SUZUKI" | FOR YU1

68131-43FA0-GY8

Unavailable

15

BOLT, CENTER

09111-06081

$4.09

16

CUSHION

09320-12031

$2.34
