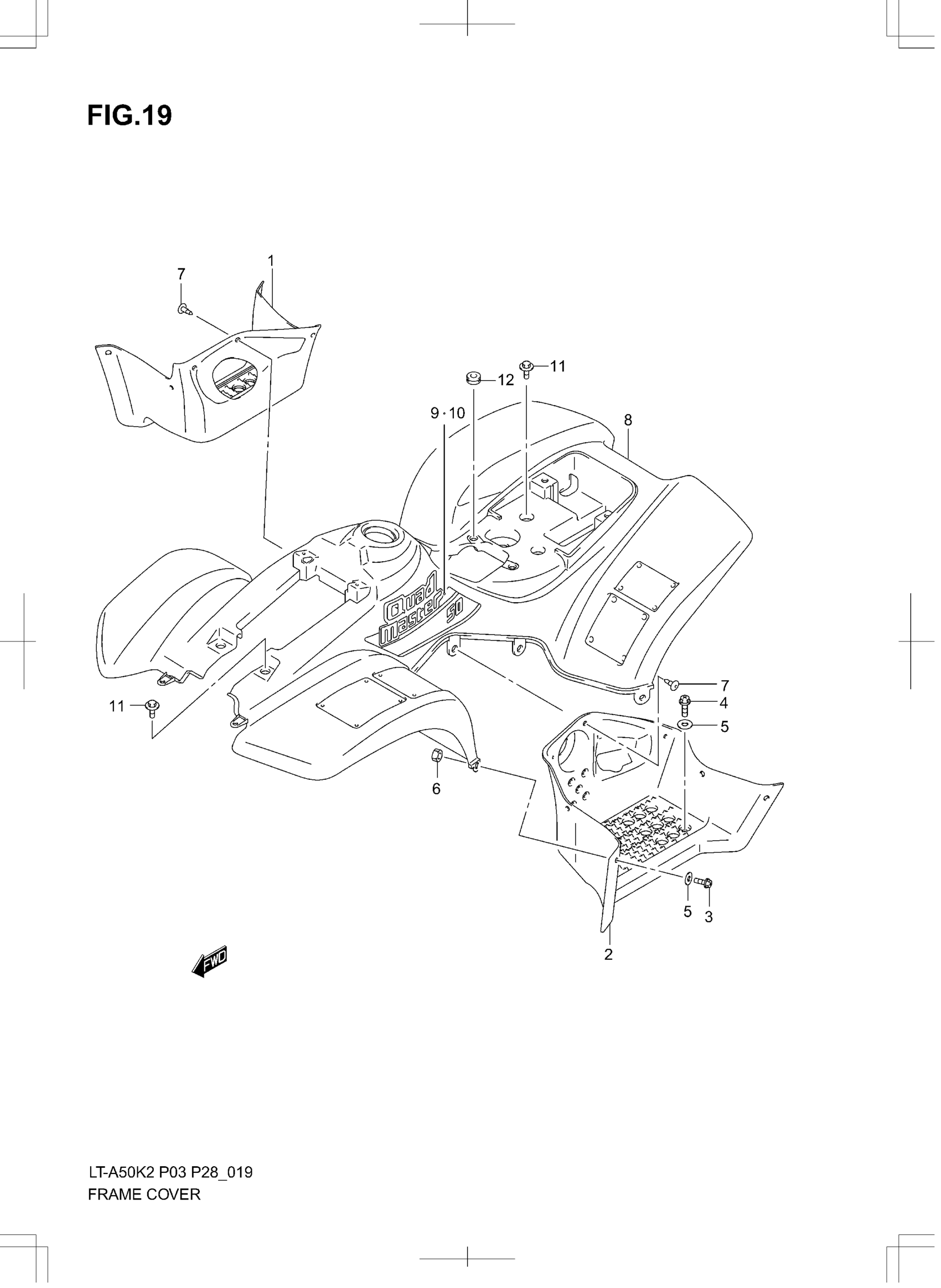

Suzuki LT-A50 (2005) FRAME COVER (MODEL K2) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47111-43F00-291

$78.66

2

COVER, FRAME LH (BLACK)

47211-43F00-291

$78.66

3

SCREW This part replaces 02142-16163.

02142-1616B

$2.30

4

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

5

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49

6

NUT This part replaces 08319-31063.

08319-3106A

$2.03

7

CLIP (BLACK)

09409-06314-5PK

$2.78

8

COVER,FRAME CEN This part replaces 47311-43F00-YT9.

47311-43F02-YT9

$454.97

8

COVER,FRAME CEN This part replaces 47311-43F00-YU1.

47311-43F02-YU1

$454.97

9

EMBLEM, RH | FOR YT9

68131-43F00-GB4

Unavailable

9

EMBLEM, RH | FOR YU1

68131-43F00-GB5

Unavailable

10

EMBLEM, LH | FOR YT9

68141-43F00-GB4

Unavailable

10

EMBLEM, LH | FOR YU1

68141-43F00-GB5

Unavailable

11

BOLT (6X18) This part replaces 63161-35F00.

09111-06081

$4.09

12

CUSHION

09320-12031

$2.34
