Description

Price

1

HEAD, CYLINDER

11111-04001

$92.70

2

GASKET, CYLINDER HEAD

11141-04000

$5.05

3

NUT This part replaces 08316-10063.

08316-1006B

$2.50

4

NO DESCRIPTION AVAILABLE | MODEL K2 This part replaces 11210-04010-0F0.

11210-04012-0F0

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL K3/K4/K5 This part replaces 11210-04011-0F0.

11210-04012-0F0

Unavailable

5

GASKET, CYLINDER

11241-04010

$3.62

6

STUD BOLT (L:90)

09108-06108

$3.76

7

HOSE(4.5X8.5X60 | L:600!130 This part replaces 09355-45855-600.

09355-45001-600

$9.48

8

PIPE, INTAKE

13110-04600

$34.48

9

GASKET, INTAKE PIPE

13121-04000-H17

$2.94

10

BOLT This part replaces 01570-06453.

01570-0645A

$3.03

11

SPARK PLUG (NGK,BPR4H)

09482-00136

$3.50

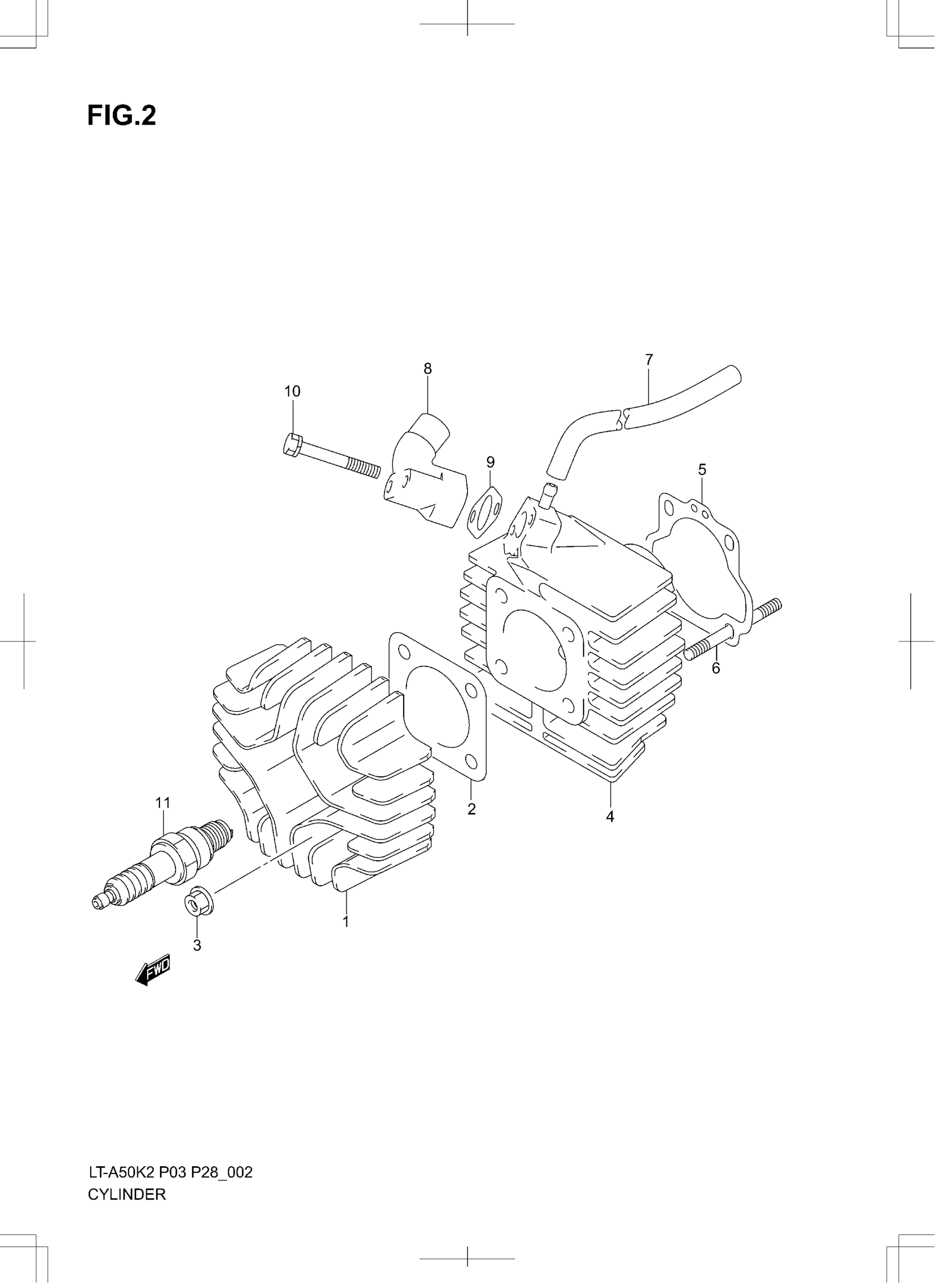

Suzuki LT-A50 (2005) CYLINDER Diagram
