Description

Price

1

PISTON (STD)

12110-35614-0F0

$59.39

2

RING SET, PISTON (STD)

12140-16B10

$22.39

2

RING SET, PISTON (OS:0.5) | OPT

12140-46110-050

$28.25

2

RING SET, PISTON (OS:1.0) | OPT

12140-46110-100

$28.38

3

PIN, PISTON

12151-04700

$7.22

4

BEARING, PISTON PIN | 12X16X15.8

09263-12023

$10.19

5

SNAP RING

09381-12001

$1.49

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 11

12200-04001

$405.63

7

CRANKSHAFT, RH

12221-04000

Unavailable

8

CRANKSHAFT, LH

12261-04000

Unavailable

9

ROD, CONNECTING

12161-04001

$75.58

10

BEARING (15X21X9.8)

09263-15014

$14.07

11

PIN, CRANK

12211-04000

$16.78

12

SEAL,OIL(22X40X This part replaces 09283-22001.

09283-22037

$3.88

13

BEARING (17X40X12)

09262-17023

$16.75

14

OIL SEAL CRANKS This part replaces 09283-17010.

09283-17012

$7.31

15

PISTON SET (OS:0.5) | OPT

12100-35611-050

$77.92

15

PISTON SET (OS:1.0) | OPT

12100-35611-100

$93.43

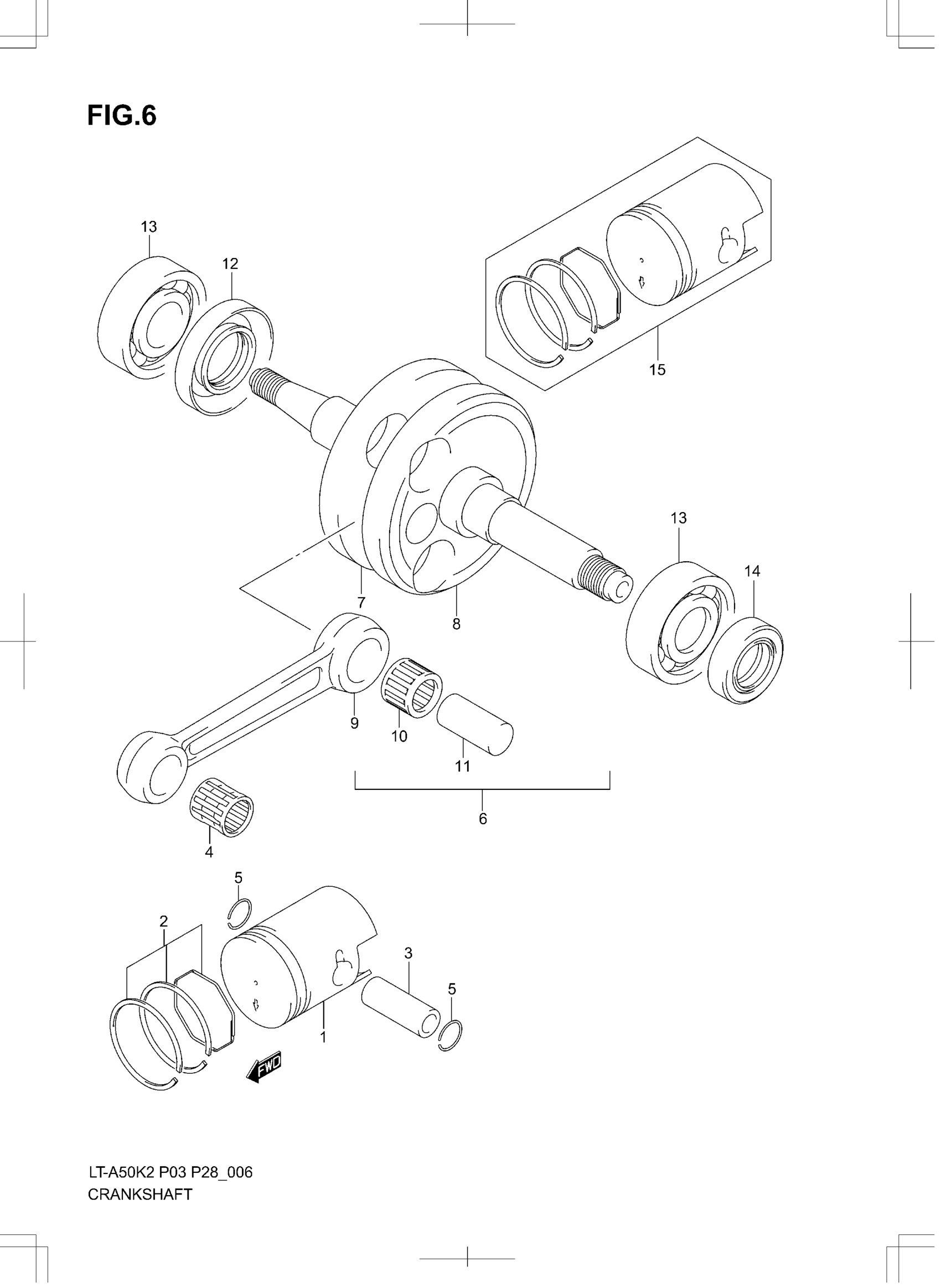

Suzuki LT-A50 (2005) CRANKSHAFT Diagram
