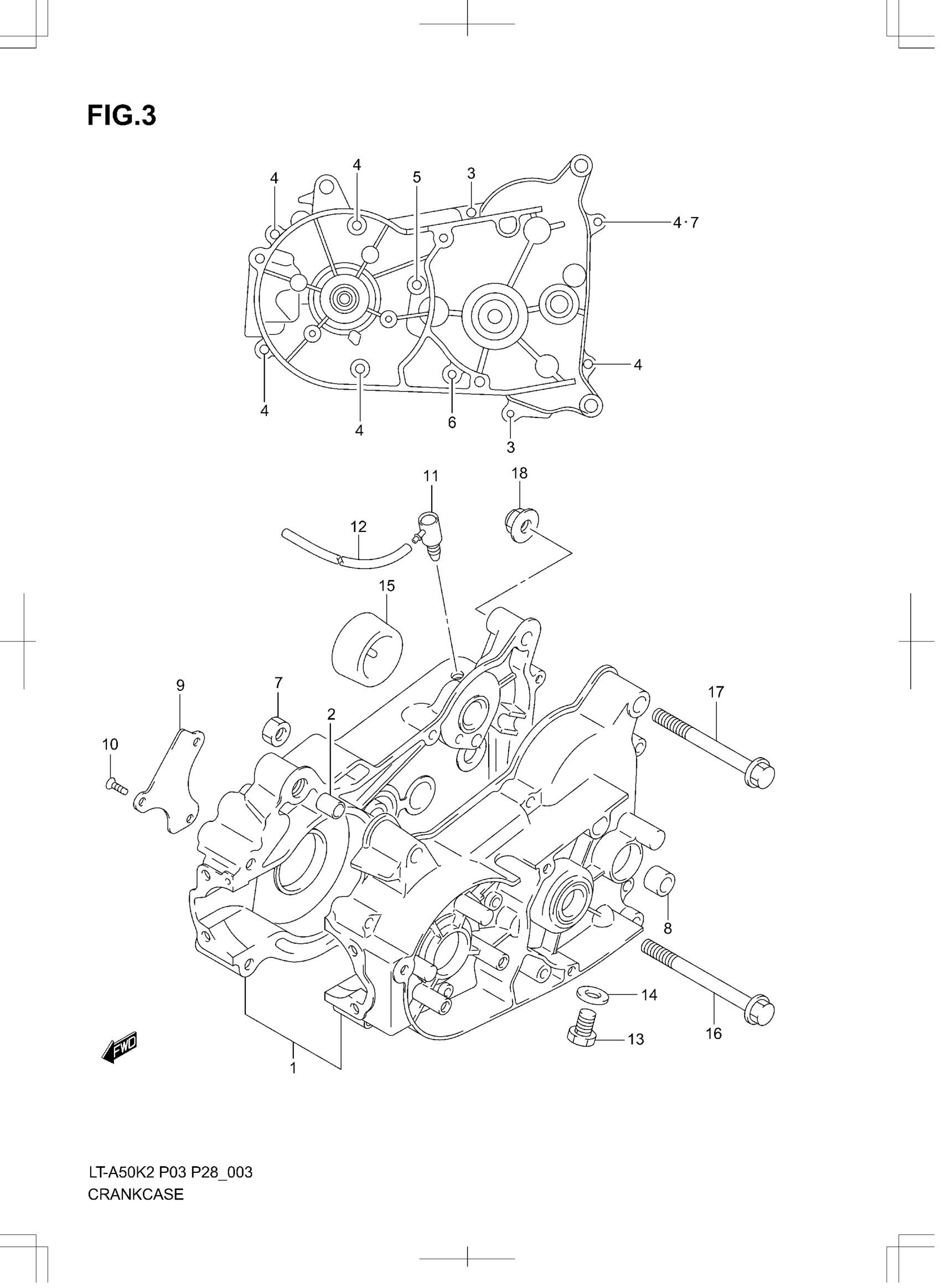

Suzuki LT-A50 (2005) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 8 This part replaces 11300-04883.

11300-04884

Unavailable

2

PIN

04211-11129

$1.76

3

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.78

4

SCREW This part replaces 02112-06353.

02112-0635B

$2.19

5

SCREW This part replaces 02112-06403.

02112-0640A

$1.96

6

SCREW This part replaces 02112-06553.

02112-0655B

$2.53

7

NUT This part replaces 08310-00063.

08310-0006A

$1.84

8

BUSH, COUNTER SHAFT

09304-10005

$5.65

9

PLATE, OIL RESERVOIR

12521-04000

Unavailable

10

SCREW This part replaces 02122-04103.

02122-0410A

$1.49

11

PLUG, BREATHER

24821-45100

$9.00

12

HOSE(2X5X600) | L:600!330 This part replaces 09352-20503-600.

09352-20504-600

$6.70

13

PLUG, OIL DRAIN | MODEL K2

09247-10008

$1.97

13

PLUG, OIL DRAIN | MODEL K3/K4/K5

09247-10001

$2.20

14

GASKET

09168-10002

$2.13

15

SEPARATOR, BREATHER

24829-04410

$6.17

16

BOLT (L:75)

09103-08158

$6.80

17

BOLT (8X70) This part replaces 01550-08703.

01550-0870B

Unavailable

18

NUT This part replaces 08319-31083.

08319-3108A

$2.32
