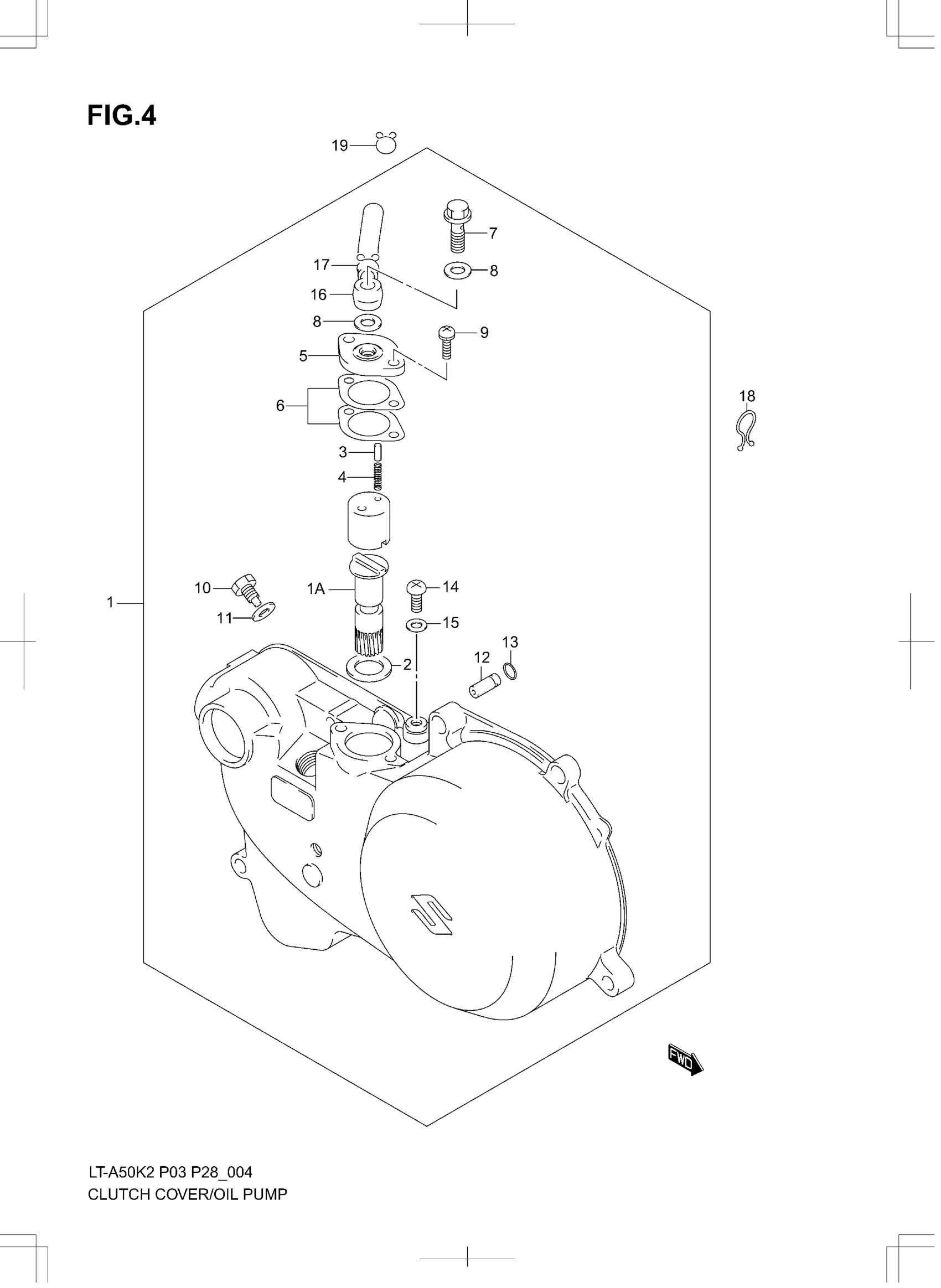

Suzuki LT-A50 (2005) CLUTCH COVER - OIL PUMP Diagram

#

Description
Price

1

COVER SET,CLUTC | MODEL K2/K3 INC. CLUTCH COVER This part replaces 11300-04893.

11300-04894

Unavailable

1

CLUTCH COVER SET | MODEL K4/K5 INC. CLUTCH COVER; Includes Item(s) 1A - 17

11301-04810

Unavailable

1A

GEAR, OIL PUMP DRIVE | NT:23

16161-04000

$40.85

2

OIL SEAL (12X18.5X3)

09284-12004

$5.79

3

PLUNGER, SUB

09261-02006

$1.72

4

SPRING

09440-01001

$1.72

5

CAM, OIL PUMP

16251-04000

Unavailable

6

GASKET, OIL PUMP

16731-04000-H17

$3.02

7

UNION BOLT

09360-06003

$3.76

8

GASKET

09168-06004

$1.49

9

SCREW This part replaces 02112-34123.

02112-3412B

$2.30

10

STOPPER

09135-06007

$2.24

11

GASKET

09164-06003

$2.07

12

CHECK VALVE

16710-04010

Unavailable

13

O RING

09280-03003

$1.91

14

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

15

GASKET (5X9.5X1)

09168-05001

$1.98

16

HOSE, OIL NO.1

16810-04420

Unavailable

17

CLIP

09401-08401

$1.54

18

CLAMP

09408-00012

$2.13

19

CLIP

09401-08401

$1.54
