Description

Price

1

GEAR ASSY, PRIMARY DRIVE

21110-04410

$266.79

2

WASHER (14X29X1.5) This part replaces 09160-14046.

09160-14046-XC0

$4.83

3

THRUST WASHER (14X24X3)

09160-14012

$4.68

4

SPACER (14X19X18)

09180-14003

$15.42

5

CLUTCH ASSY This part replaces 21500-04411.

21500-04412

$144.70

6

NUT

09159-12012

$18.02

7

WASHER (12.2X22X1.2)

09164-12020

$2.35

8

OIL SEAL

09284-08001

$2.42

9

KEY

09421-03003

$3.37

10

THRUST WASHER (32X38X1)

09181-32111

$5.83

11

PLATE

21471-04410

$11.95

12

WAVE WASHER

09164-32002

$6.88

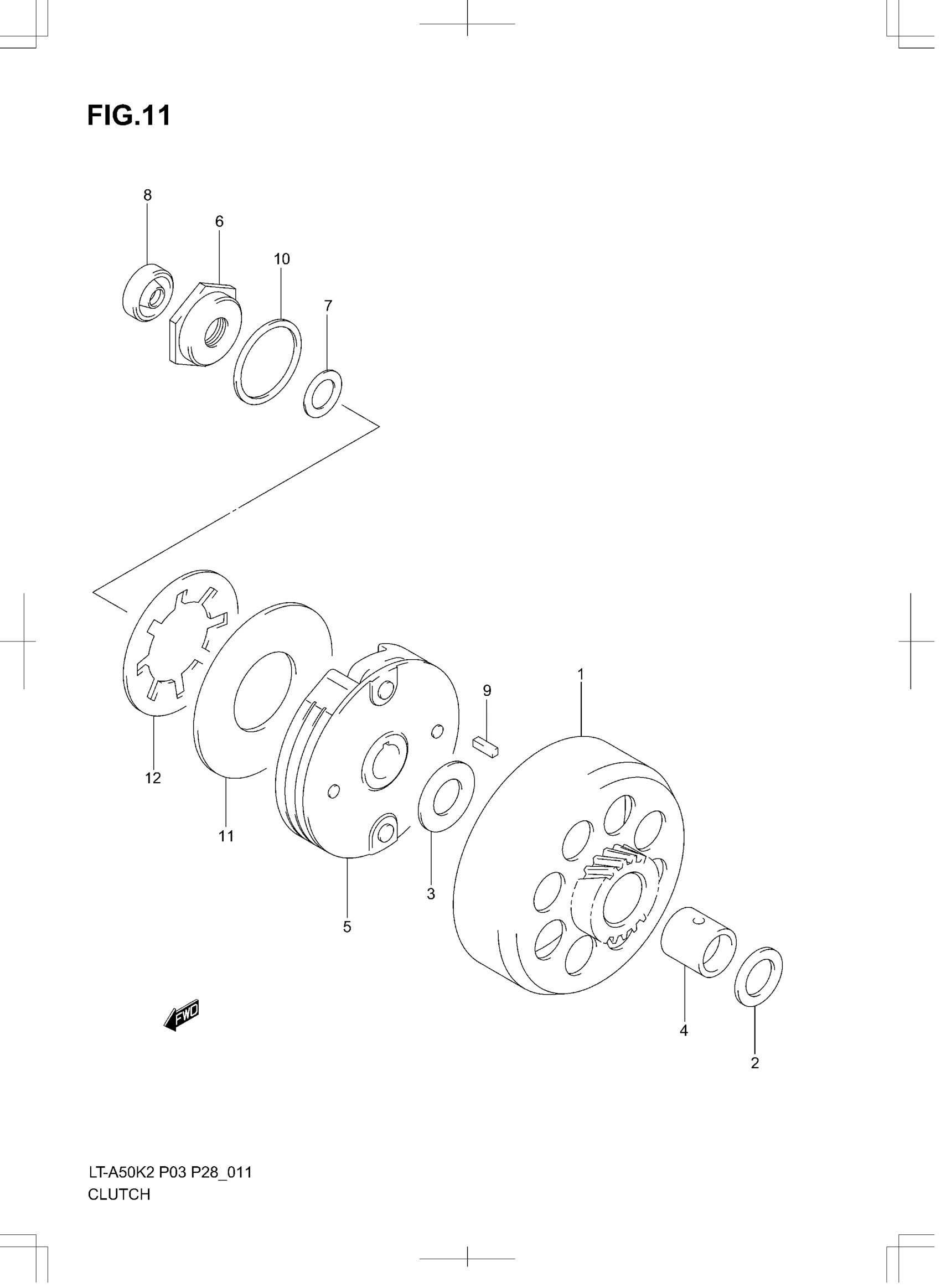

Suzuki LT-A50 (2005) CLUTCH Diagram
