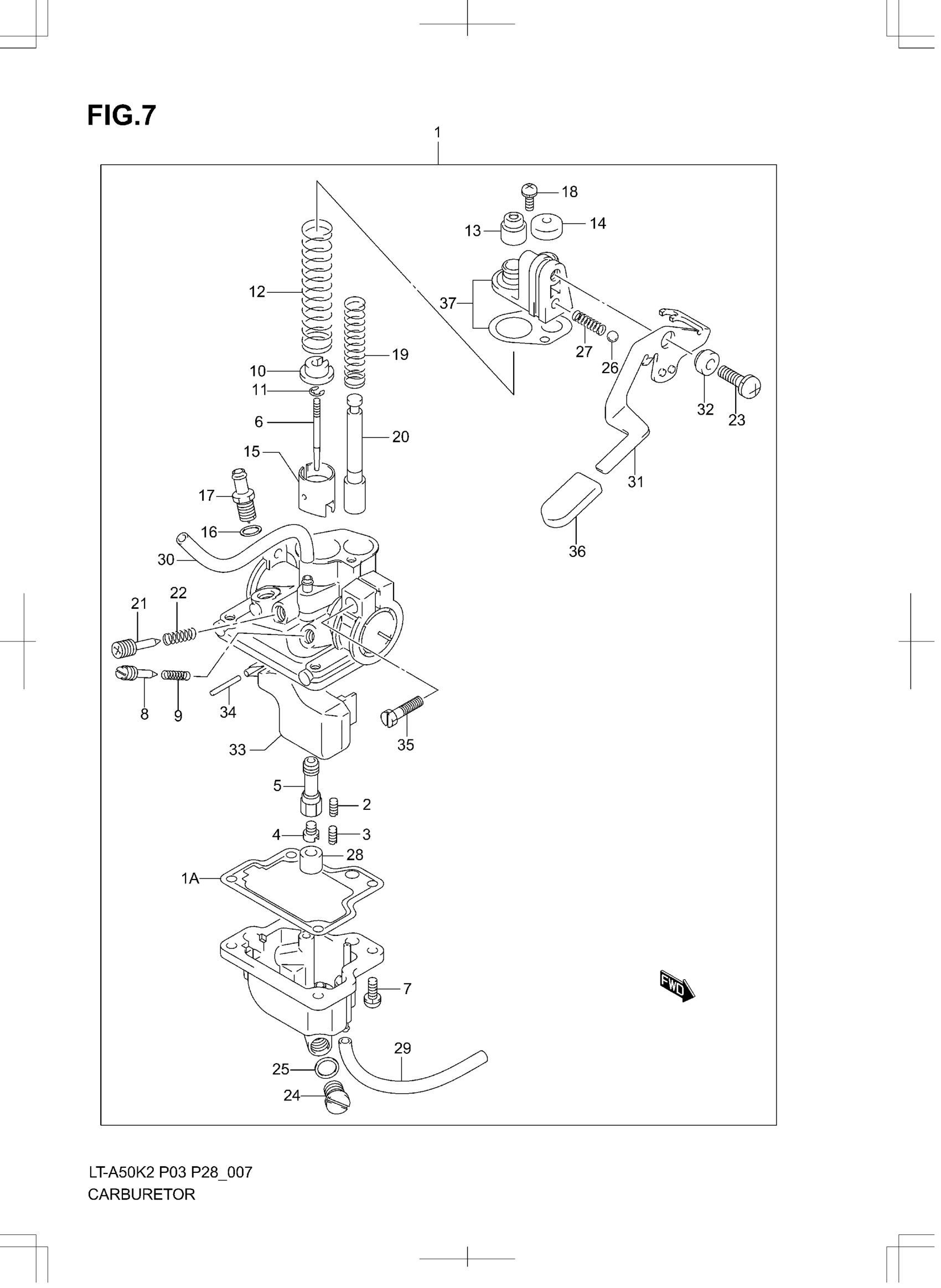

Suzuki LT-A50 (2005) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 1A - 37 This part replaces 13200-43F00.

13200-43F01

$156.40

1A

GASKET, FLOAT CHAMBER

13251-43F00

$7.95

2

JET, PILOT NO.1 (15)

09492-15015

$16.78

3

JET, PILOT NO.2 (0.38)

09492-15009

$9.85

4

JET, MAIN (55.0)

09491-55004

$11.38

5

JET, NEEDLE (E-6)

09494-00380

$25.33

6

NEEDLE, JET (3E3-4)

13383-19010

$16.00

7

SCREW This part replaces 02112-34123.

02112-3412B

$2.30

8

SCREW, THROTTLE STOP

13267-01010

$7.73

9

SPRING, STOP SCREW

13268-01010

$5.28

10

SEAT, THROTTLE VALVE SPRING

13387-04430

$7.22

11

CLIP, NEEDLE

13394-40D00

$5.43

12

SPRING, THROTTLE VALVE

13573-27630

Unavailable

13

.CAP This part replaces 13681-04010.

13681-04011

$4.93

14

CAP, STARTER

13682-98010

$3.05

15

VALVE, THROTTLE (CA:3.0)

13551-43F00

Unavailable

16

GASKET, VALVE SEAT

13663-31010

$2.80

17

VALVE, NEEDLE

13370-04110

$23.83

18

SCREW

13601-04108

$3.68

19

SPRING, STARTER VALVE

13417-18630

$6.00

20

VALVE, STARTER

13411-04410

$16.87

21

SCREW, PILOT AIR (1,1/8)

13269-04010

$13.67

22

SPRING

13268-01010

$5.28

23

SCREW

13601-06128

$3.53

24

PLUG, DRAIN

13247-05010

$5.11

25

GASKET, DRAIN PLUG

13249-05010

$1.98

26

BALL

13435-33110

$2.14

27

SPRING

13434-30650

$3.59

28

HOSE(4.5X8.5X60 | L:600!6.5 This part replaces 09355-45855-600.

09355-45001-600

$9.48

29

.HOSE (3X5X600) | L:600!175 This part replaces 09352-30503-600.

09352-30504-600

$4.91

30

.HOSE (3X5X600) | L:600!200 This part replaces 09352-30503-600.

09352-30504-600

$4.91

31

LEVER, STARTER

13413-43F00

$19.72

32

RING

13424-30650

$5.32

33

FLOAT

13252-04011

$23.83

34

PIN

13254-04010

$4.35

35

BOLT

13323-04010

$2.63

36

CAP, LEVER

13416-28700

$6.00

37

TOP ASSY

13261-04410

$30.95
