2010 Suzuki LT-A450XK7 Throttle Body Diagram

← All diagrams

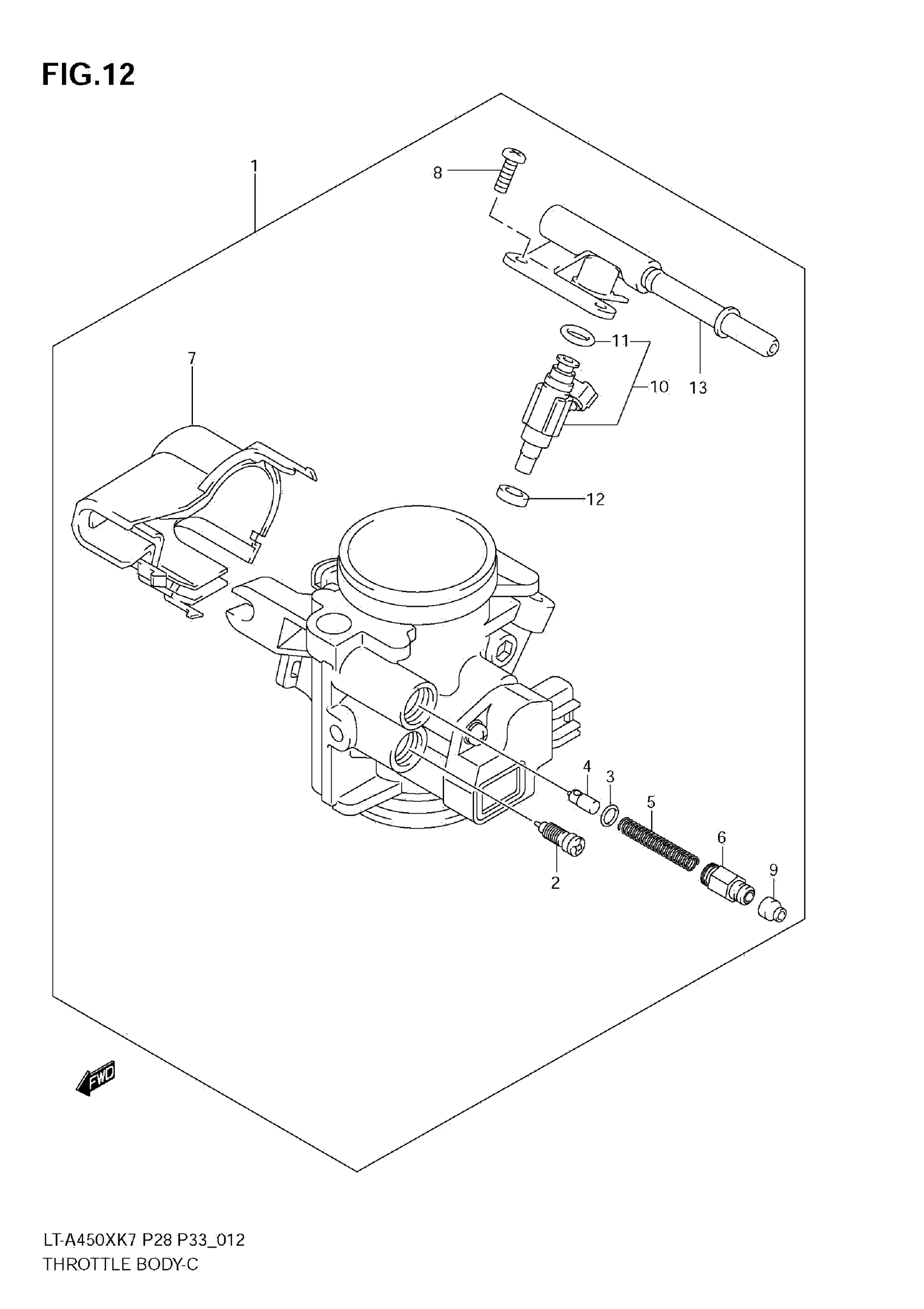

Find the part on the Throttle Body diagram for your 2010 Suzuki LT-A450XK7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki LT-A450XK7 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROT This part replaces 13400-11H00.

13400-11H02

1
Out of stock

2

ADJUSTER ASSY

13269-11H00

1
Out of stock

3

1

$2.01

In stock

4

PLUNGER

13411-11H00

1
Out of stock

5

SPRING

13417-07F00

1

$7.20

In stock

6

GUIDE HOLDER

13418-07G10

1
Out of stock

7

COVER

13578-31G00

1
Out of stock

8

SCREW

13602-06128

2
Out of stock

9

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

10

INJECTOR ASSY, FUEL

15710-11H00

1
Out of stock

11

O RING

15717-16G00

1
Out of stock

12

SEAL

15722-29G00

1
Out of stock

13

DELIVERY PIPE

15731-31G00

1
Out of stock
