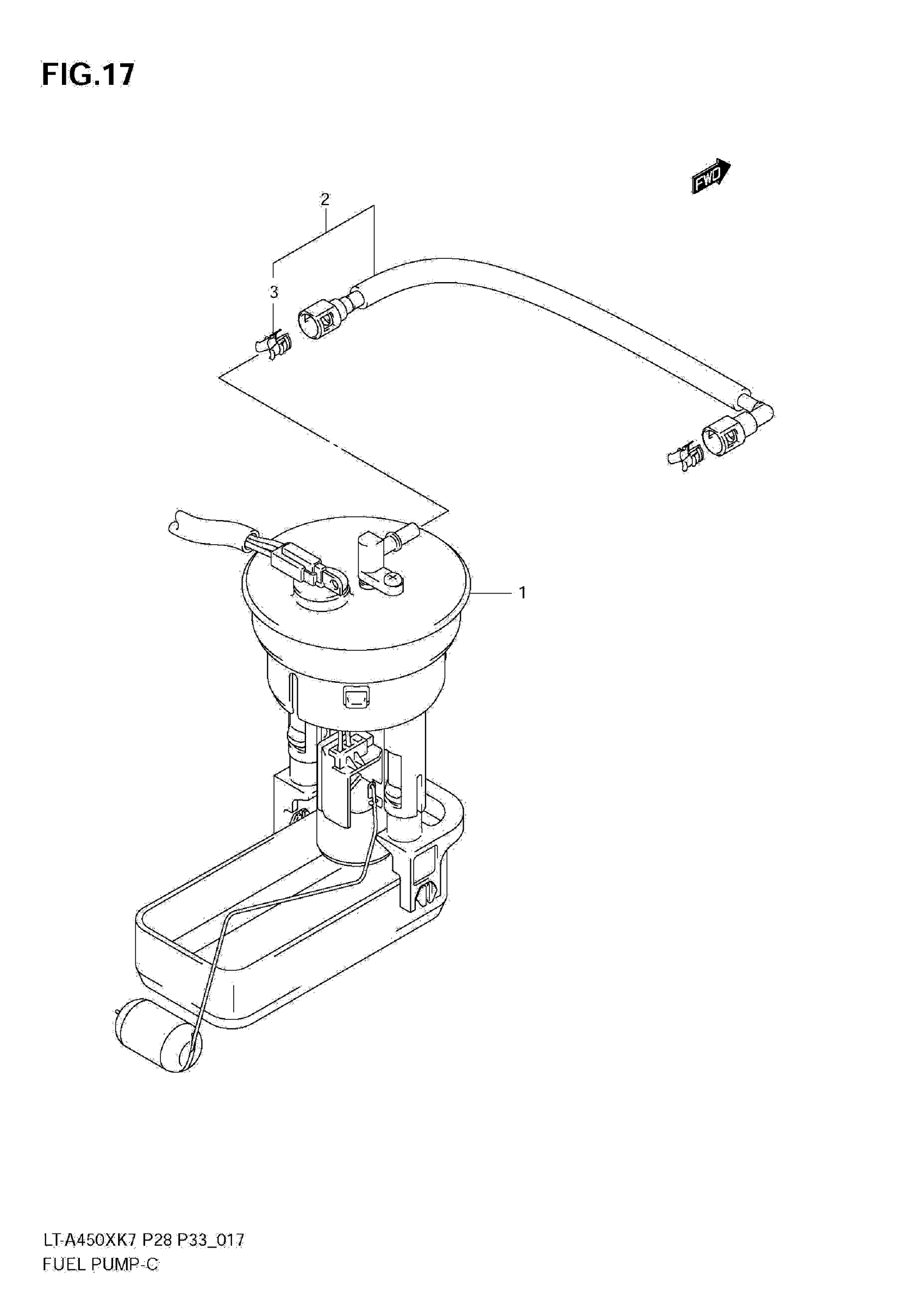

Find the part on the Fuel Pump diagram for your 2010 Suzuki LT-A450XK7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki LT-A450XK7 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL | MODEL K7 This part replaces 15100-31G01.

15100-31G04

1
Out of stock

1

PUMP ASSY, FUEL | MODEL K8/K9/L0 This part replaces 15100-31G20.

15100-31G31

1
Out of stock

2

HOSE, FUEL This part replaces 15810-31G00.

15810-31G03

1
Out of stock

3

RETAINER

15815-35F00

2
Out of stock
