2010 Suzuki LT-A450XK7 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2010 Suzuki LT-A450XK7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

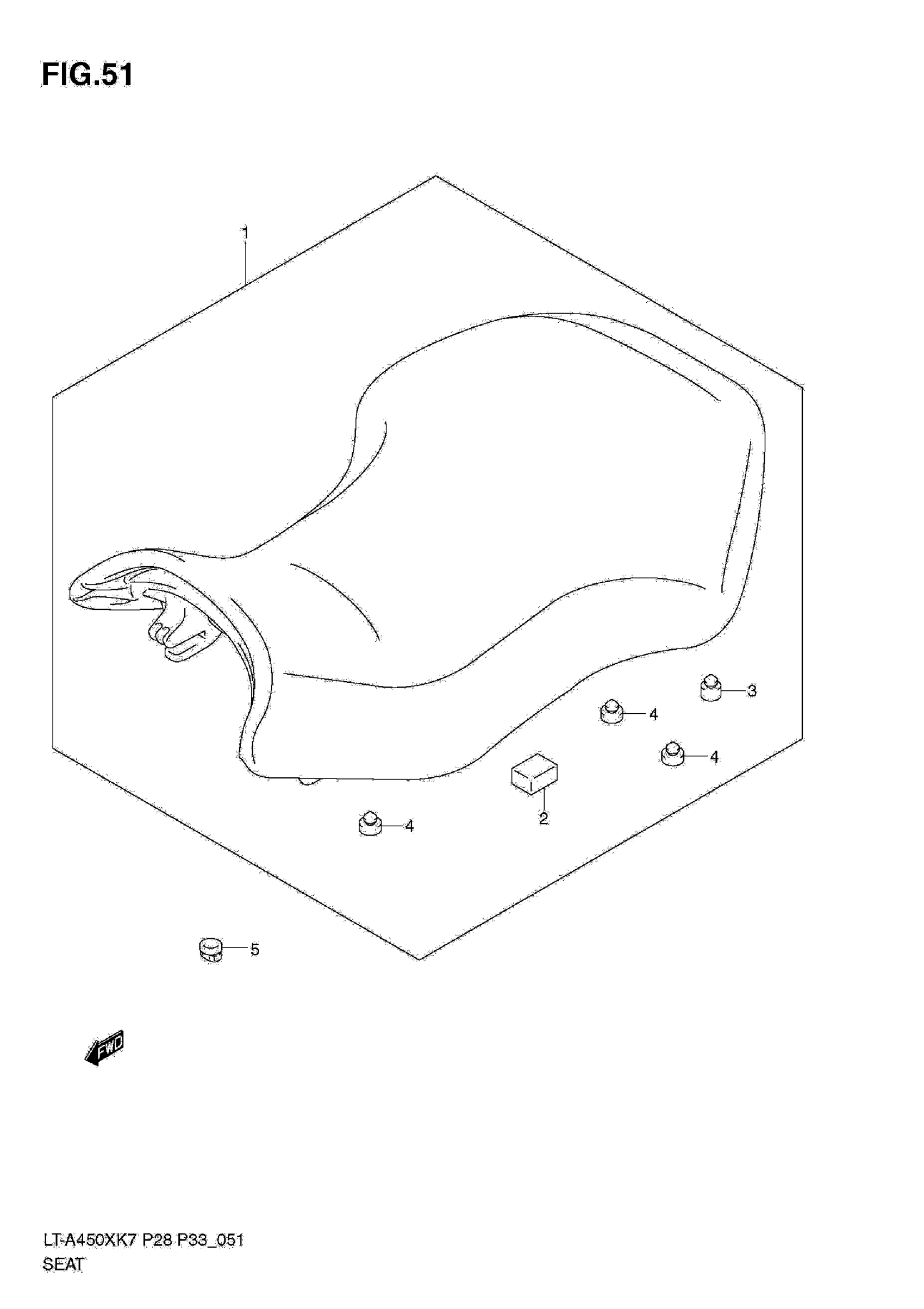

2010 Suzuki LT-A450XK7 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | MODEL K7/K8 This part replaces 45100-31G11-U3F.

45100-31G22-P21

1
Out of stock

1

SEAT ASSY | MODEL K9/L0 This part replaces 45100-31G20-U3F.

45100-31G22-P21

1
Out of stock

2

CUSHION

45146-31G10

1
Out of stock

3

CUSHION

45149-31G00

2
Out of stock

4

CUSHION

45149-31G10

8
Out of stock

5

CUSHION,SEAT MOUNT FRONT

45141-21G00

2
Out of stock
