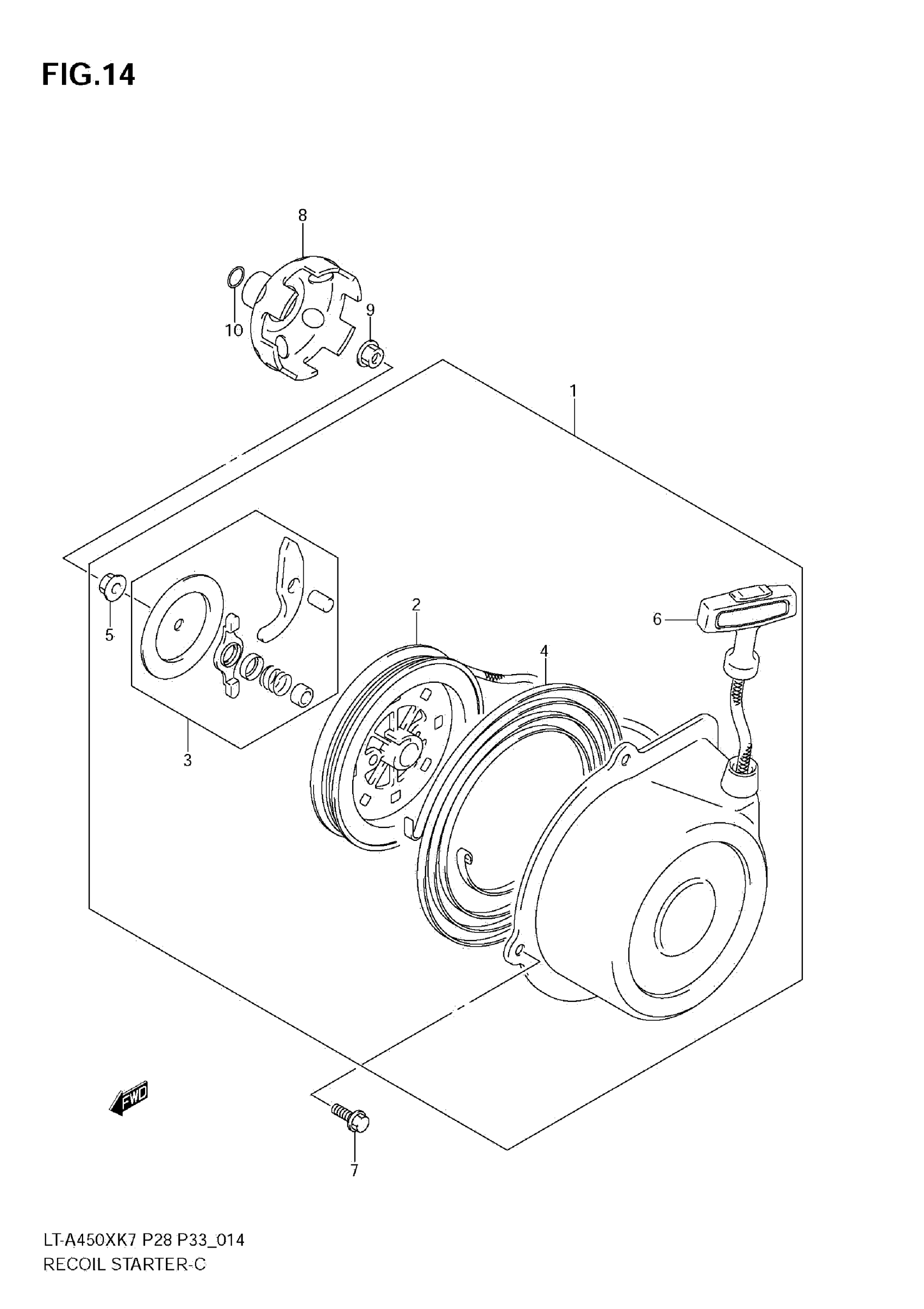

Suzuki LT-A450XK7 (2010) RECOIL STARTER (MODEL K7/K8/K9) Diagram

#

Description
Price

1

STARTER ASSY,RECOIL

18100-24503

$210.26

2

REEL

18120-24500

Unavailable

3

RATCHET SET

18130-24400

$22.50

4

.SPRING,SPIRAL

18142-24400

$27.09

5

NUT

08316-1006B

$2.50

6

ROPE ASSY

18200-24501

$35.90

7

BOLT

09103-06236

$2.71

8

CUP,STARTER

18410-09F02

$86.98

9

NUT

08316-1010B

$2.65

10

O RING (D:1.9,ID:12.6)

09280-12009

$2.87
