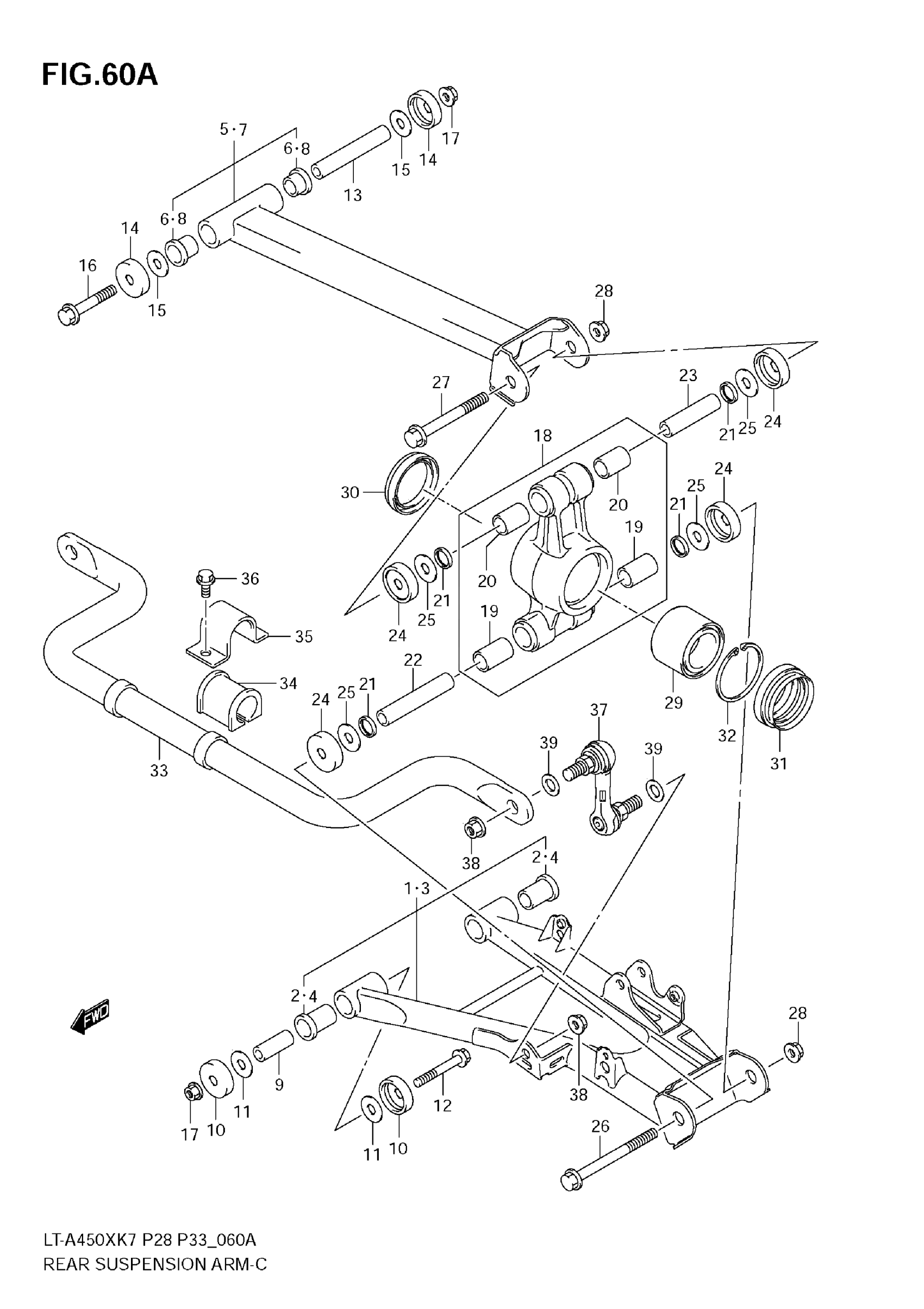

Suzuki LT-A450XK7 (2010) REAR SUSPENSION ARM (MODEL K8/K9/L0) Diagram

#

Description
Price

1

ARM SET, RR SUSPENSION LOWER, R

61510-31810

$148.83

2

BUSH, RR SPNSN ARM LOWER

61551-31G00

$30.48

3

ARM SET, RR SUSPENSION LOWER, L

61520-31810

$143.35

4

BUSH, RR SPNSN ARM LOWER

61551-31G00

$30.48

5

ARM SET, RR SUSPENSION UP, RH This part replaces 61530-31820.

61530-31830

$223.92

6

BUSH, RR SPNSN ARM UPPER

51236-40B00

$19.07

7

ARM SET, RR SUSPENSION UP, LH This part replaces 61540-31820.

61540-31830

$219.68

8

BUSH, RR SPNSN ARM UPPER

51236-40B00

$19.07

9

SPACER, RR SPNSN ARM LOWER

61552-31G10

$15.68

10

SEAL, RR SPNSN ARM LOWER

51255-18900

$4.48

11

WASHER, RR SPNSN ARM LOWER

08211-10281

$2.03

12

BOLT, RR SPNSN ARM LOWER (10X70)

09103-10392

$4.90

13

SPACER, RR SPNSN ARM UPPER

61554-31G00

$19.66

14

SEAL, RR SPNSN ARM UPPER

51255-31G00

$16.82

15

WASHER, RR SPNSN ARM UPPER

08211-10281

$2.03

16

BOLT, RR SPNSN ARM UPPER (10X120)

09103-10388

$5.78

17

NUT, RR SPNSN ARM PIVOT

09159-10115

$3.55

18

KNUCKLE SET, RR SUSPENSION

61600-11820

$331.25

19

BUSH, RR KNUCKLE

51236-31G00

$16.84

20

BUSH, RR KNUCKLE UPPER

61551-31G10

$12.63

21

SEAL, RR KNUCKLE INNER

52454-45G00

$7.44

22

SPACER, RR KNUCKLE LOWER

61554-31G00

$19.66

23

SPACER, RR KNUCKLE UPPER

61553-31G10

$20.80

24

SEAL, RR KNUCKLE DUST

51255-18900

$4.48

25

WASHER, RR KNUCKLE

08211-10281

$2.03

26

BOLT, RR KNUCKLE LOWER (10X120)

09103-10388

$5.78

27

BOLT, RR KNUCKLE UPPER (10X96)

09103-10387

$7.58

28

NUT, RR KNUCKLE

09159-10115

$3.55

29

BEARING, RR HUB This part replaces 43440-84F00.

43440-58J01

$72.80

30

SEAL, REAR HUB INNER DUST

61615-31G00

$20.96

31

SEAL, REAR HUB OUTER DUST

61616-31G00

$18.59

32

CLIP, HUB BEARING

08331-4162A

$3.89

33

BAR, RR STABILIZER

61651-31G10

$219.12

34

BUSH, RR STABILIZER | MODEL K8/K9 This part replaces 61652-31G10.

61652-34K00

$7.22

34

BUSH, RR STABILIZER | MODEL L0 This part replaces 61652-31G20.

61652-34K00

$7.22

35

PLATE, RR STABILIZER

42415-66D00

$10.48

36

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

37

JOINT, RR STABILIZER | MODEL K8/K9 This part replaces 61660-31G10.

61660-31G20

$78.81

37

JOINT, RR STABILIZER | MODEL L0

61660-31G20

$78.81

38

NUT, RR STABILIZER JOIN | MODEL K8/K9

08319-3110B

$3.87

38

NUT, RR STABILIZER JOIN | MODEL L0

09159-10223

$4.37

39

WASHER, RR STABILIZER | MODEL K8/K9

09160-10039

$2.26

39

WASHER, RR STABILIZER | MODEL L0

09160-10039

$2.26
