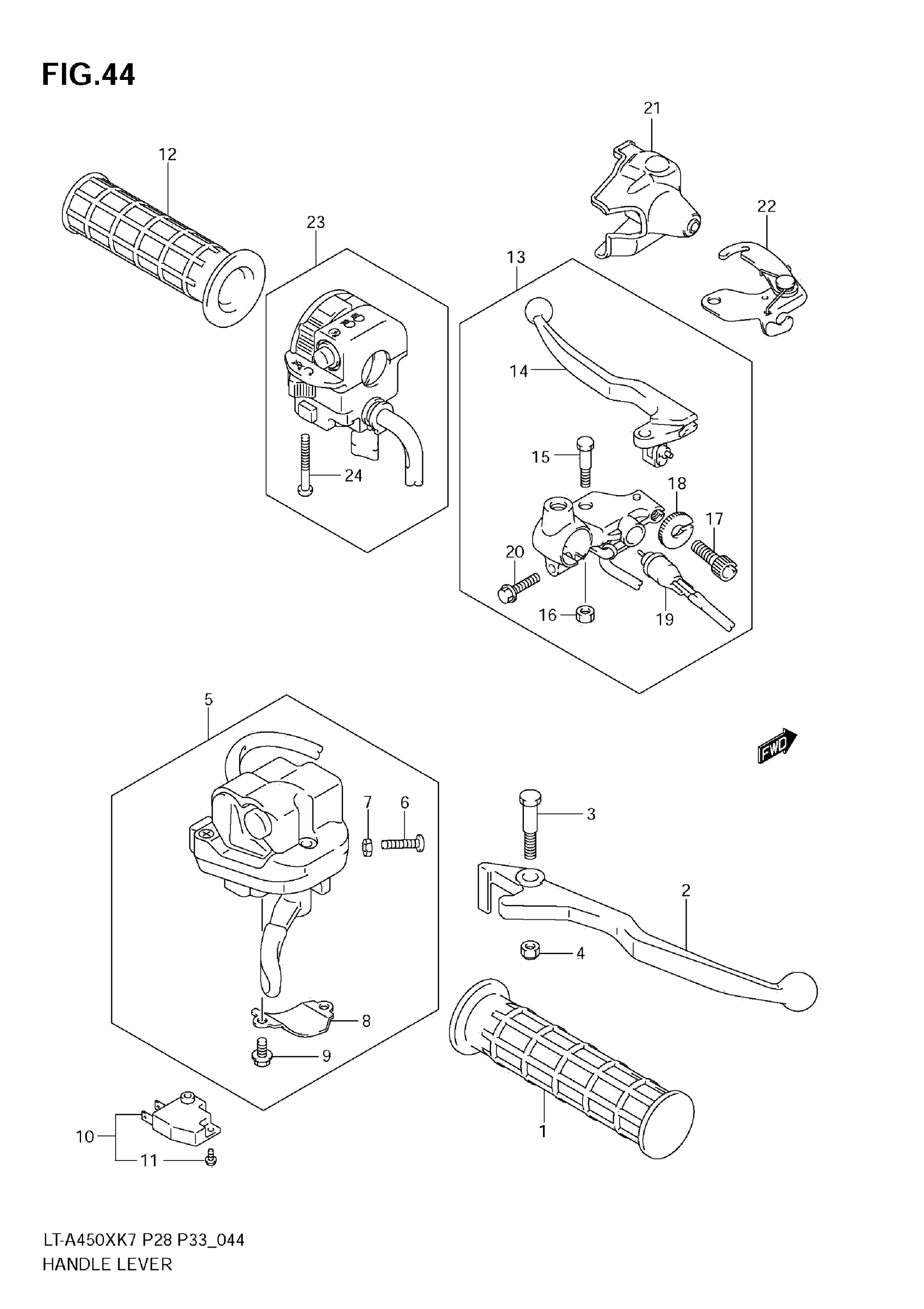

Find the part on the Handle Lever diagram for your 2010 Suzuki LT-A450XK7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki LT-A450XK7 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

57211-21G10

1
Out of stock

2

LEVER,FRONT BRAKE

57421-39D20

1
Out of stock

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

1
Out of stock

4

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

5

1

$289.02

In stock

6

SCREW

02112-0520B

1
Out of stock

7

NUT This part replaces 08310-0005B.

08310-0005A

1
Out of stock

8

HOLDER

57126-07G00

1
Out of stock

9

BOLT

57127-07G00

2
Out of stock

10

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

1
Out of stock

11

SCREW

57465-17C00

1
Out of stock

12

GRIP

57211-21G10

1
Out of stock

14

1

$53.18

In stock

14

.LEVER SET,BRAKE | MODEL K9/L0

57620-27820

1
Out of stock

15

.BOLT,PIVOT

57431-09F00

1
Out of stock

16

NUT

08319-2106B

1
Out of stock

17

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

18

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

19

1

$77.42

In stock

20

..BOLT

01547-0620B

1
Out of stock

21

COVER,BRAKE LEVER This part replaces 57541-38FA0.

57541-38FA1

1
Out of stock

22

.STOPPER,BRAKE LEVER

57790-38FA0

1
Out of stock

23

SWITCH ASSY, LH

37400-11H00

1

$209.15

In stock

24

SCREW

02112-0535B

2
Out of stock
