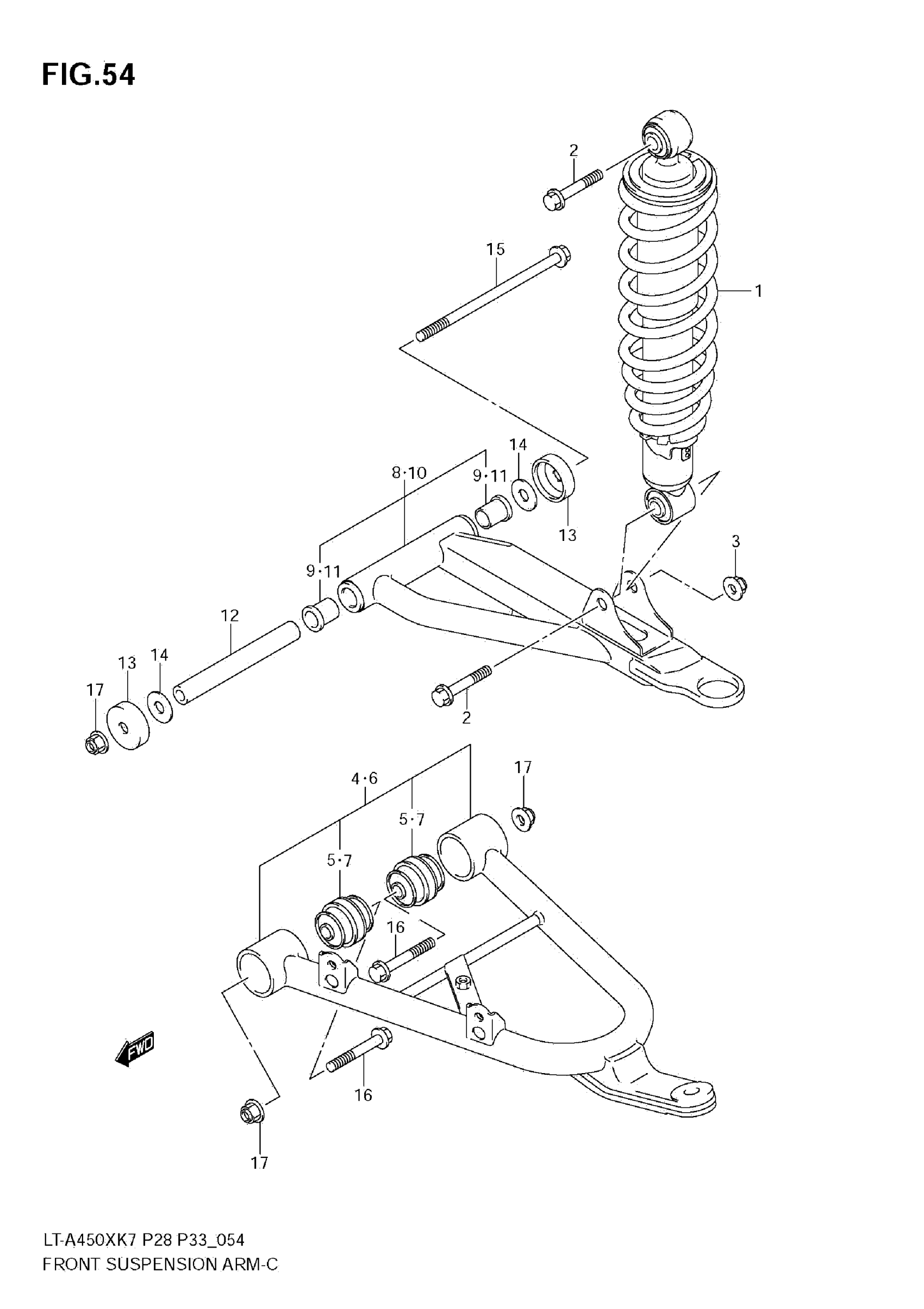

Suzuki LT-A450XK7 (2010) FRONT SUSPENSION ARM (MODEL K7) Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK

52100-11H00-019

$250.30

2

BOLT (10X48)

09103-10126

$4.07

3

NUT | LOWER

09159-10115

$3.21

4

ARM SET, SUSPENSION LOWER RH

52410-31820

$346.68

5

BUSH (10X35.1X38)

09319-10055

$19.25

6

ARM SET, SUSPENSION LOWER LH

52420-31820

$343.47

7

BUSH (10X35.1X38)

09319-10055

$19.25

8

ARM SET, SUSPENSION UPPER RH

52430-31810

$536.77

9

BUSH

51236-40B00

$17.46

10

ARM SET, SUSPENSION UPPER LH

52440-31810

$549.43

11

BUSH

51236-40B00

$17.46

12

SPACER, FR SUSPENSION ARM

52455-31G10

$25.62

13

SEAL, FR SUSPENSION ARM PIVOT

51255-18900

$4.09

14

WASHER

08211-10281

$2.06

15

BOLT, SUSPENSION UPPER (10X160)

09103-10389

$9.21

16

BOLT, SUSPENSION LOWER (10X57)

09103-10255

$8.47

17

NUT

09159-10115

$3.21
