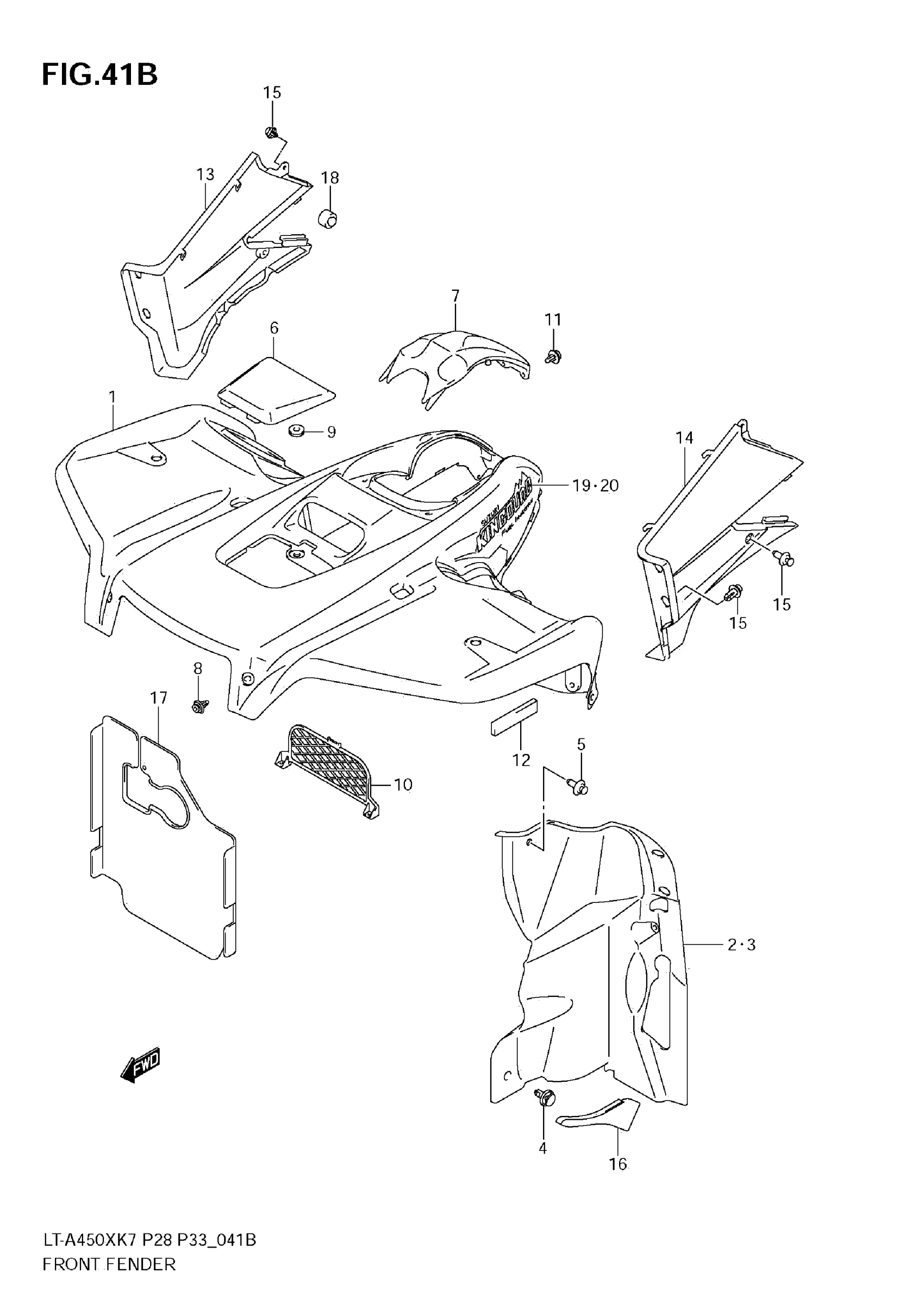

Suzuki LT-A450XK7 (2010) FRONT FENDER (MODEL L0) Diagram

FENDER, FRONT (RED) This part replaces 53111-31G02-YT9.

53111-31G13-YT9

$402.18

FENDER,FRT(BLUE This part replaces 53111-31G02-YPW.

53111-31G13-YPW

$437.18

FENDER, FRONT (GREEN) This part replaces 53111-31G02-YLG.

53111-31G03-YLG

$310.82

FENDER, FRONT (CAMOUFLAGE) This part replaces 53111-31GC2-YVA.

53111-31GC3-YVA

Unavailable

MUDFLAP, INNER RH

53411-31G02

$31.08

MUD FLAP,FENDER This part replaces 53421-31G01.

53421-31G03

$23.35

CLIP

09409-08335

$2.47

CLIP

09409-07333

$2.31

LID, FENDER FRONT (RED) This part replaces 53341-31G00-YT9.

53341-31G06-YT9

$10.61

LID,FENDER FRONT (BLUE) This part replaces 53341-31G00-YPW.

53341-31G06-YPW

$48.30

LID, FENDER FRONT (GREEN) This part replaces 53341-31G00-YLG.

53341-31G06-YLG

$10.28

LID,FR FENDER This part replaces 53341-31GC0-YVA.

53341-31GC3-YVA

Unavailable

FENDER,CENTER This part replaces 53119-31G01-YT9.

53119-31G05-YT9

$22.24

FENDER, CENTER (BLUE) This part replaces 53119-31G01-YPW.

53119-31G02-YPW

$42.17

FENDER,CENTER This part replaces 53119-31G01-YLG.

53119-31G05-YLG

$25.60

FENDER, CENTER (CAMOUFLAGE) This part replaces 53119-31GC1-YVA.

53119-31GC2-YVA

Unavailable

CLIP

09409-08335

$2.47

CUSHION

09320-08018

$3.04

COVER,INNER This part replaces 53212-31G00.

53212-31G03

$15.23

CLIP

09409-08335

$2.47

CUSHION, FENDER SIDE

53145-07G01

$8.13

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$42.81

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$95.93

CLIP

09409-08335

$2.47

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$15.47

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$30.10

CUSHION

09321-10019

$4.90

EMBLEM,FR FENDE This part replaces 68151-31G50-ETA.

68151-31GC1-EFG

$47.82

EMBLEM,LH This part replaces 68152-31G50-ETA.

68152-31GC1-EFG

$47.82
