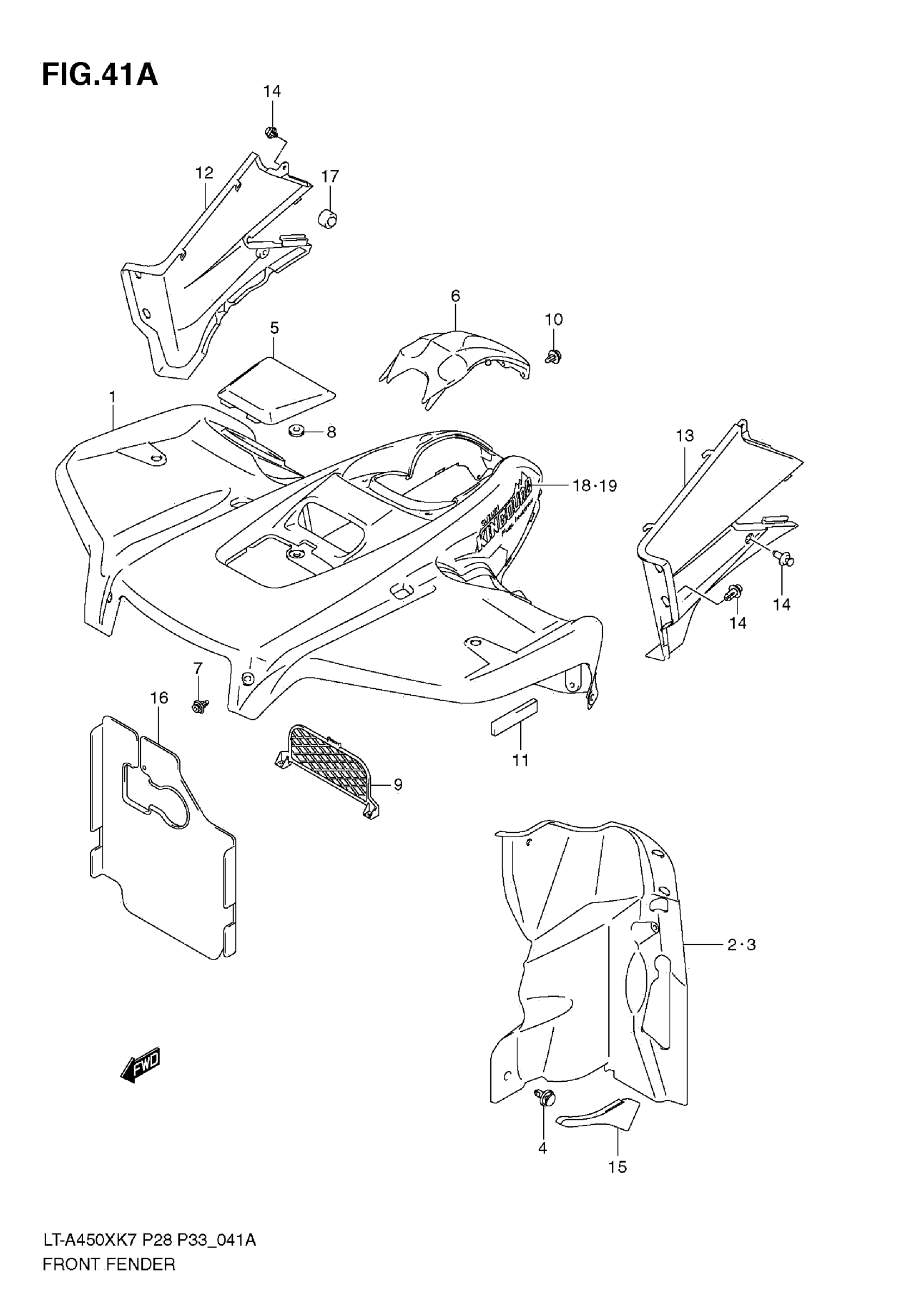

Suzuki LT-A450XK7 (2010) FRONT FENDER (MODEL K9) Diagram

#

Description
Price

1

FENDER, FRONT (RED) This part replaces 53111-31G01-YT9.

53111-31G13-YT9

$402.18

1

FENDER, FRONT (BLACK) This part replaces 53111-31G01-YLZ.

53111-31G03-YLZ

$303.45

1

FENDER, FRONT (GREEN) This part replaces 53111-31G01-YLG.

53111-31G03-YLG

$310.82

1

NO DESCRIPTION AVAILABLE | E28 This part replaces 53111-31GC1-YKL.

53111-31GC3-YKL

Unavailable

1

FENDER, FRONT (CAMOUFLAGE) This part replaces 53111-31GC1-YVA.

53111-31GC3-YVA

Unavailable

1

FENDER, FRONT (YELLOW) | E28 This part replaces 53111-31G01-YU1.

53111-31G03-YU1

$168.83

1

NO DESCRIPTION AVAILABLE | LT-A450XZ This part replaces 53111-31G20-YUW.

53111-31G32-YUW

Unavailable

2

MUDFLAP, FENDER INNER RH This part replaces 53411-31G00.

53411-31G02

$31.08

3

MUD FLAP,FENDER This part replaces 53421-31G00.

53421-31G03

$23.35

4

CLIP

09409-08335

$2.47

5

LID, FENDER FRONT (RED) This part replaces 53341-31G00-YT9.

53341-31G06-YT9

$10.61

5

LID,FENDER FRON This part replaces 53341-31G00-YLZ.

53341-31G05-YLZ

$51.58

5

LID, FENDER FRONT (GREEN) This part replaces 53341-31G00-YLG.

53341-31G06-YLG

$10.28

5

NO DESCRIPTION AVAILABLE | E28 This part replaces 53341-31GC0-YKL.

53341-31GC1-YKL

Unavailable

5

LID,FR FENDER This part replaces 53341-31GC0-YVA.

53341-31GC3-YVA

Unavailable

5

LID,FRONT FENDE | E28 This part replaces 53341-31G00-YU1.

53341-31G04-YU1

$30.33

5

NO DESCRIPTION AVAILABLE | LT-A450XZ This part replaces 53341-31G10-YUW.

53341-31G11-YUW

Unavailable

6

FENDER,CENTER This part replaces 53119-31G00-YT9.

53119-31G05-YT9

$22.24

6

FENDER,CENTER This part replaces 53119-31G00-YLZ.

53119-31G05-YLZ

$24.07

6

FENDER,CENTER This part replaces 53119-31G00-YLG.

53119-31G05-YLG

$25.60

6

FENTER,CENTER(C | E28 This part replaces 53119-31GC0-YKL.

53119-31GC2-YKL

Unavailable

6

FENDER, CENTER (CAMOUFLAGE) This part replaces 53119-31GC0-YVA.

53119-31GC2-YVA

Unavailable

6

FENDER,CENTER | E28 This part replaces 53119-31G00-YU1.

53119-31G03-YU1

$26.62

6

FENDER,CNTR(SP | LT-A450XZ This part replaces 53119-31G11-YUW.

53119-31G12-YUW

Unavailable

7

CLIP

09409-08335

$2.47

8

CUSHION

09320-08018

$3.04

9

COVER,INNER This part replaces 53212-31G00.

53212-31G03

$15.23

10

CLIP

09409-08335

$2.47

11

CUSHION, FENDER SIDE

53145-07G01

$8.13

12

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$42.81

13

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$95.93

14

CLIP

09409-08335

$2.47

15

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$15.47

16

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$30.10

17

CUSHION

09321-10019

$4.90

18

EMBLEM,FR FENDE This part replaces 68151-31G50-ETA.

68151-31GC1-EFG

$47.82

19

EMBLEM,LH This part replaces 68152-31G50-ETA.

68152-31GC1-EFG

$47.82
