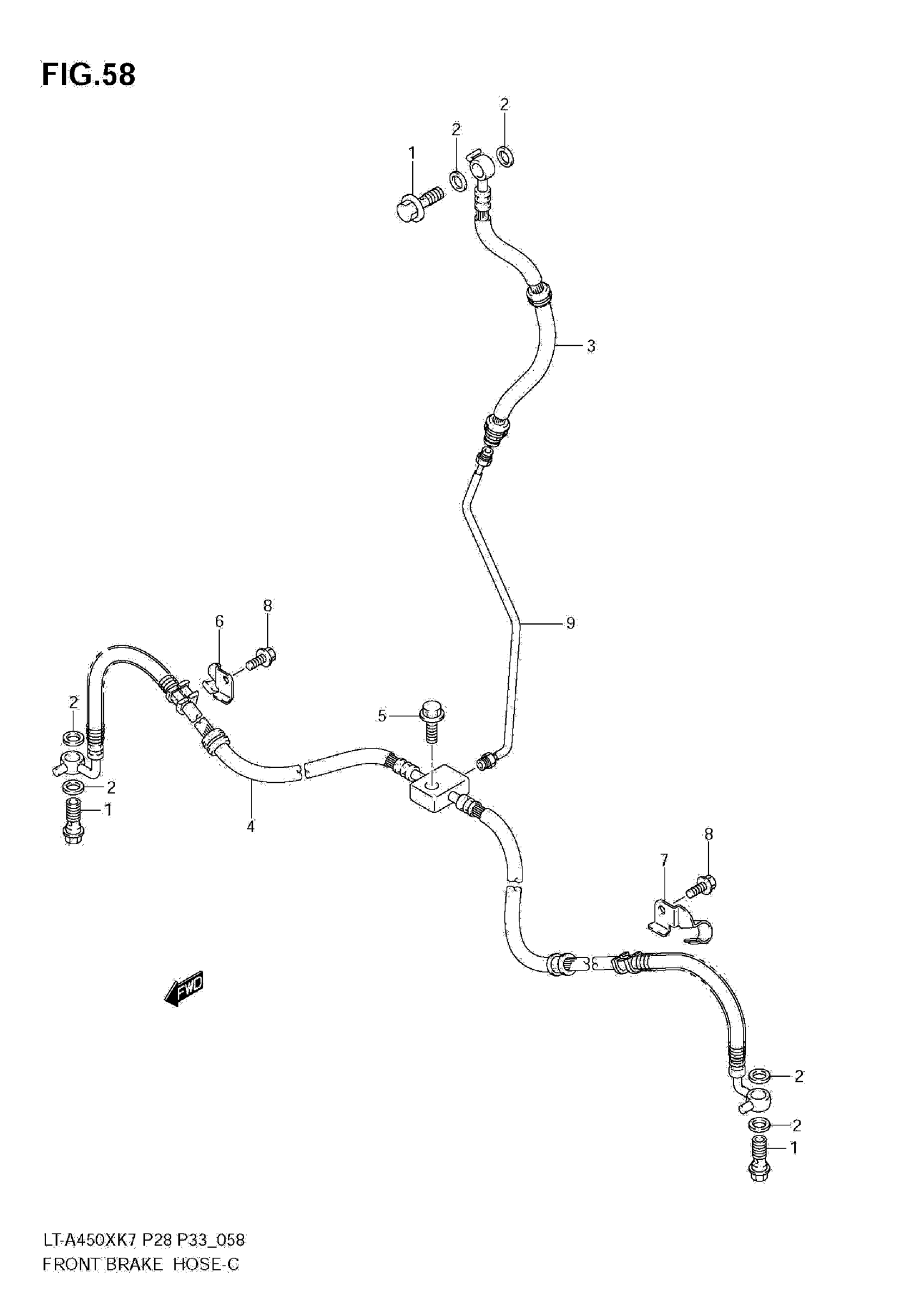

Suzuki LT-A450XK7 (2010) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOLT, UNION

09360-10062

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE, FRONT BRAKE NO.1 This part replaces 59480-31G20.

59480-31G40

$30.08

4

HOSE,COMP,FR BR | MODEL K7/K8/K9 This part replaces 59240-31G20.

59240-31G52

$96.78

4

HOSE,COMP,FR BR | MODEL L0 This part replaces 59240-31G40.

59240-31G52

$96.78

5

BOLT, FR BRAKE HOSE NO.2

01550-0625A

$1.97

6

CLAMP, HOSE NO.2 RH | MODEL K7/K8/K9

59261-38F00

Unavailable

6

CLAMP, HOSE NO.2 RH | MODEL L0

59261-31G00

Unavailable

7

CLAMP, HOSE NO.2 LH | MODEL K7/K8/K9

59271-38F00

$10.95

7

CLAMP, HOSE NO.2 LH | MODEL L0

59271-31G00

$10.58

8

BOLT

01550-0616A

$1.97

9

PIPE, FRONT BRAKE

59250-31G00

$15.97
